/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/Foot Mount, C-Face/01018ET3E215TC-W22 WEG 10HP Severe Duty Electric Motor, 1800RPM

Product ID: 01018ET3E215TC-W22

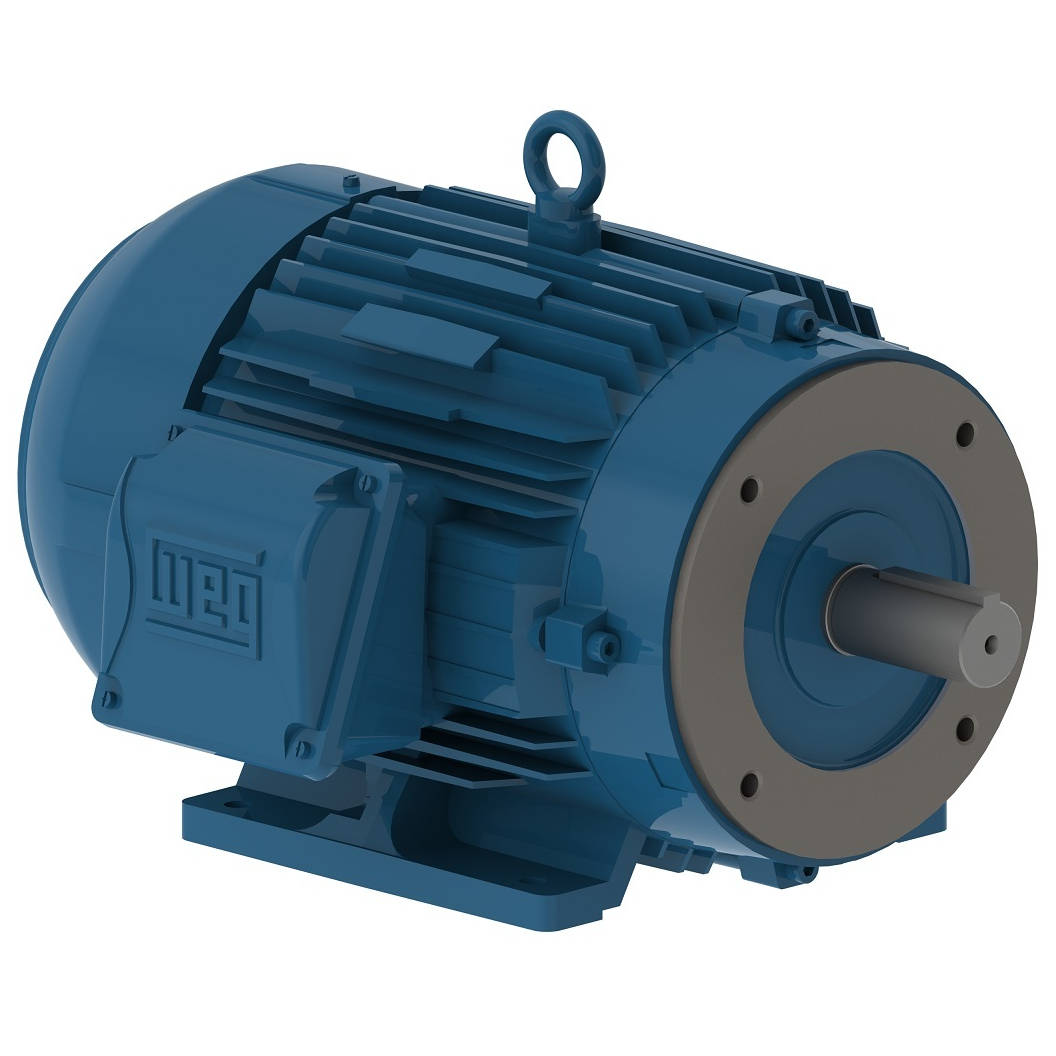

01018ET3E215TC-W22 WEG 10HP Severe Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 01018ET3E215TC-W22

Selected accessories will also be added to cart

$993.75 / Each

Quantity:

IC411 - TEFC, IP55, 213TC/215TC Frame, 230/460VAC 60Hz 3 Phase, 11610354, NEMA Premium Efficiency, Foot Mounted, C-Face, Cast Iron Frame, 1-3/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	213/5TC
Output	10 HP (7.5 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1765 rpm
Slip	1.94 %
Rated voltage	230/460 V
Rated current	24.8/12.4 A
L. R. Amperes	159/79.4 A
LRC	6.4x(Code H)
No load current	11.3/5.65 A
Rated torque	29.8 ft.lb
Locked rotor torque	200 %
Breakdown torque	295 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	1.51 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	58.0 dB(A)
Approx. weight³	179 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.7	91.7

Power factor

50%	75%	100%
0.66	0.77	0.83

Frame	213/5TC
Output	7.5 HP (5.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1465 rpm
Slip	2.33 %
Rated voltage	380 V
Rated current	11.2 A
L. R. Amperes	75.0 A
LRC	6.7x(Code H)
No load current	5.60 A
Rated torque	26.9 ft.lb
Locked rotor torque	200 %
Breakdown torque	300 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	1.51 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	179 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.0	90.0	89.8

Power factor

50%	75%	100%
0.62	0.76	0.83

Frame	213/5TC
Output	7.5 HP (5.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1470 rpm
Slip	2.00 %
Rated voltage	400 V
Rated current	11.0 A
L. R. Amperes	78.1 A
LRC	7.1x(Code J)
No load current	6.00 A
Rated torque	26.8 ft.lb
Locked rotor torque	240 %
Breakdown torque	340 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	1.51 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	179 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.2	89.9	90.1

Power factor

50%	75%	100%
0.58	0.73	0.80

Frame	213/5TC
Output	7.5 HP (5.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1470 rpm
Slip	2.00 %
Rated voltage	415 V
Rated current	10.9 A
L. R. Amperes	81.7 A
LRC	7.5x(Code J)
No load current	6.35 A
Rated torque	26.8 ft.lb
Locked rotor torque	260 %
Breakdown torque	360 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	1.51 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	179 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.7	89.8	90.3

Power factor

50%	75%	100%
0.55	0.70	0.78

Frame	213/5TC
Output	10 HP (7.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1450 rpm
Slip	3.33 %
Rated voltage	380 V
Rated current	15.0 A
L. R. Amperes	76.5 A
LRC	5.1x(Code F)
No load current	5.60 A
Rated torque	36.2 ft.lb
Locked rotor torque	150 %
Breakdown torque	220 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	1.51 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	179 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.3	90.2	88.5

Power factor

50%	75%	100%
0.73	0.82	0.86

Frame	213/5TC
Output	10 HP (7.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1455 rpm
Slip	3.00 %
Rated voltage	400 V
Rated current	14.2 A
L. R. Amperes	79.5 A
LRC	5.6x(Code F)
No load current	6.00 A
Rated torque	36.1 ft.lb
Locked rotor torque	180 %
Breakdown torque	250 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	1.51 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	179 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.3	90.2	89.5

Power factor

50%	75%	100%
0.69	0.80	0.85

Frame	213/5TC
Output	10 HP (7.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1460 rpm
Slip	2.67 %
Rated voltage	415 V
Rated current	13.8 A
L. R. Amperes	82.8 A
LRC	6.0x(Code G)
No load current	6.35 A
Rated torque	36.0 ft.lb
Locked rotor torque	190 %
Breakdown torque	270 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	1.51 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	179 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.3	90.2	90.2

Power factor

50%	75%	100%
0.66	0.78	0.84

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
