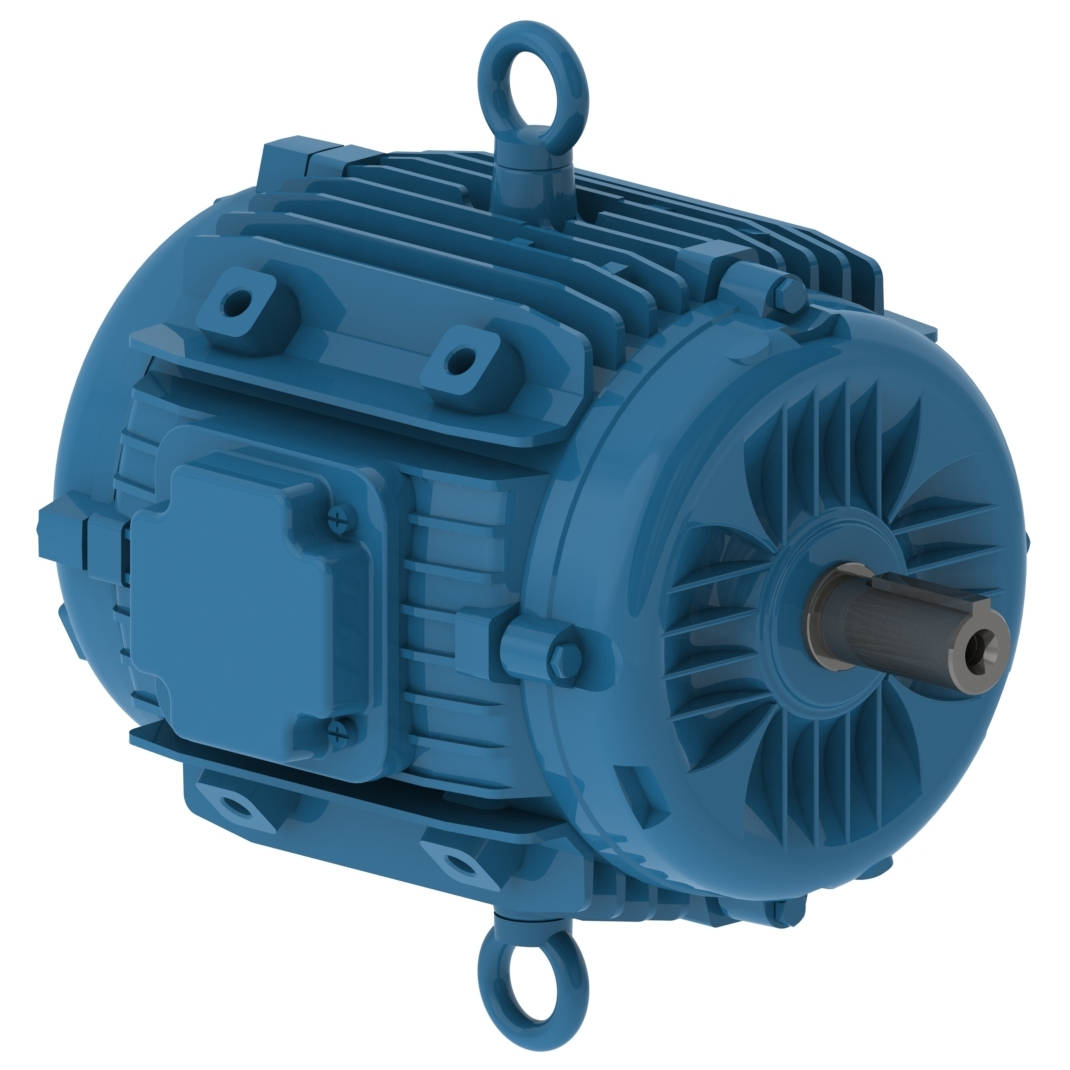

01018ET3EPM213/5Y-W22 WEG 10HP Pad Mount Electric Motor, 1800RPM
Enlarge Photo

Product ID: 01018ET3EPM213/5Y-W2

01018ET3EPM213/5Y-W22 WEG 10HP Pad Mount Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 01018ET3EPM213/5Y-W2

Selected accessories will also be added to cart
$1,290.50 / Each
Quantity:
IC410 - TEAO, IP55, 215YZ Frame, 208-230/460VAC 60Hz 3 Phase, 13582670, NEMA Premium Efficiency, Pad Mounted, Cast Iron Frame, 1-3/8" Keyed Shaft

Electric Motors

Frame215YZ
Output10 HP (7.5 kW)
Number of Poles4
Frequency60 Hz
Rated speed1765 rpm
Slip1.94 %
Rated voltage208-230/460 V
Rated current27.4-24.7/12.4 A
L. R. Amperes175-158/79.4 A
LRC6.4x(Code H)
No load current0.000-11.3/5.65 A
Rated torque29.8 ft.lb
Locked rotor torque200 %
Breakdown torque295 %
Locked rotor time30s (cold) 17s (hot)
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC410 - TEAO
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?179 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.0  91.7  91.7

Power factor

50%75%100%
0.66  0.77  0.83

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector

Bearing details

 Drive EndNon Drive End
Bearing type6308 ZZ  6207 ZZ
SealingV'Ring V'Ring
Lubrication interval0 h 0 h
Lubricant amount0 g 0 g
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
406 lb 584 lb

Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Horsepower
10HP
Enclosure
TEAO
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
215YZ
