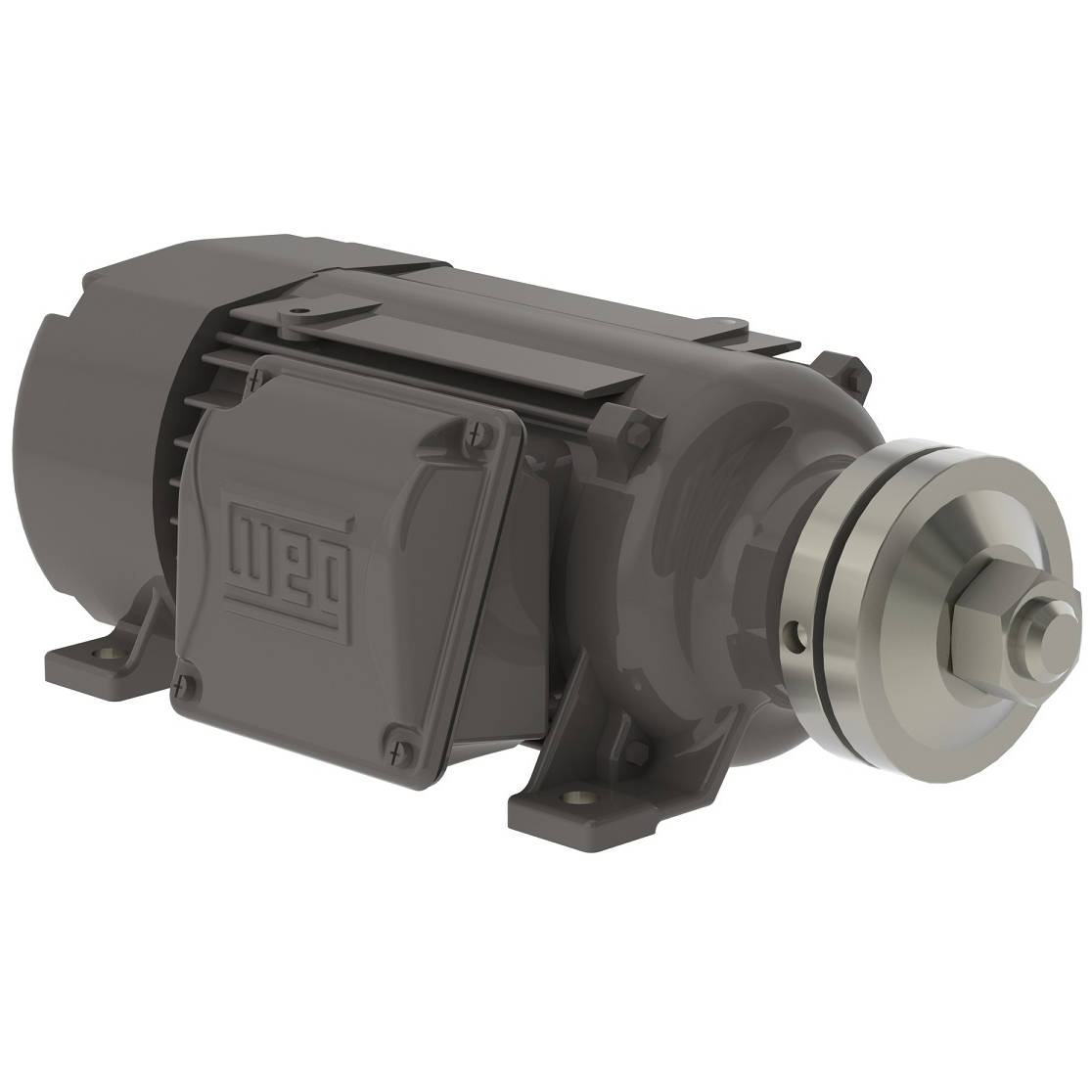

01036ES3ESA90LL WEG 10HP Saw Arbor Electric Motor, 3600RPM
Enlarge Photo

Product ID: 01036ES3ESA90LL

01036ES3ESA90LL WEG 10HP Saw Arbor Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 01036ES3ESA90LL

Selected accessories will also be added to cart
$1,738.17 / Each
Quantity:
IC411 - TEFC, IP54, 90L/MS Frame, 208-230/460VAC 60Hz 3 Phase, 13574453, M30x3.5mm LH Thread

Electric Motors

Frame90L/MS
Output10 HP (7.5 kW)
Number of Poles2
Frequency60 Hz
Rated speed3480 rpm
Slip3.33 %
Rated voltage208-230/460 V
Rated current27.2-24.6/12.3 A
L. R. Amperes231-209/105 A
LRC8.5
No load current0.000-8.99/4.50 A
Rated torque15.1 ft.lb
Locked rotor torque400 %
Breakdown torque420 %
Locked rotor time12s (cold) 7s (hot)
DesignN
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleS6
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP54
EnclosureIC411 - TEFC
MountingB3R(D)
Rotation?CW
Noise level?68.0 dB(A)
Approx. weight?166 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
82.0  84.5  85.0

Power factor

50%75%100%
0.77  0.86  0.90

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeRWG(Rp) 1"
Terminal BlockWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 7022 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialAluminum
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Horsepower
10HP
Enclosure
TEFC
Enclosure
TEFC
Input Voltage
208VAC
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
230VAC
Input Voltage
460VAC
Input Voltage
460VAC
Frame
90L/MS
