/Products/Electric Motors/3 Phase Explosion Proof/WEG 3-Phase Explosion Proof Electric Motors/C-Face, Foot Mount/01036XT3E215TC WEG 10HP Explosion Proof Electric Motor, 3600RPM

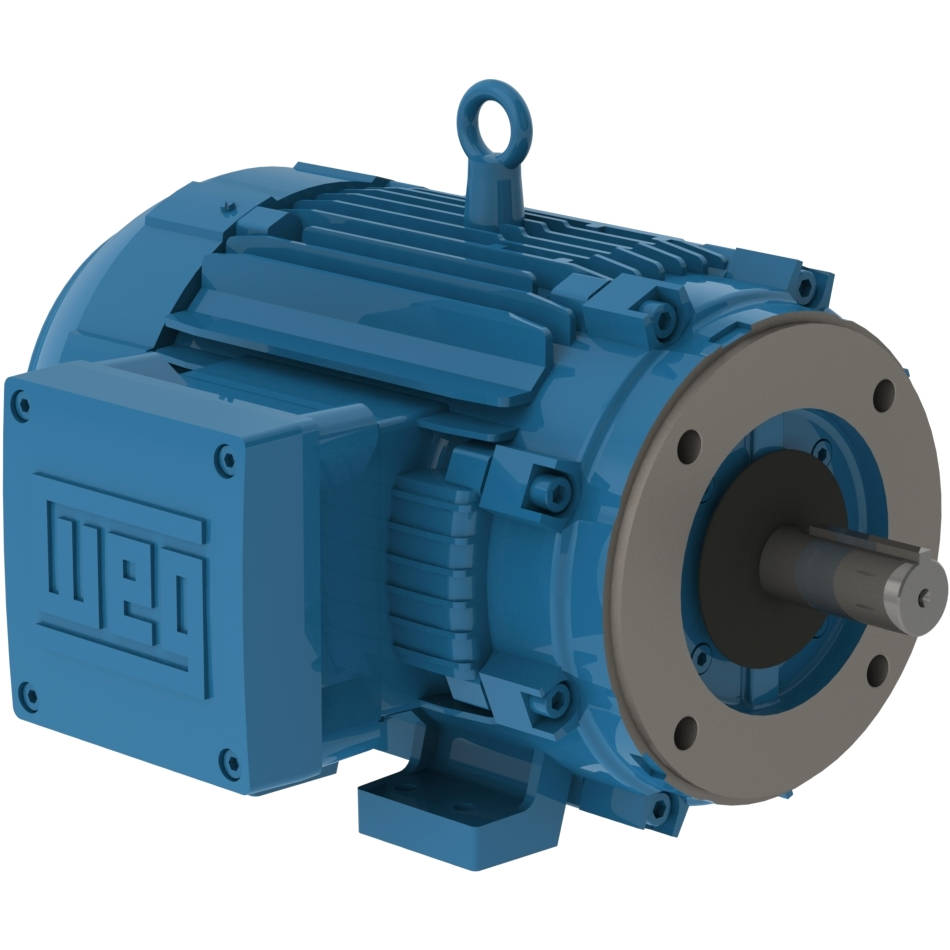

01036XT3E215TC WEG 10HP Explosion Proof Electric Motor, 3600RPM
Enlarge Photo

Product ID: 01036XT3E215TC

01036XT3E215TC WEG 10HP Explosion Proof Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 01036XT3E215TC

Selected accessories will also be added to cart
$1,604.67 / Each
Quantity:
IC411 - TEFC, IP55, 213TC/215TC Frame, 230/460/380VAC 50/60Hz 3 Phase, 14317352, NEMA Premium Efficiency, Foot Mounted, C-Face, Cast Iron Frame

Electric Motors

Frame213/5TC
Output10 HP (7.5 kW)
Number of Poles2
Frequency60 Hz
Rated speed3515 rpm
Slip2.36 %
Rated voltage230/460 V
Rated current23.4/11.7 A
L. R. Amperes161/80.7 A
LRC6.9x(Code H)
No load current6.80/3.40 A
Rated torque14.9 ft.lb
Locked rotor torque210 %
Breakdown torque280 %
Locked rotor time270s (cold) 150s (hot)
Moment of inertia (J)0.5512 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?72.0 dB(A)
Approx. weight?214 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
88.5  90.2  90.2

Power factor

50%75%100%
0.81  0.87  0.89
Frame213/5TC
Output10 HP (7.5 kW)
Number of Poles2
Frequency50 Hz
Rated speed2888 rpm
Slip3.73 %
Rated voltage380 V
Rated current14.1 A
L. R. Amperes88.8 A
LRC6.3x(Code G)
No load current3.30 A
Rated torque18.2 ft.lb
Locked rotor torque150 %
Breakdown torque190 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)0.5512 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?67.0 dB(A)
Approx. weight?214 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
88.5  89.2  88.5

Power factor

50%75%100%
0.85  0.90  0.91
Frame213/5TC
Output10 HP (7.5 kW)
Number of Poles2
Frequency50 Hz
Rated speed2900 rpm
Slip3.33 %
Rated voltage400 V
Rated current13.4 A
L. R. Amperes92.5 A
LRC6.9x(Code H)
No load current3.60 A
Rated torque18.1 ft.lb
Locked rotor torque180 %
Breakdown torque229 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)0.5512 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?67.0 dB(A)
Approx. weight?214 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
88.5  89.2  89.5

Power factor

50%75%100%
0.82  0.88  0.90
Frame213/5TC
Output10 HP (7.5 kW)
Number of Poles2
Frequency50 Hz
Rated speed2910 rpm
Slip3.00 %
Rated voltage415 V
Rated current13.0 A
L. R. Amperes89.7 A
LRC6.9x(Code H)
No load current3.80 A
Rated torque18.0 ft.lb
Locked rotor torque200 %
Breakdown torque260 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)0.5512 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?67.0 dB(A)
Approx. weight?214 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
88.5  89.5  90.1

Power factor

50%75%100%
0.81  0.87  0.89

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 202P (ISO 12944 - C4)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Winding thermal protectionThermostat - 2 wires 1 per phase 155?C
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Horsepower
10HP
Enclosure
TEFC
Frame
213TC
Frame
215TC
