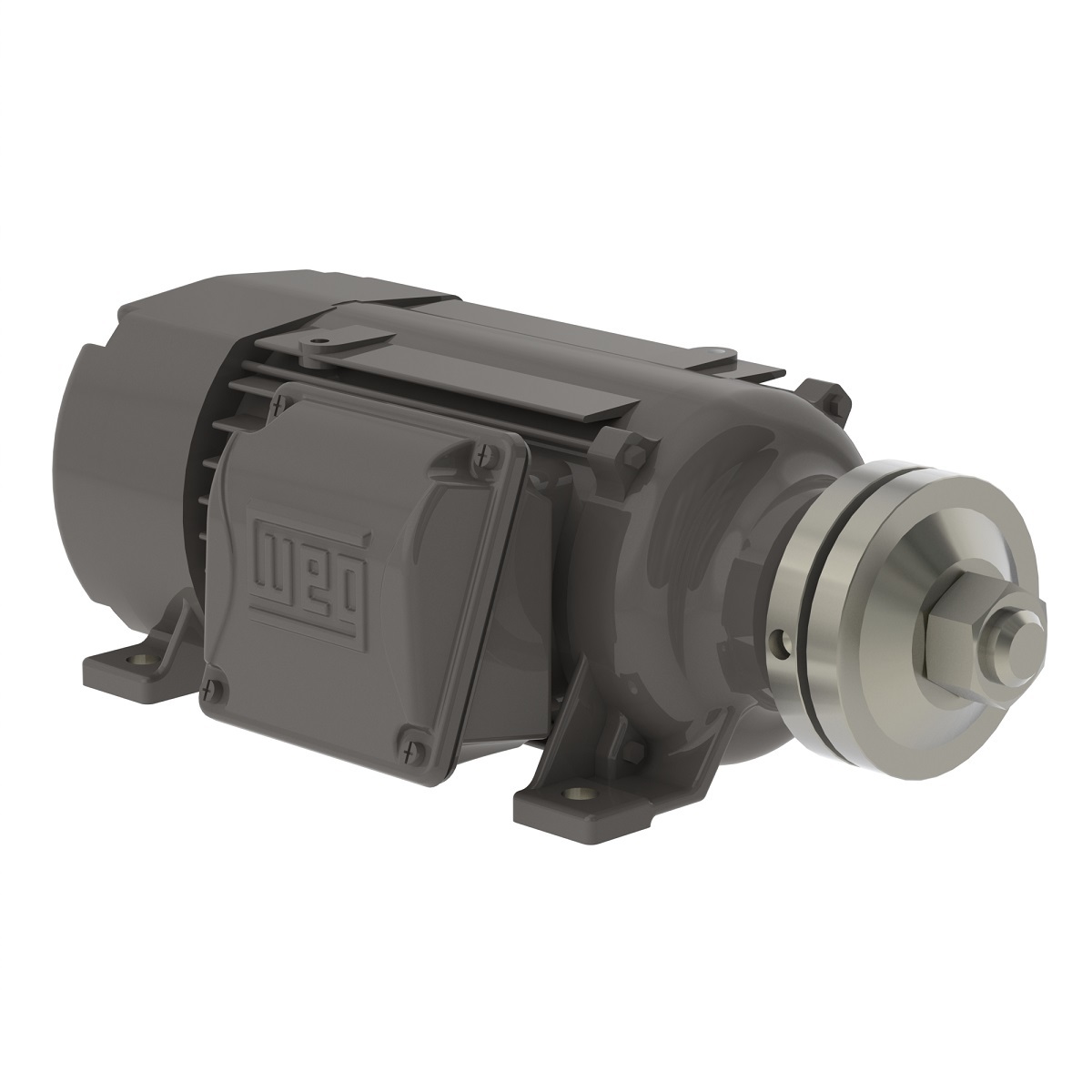

01036ES3ESA90LR WEG 10HP Saw Arbor Electric Motor, 3600RPM
Enlarge Photo

Product ID: 01036ES3ESA90LR

01036ES3ESA90LR WEG 10HP Saw Arbor Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 01036ES3ESA90LR

Selected accessories will also be added to cart
$1,738.17 / Each
Quantity:
IC411 - TEFC, IP54, 90L Frame, 208-230/460V 3-Phase 60Hz, Right Hand Thread, 13574454

Electric Motors

Frame 90L/MS
Output 10 HP (7.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3480 rpm
Slip 3.33 %
Rated voltage 208-230/460 V
Rated current 27.2-24.6/12.3 A
L. R. Amperes 231-209/105 A
LRC 8.5
No load current 0.000-8.99/4.50 A
Rated torque 14.9 ft.lb
Locked rotor torque 400 %
Breakdown torque 420 %
Locked rotor time 12s (cold) 7s (hot)
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S6
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP54
Enclosure IC411 - TEFC
Mounting B3R(D)
Rotation¹ CCW
Noise level² 68.0 dB(A)
Approx. weight³ 168 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
82.0  84.5  85.0

Power factor

50% 75% 100%
0.77  0.86  0.90

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole RWG(Rp) 1"
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 7022 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Aluminum
Bearing cap No-Without Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without

 Loading...

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6308 ZZ   6208 ZZ
Sealing Sem vedação  Without Bearing Seal
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
392 lb  560 lb

 Loading...

Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Horsepower
10HP
Enclosure
TEFC
Enclosure
TEFC
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
90L
