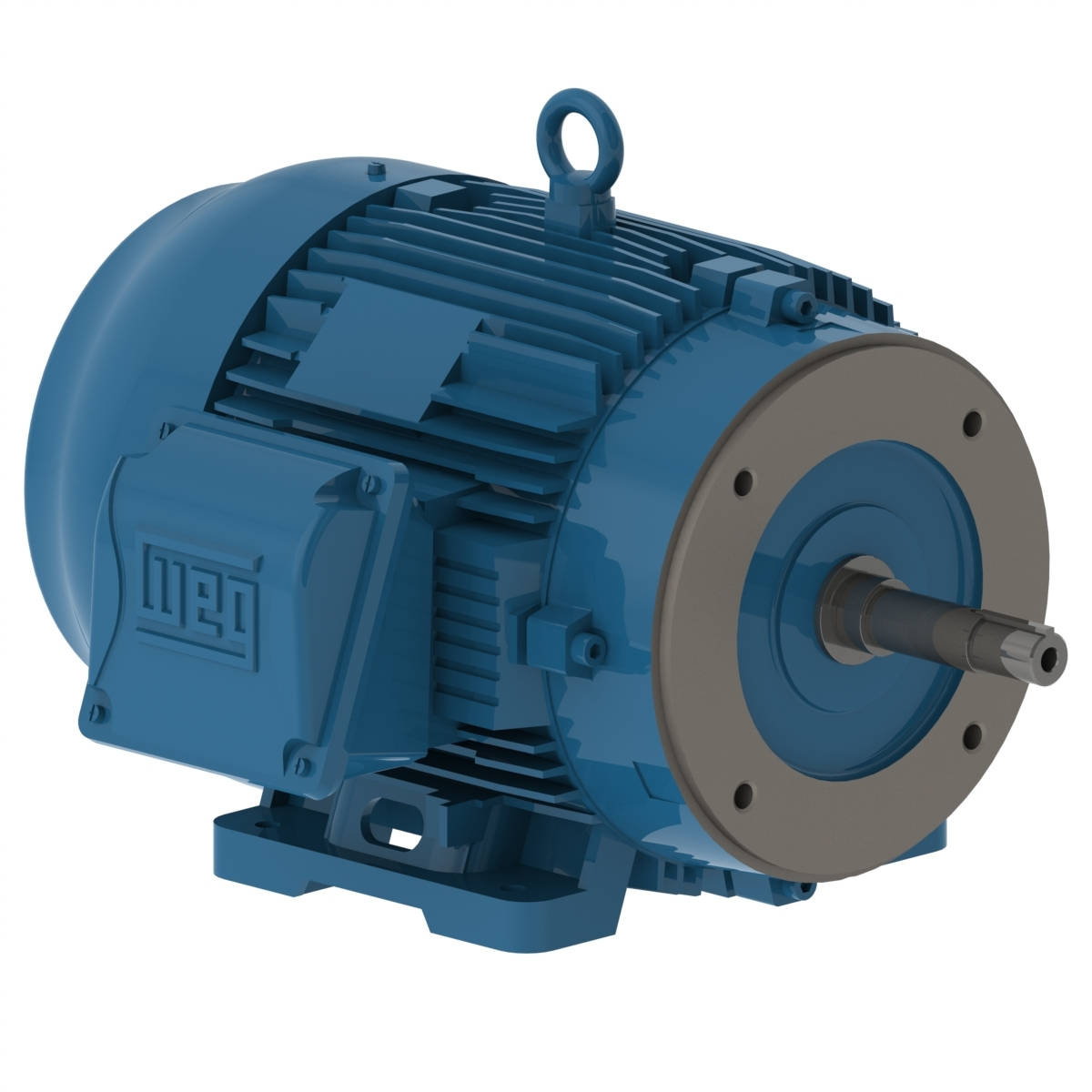

01036ET3H215JM-W22 WEG 10HP JM Close Coupled Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 01036ET3H215JM-W22

01036ET3H215JM-W22 WEG 10HP JM Close Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 01036ET3H215JM-W22

Selected accessories will also be added to cart
$1,574.41 / Each
Quantity:
IC411 - TEFC, IP55, 213JM/215JM Frame, 575VAC 60Hz 3 Phase, 12038016, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Electric Motors

Frame213/5JM
Output10 HP (7.5 kW)
Number of Poles2
Frequency60 Hz
Rated speed3510 rpm
Slip2.50 %
Rated voltage575 V
Rated current9.28 A
L. R. Amperes66.8 A
LRC7.2x(Code H)
No load current2.72 A
Rated torque15.0 ft.lb
Locked rotor torque220 %
Breakdown torque290 %
Locked rotor time43s (cold) 24s (hot)
Moment of inertia (J)0.6362 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?68.0 dB(A)
Approx. weight?166 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
89.5  90.2  90.2

Power factor

50%75%100%
0.79  0.87  0.90

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Pump SealMechanical Seal
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Application
Close Coupled Pump
Horsepower
10HP
Enclosure
TEFC
Enclosure
TEFC
Input Voltage
575VAC
Frame
213JM/215JM
