/Products/Electric Motors/3 Phase Metric/WEG/Foot Mount, W22/01112ET3Y160L-W22 WEG 15HP/11kW IEC TRU-Metric Electric Motor, 1200RPM

Product ID: 01112ET3Y160L-W22

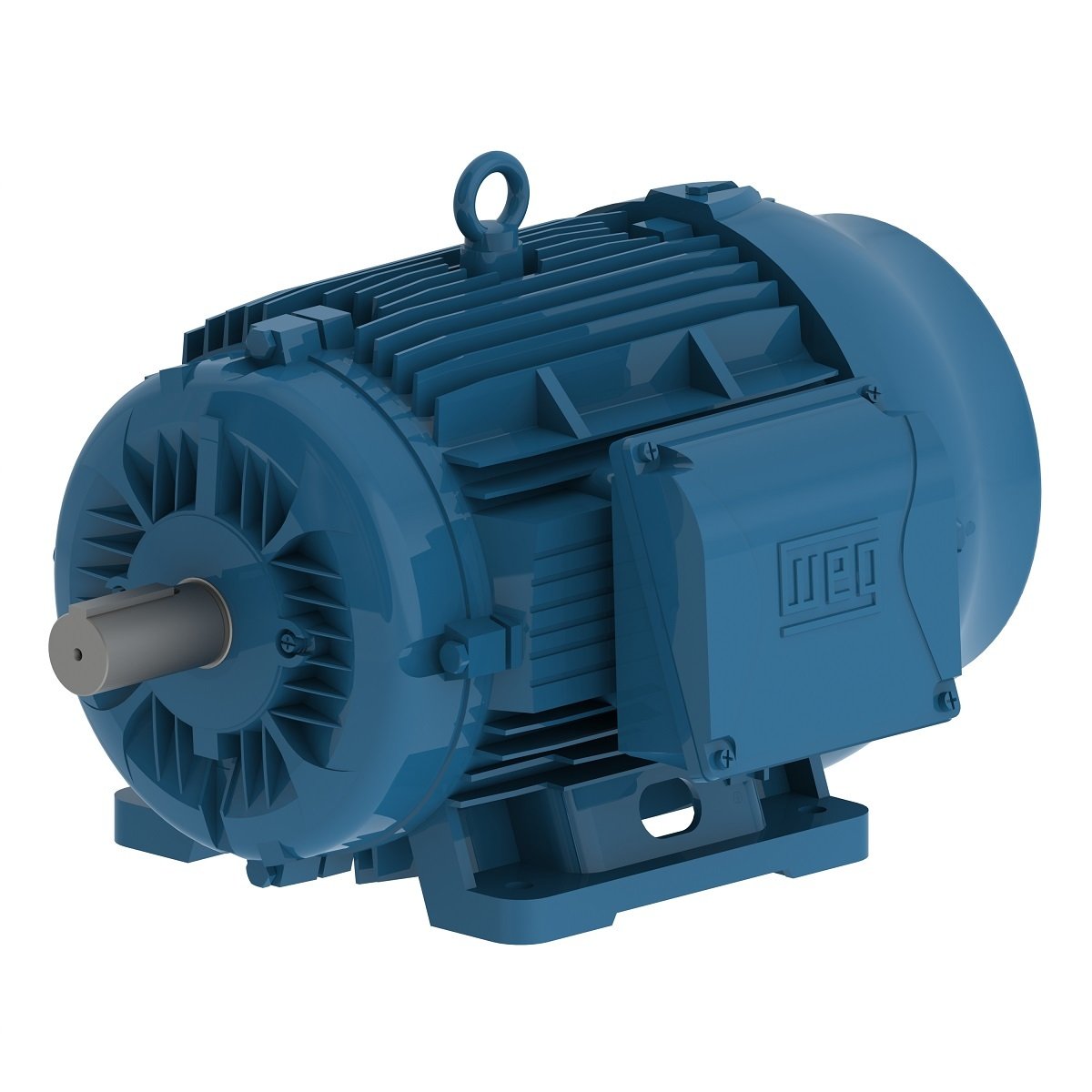

01112ET3Y160L-W22 WEG 15HP/11kW IEC TRU-Metric Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 01112ET3Y160L-W22

Selected accessories will also be added to cart

$2,370.00 / Each

Quantity:

IC411-TEFC, IP55, 160L Frame, 460/380-415VAC 3-Phase 50/60Hz, 11567895, Foot Mount, Cast Iron Frame, 42mm Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	160L
Output	15 HP (11 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	970 rpm
Slip	3.00 %
Rated voltage	380 V
Rated current	22.2 A
L. R. Amperes	144 A
LRC	6.5
No load current	9.20 A
Rated torque	80.1 ft.lb
Locked rotor torque	210 %
Breakdown torque	270 %
Locked rotor time	28s (cold) 16s (hot)

Moment of inertia (J)	3.75 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	57.0 dB(A)
Approx. weight³	317 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.5	90.8	90.8

Power factor

50%	75%	100%
0.66	0.77	0.83

Frame	160L
Output	15 HP (11 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	975 rpm
Slip	2.50 %
Rated voltage	400 V
Rated current	21.5 A
L. R. Amperes	146 A
LRC	6.8
No load current	10.0 A
Rated torque	79.7 ft.lb
Locked rotor torque	240 %
Breakdown torque	300 %
Locked rotor time	28s (cold) 16s (hot)

Moment of inertia (J)	3.75 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	57.0 dB(A)
Approx. weight³	317 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.5	90.8	91.2

Power factor

50%	75%	100%
0.62	0.74	0.81

Frame	160L
Output	15 HP (11 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	975 rpm
Slip	2.50 %
Rated voltage	415 V
Rated current	21.2 A
L. R. Amperes	153 A
LRC	7.2
No load current	10.7 A
Rated torque	79.7 ft.lb
Locked rotor torque	260 %
Breakdown torque	330 %
Locked rotor time	28s (cold) 16s (hot)

Moment of inertia (J)	3.75 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	57.0 dB(A)
Approx. weight³	317 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.5	90.7	91.3

Power factor

50%	75%	100%
0.59	0.71	0.79

Frame	160L
Output	15 HP (11 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1180 rpm
Slip	1.67 %
Rated voltage	460 V
Rated current	19.6 A
L. R. Amperes	159 A
LRC	8.1
No load current	9.78 A
Rated torque	65.9 ft.lb
Locked rotor torque	280 %
Breakdown torque	340 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	3.75 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	59.0 dB(A)
Approx. weight³	317 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	90.2	91.7

Power factor

50%	75%	100%
0.61	0.73	0.77

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	2xM40x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
