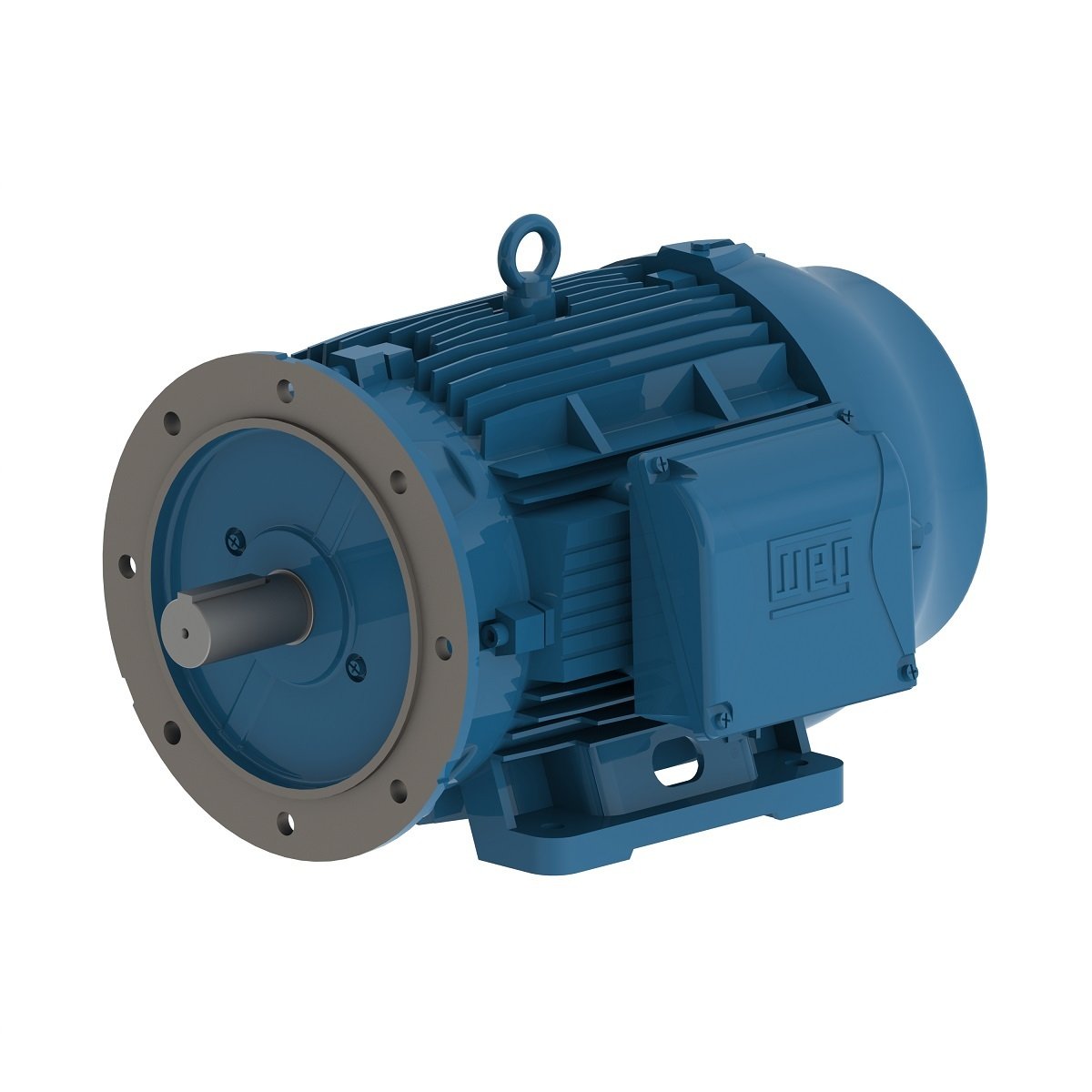

Motor/Control Division

Frame	160M
Output	15 HP (11 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1465 rpm
Slip	2.33 %
Rated voltage	380 V
Rated current	21.1 A
L. R. Amperes	148 A
LRC	7.0
No load current	8.40 A
Rated torque	53.0 ft.lb
Locked rotor torque	220 %
Breakdown torque	270 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	2.38 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B35L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	61.0 dB(A)
Approx. weightÂ³	314 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.3	91.7	91.7

Power factor

50%	75%	100%
0.69	0.79	0.85

Frame	160M
Output	15 HP (11 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1470 rpm
Slip	2.00 %
Rated voltage	400 V
Rated current	20.7 A
L. R. Amperes	145 A
LRC	7.0
No load current	9.00 A
Rated torque	52.9 ft.lb
Locked rotor torque	250 %
Breakdown torque	300 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	2.38 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B35L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	61.0 dB(A)
Approx. weightÂ³	314 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.8	92.2

Power factor

50%	75%	100%
0.65	0.76	0.83

Frame	160M
Output	15 HP (11 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1470 rpm
Slip	2.00 %
Rated voltage	415 V
Rated current	20.5 A
L. R. Amperes	144 A
LRC	7.0
No load current	9.50 A
Rated torque	52.9 ft.lb
Locked rotor torque	270 %
Breakdown torque	330 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	2.38 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B35L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	61.0 dB(A)
Approx. weightÂ³	314 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.7	91.7	92.3

Power factor

50%	75%	100%
0.62	0.74	0.81

Frame	160M
Output	15 HP (11 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1775 rpm
Slip	1.39 %
Rated voltage	460 V
Rated current	18.2 A
L. R. Amperes	151 A
LRC	8.3
No load current	9.08 A
Rated torque	43.8 ft.lb
Locked rotor torque	310 %
Breakdown torque	380 %
Locked rotor time	28s (cold) 16s (hot)

Moment of inertia (J)	2.38 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B35L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	64.0 dB(A)
Approx. weightÂ³	314 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.5	91.7	92.4

Power factor

50%	75%	100%
0.63	0.75	0.82

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	2xM40x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
