Motor/Control Division

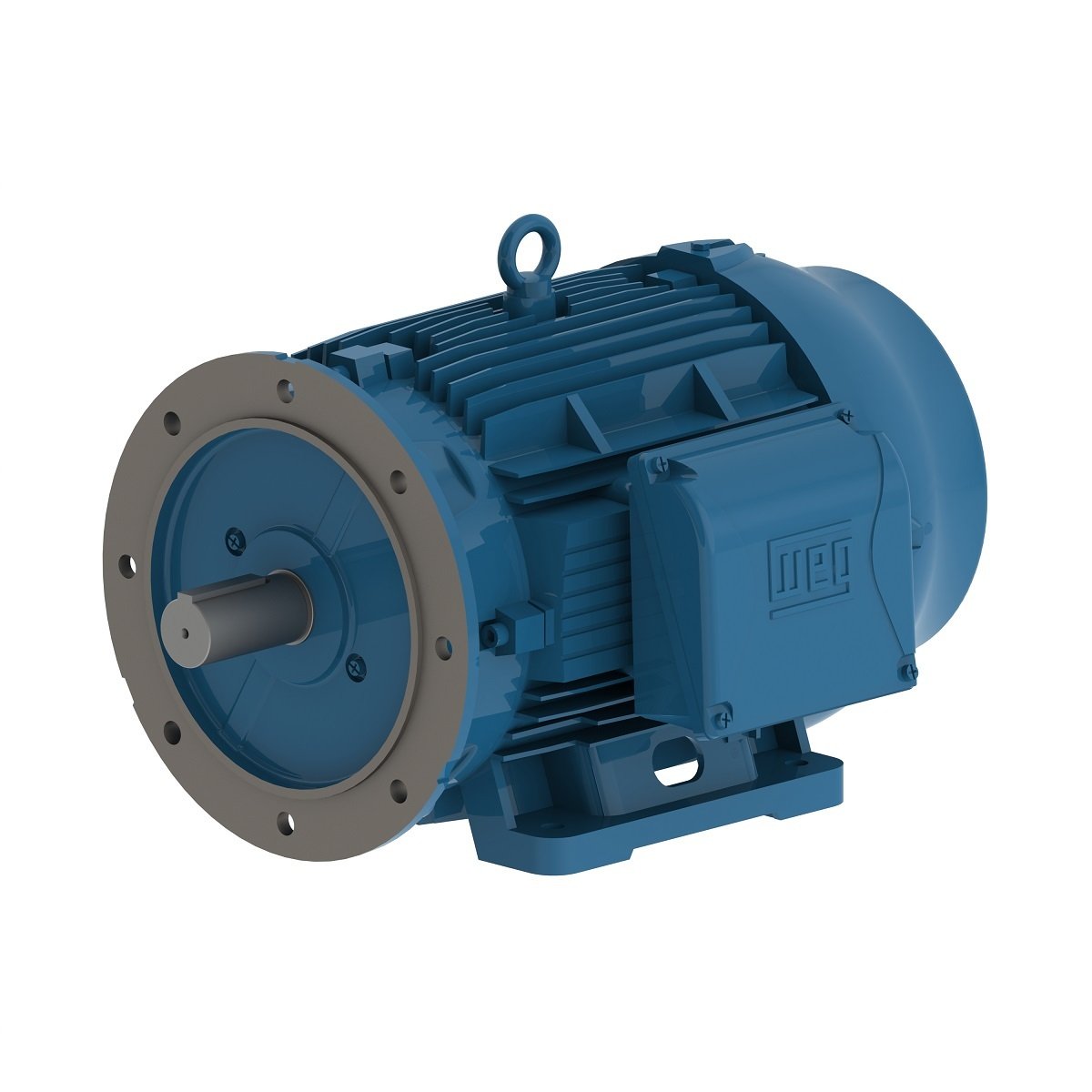

Frame	160M
Output	15 HP (11 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2935 rpm
Slip	2.17 %
Rated voltage	380 V
Rated current	20.8 A
L. R. Amperes	146 A
LRC	7.0
No load current	6.30 A
Rated torque	26.5 ft.lb
Locked rotor torque	229 %
Breakdown torque	300 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	0.9943 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B35L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	67.0 dB(A)
Approx. weightÂ³	274 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.2	91.2

Power factor

50%	75%	100%
0.75	0.84	0.88

Frame	160M
Output	15 HP (11 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2945 rpm
Slip	1.83 %
Rated voltage	400 V
Rated current	20.0 A
L. R. Amperes	150 A
LRC	7.5
No load current	6.80 A
Rated torque	26.4 ft.lb
Locked rotor torque	260 %
Breakdown torque	340 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	0.9943 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B35L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	67.0 dB(A)
Approx. weightÂ³	274 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.2	91.3

Power factor

50%	75%	100%
0.71	0.81	0.87

Frame	160M
Output	15 HP (11 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2950 rpm
Slip	1.67 %
Rated voltage	415 V
Rated current	19.5 A
L. R. Amperes	156 A
LRC	8.0
No load current	7.30 A
Rated torque	26.3 ft.lb
Locked rotor torque	280 %
Breakdown torque	370 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	0.9943 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B35L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	67.0 dB(A)
Approx. weightÂ³	274 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.1	91.3	91.4

Power factor

50%	75%	100%
0.68	0.79	0.86

Frame	160M
Output	15 HP (11 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3550 rpm
Slip	1.39 %
Rated voltage	460 V
Rated current	17.9 A
L. R. Amperes	156 A
LRC	8.7
No load current	6.50 A
Rated torque	21.9 ft.lb
Locked rotor torque	310 %
Breakdown torque	400 %
Locked rotor time	43s (cold) 24s (hot)

Moment of inertia (J)	0.9943 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B35L(E)
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	72.0 dB(A)
Approx. weightÂ³	274 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	91.0	91.7

Power factor

50%	75%	100%
0.69	0.80	0.84

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	2xM40x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
