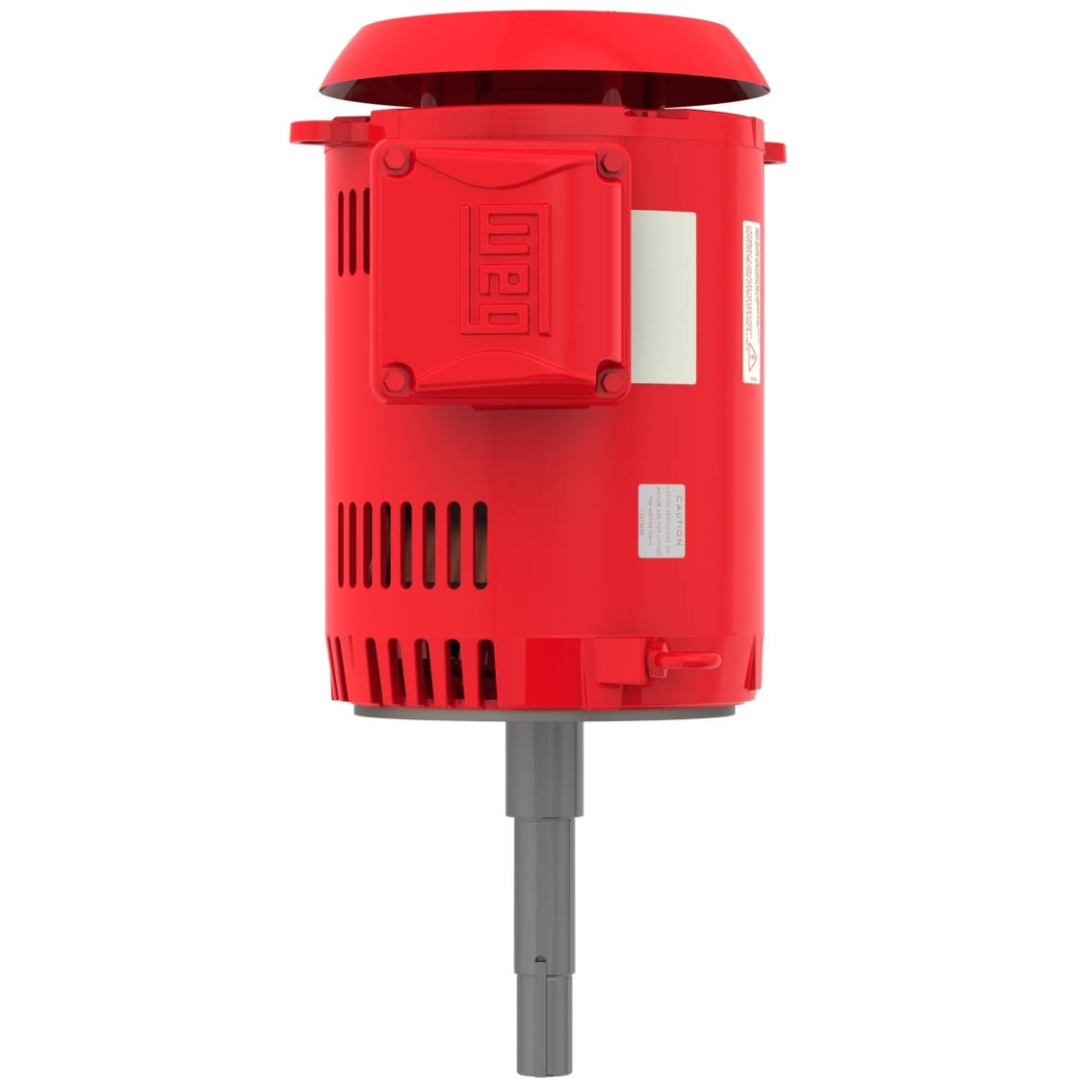

Motor/Control Division

Frame	254/6JP
Output	15 HP (11 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1770 rpm
Slip	1.67 %
Rated voltage	230/460 V
Rated current	37.0/18.5 A
L. R. Amperes	222/111 A
LRC	6.0x(Code G)
No load current	16.9/8.47 A
Rated torque	44.5 ft.lb
Locked rotor torque	190 %
Breakdown torque	229 %
Locked rotor time	23s (cold) 13s (hot)

Moment of inertia (J)	1.22 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	W-6
Rotation?	Both (CW and CCW)
Noise level?	64.0 dB(A)
Approx. weight?	195 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	91.0	91.0

Power factor

50%	75%	100%
0.66	0.77	0.82

Frame	254/6JP
Output	15 HP (11 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1455 rpm
Slip	3.00 %
Rated voltage	190-220/380 V
Rated current	45.6-39.4/22.8 A
L. R. Amperes	187-161/93.5 A
LRC	4.1x(Code D)
No load current	16.6-14.3/8.29 A
Rated torque	54.1 ft.lb
Locked rotor torque	130 %
Breakdown torque	170 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	1.22 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	W-6
Rotation?	Both (CW and CCW)
Noise level?	62.0 dB(A)
Approx. weight?	195 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.9	88.7	86.1

Power factor

50%	75%	100%
0.73	0.82	0.85

Frame	254/6JP
Output	15 HP (11 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1460 rpm
Slip	2.67 %
Rated voltage	415 V
Rated current	21.3 A
L. R. Amperes	104 A
LRC	4.9x(Code F)
No load current	10.2 A
Rated torque	54.0 ft.lb
Locked rotor torque	160 %
Breakdown torque	210 %
Locked rotor time	14s (cold) 8s (hot)

Moment of inertia (J)	1.22 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	W-6
Rotation?	Both (CW and CCW)
Noise level?	62.0 dB(A)
Approx. weight?	195 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.8	88.9	87.5

Power factor

50%	75%	100%
0.65	0.77	0.82

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	1.732"
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 3002 207N (ISO 12944 - C2)
Grounding Lugs	Superior
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	With
Resilient Base	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
