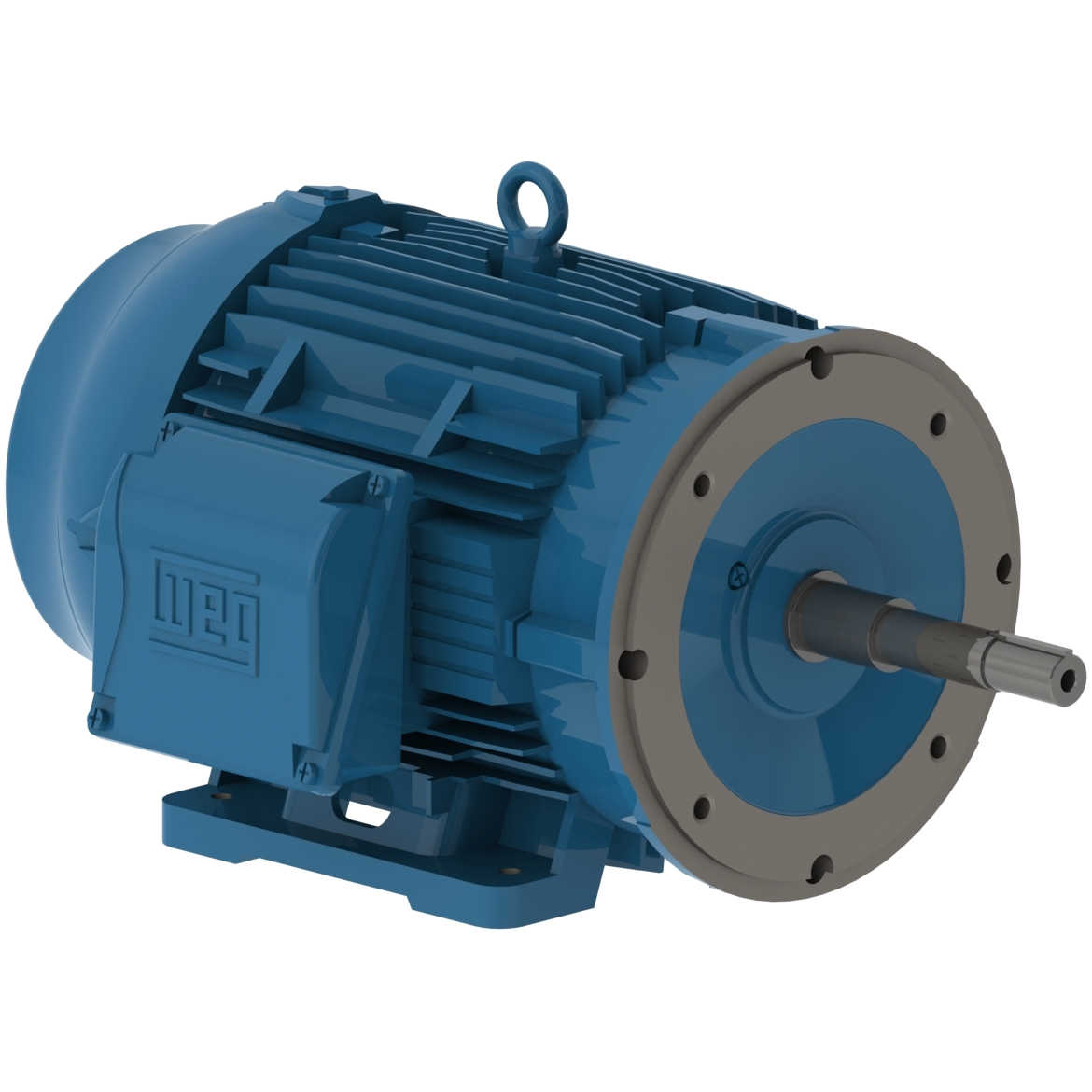

01518ET3H254JP-W22 WEG 15HP JP Close Coupled Pump Electric Motor, 1800RPM
Enlarge Photo

Product ID: 01518ET3H254JP-W22

01518ET3H254JP-W22 WEG 15HP JP Close Coupled Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 01518ET3H254JP-W22

Selected accessories will also be added to cart
$2,361.17 / Each
Quantity:
IC411 - TEFC, IP55, 254JP/256JP Frame, 575VAC 60Hz 3 Phase, 12712072, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Electric Motors

Frame254/6JP
Output15 HP (11 kW)
Number of Poles4
Frequency60 Hz
Rated speed1765 rpm
Slip1.94 %
Rated voltage575 V
Rated current14.4 A
L. R. Amperes92.2 A
LRC6.4x(Code G)
No load current5.44 A
Rated torque44.6 ft.lb
Locked rotor torque229 %
Breakdown torque270 %
Locked rotor time30s (cold) 17s (hot)
Moment of inertia (J)2.62 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?64.0 dB(A)
Approx. weight?329 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.0  91.7  92.4

Power factor

50%75%100%
0.68  0.78  0.83

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Drip CoverWithout
Pump SealGasket
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Application
Close Coupled Pump
Horsepower
15HP
Enclosure
TEFC
Enclosure
TEFC
Input Voltage
575VAC
Frame
254JP/256JP
