01518ET3V254T-SG WEG 15HP General Purpose Electric Motor, 1800RPM

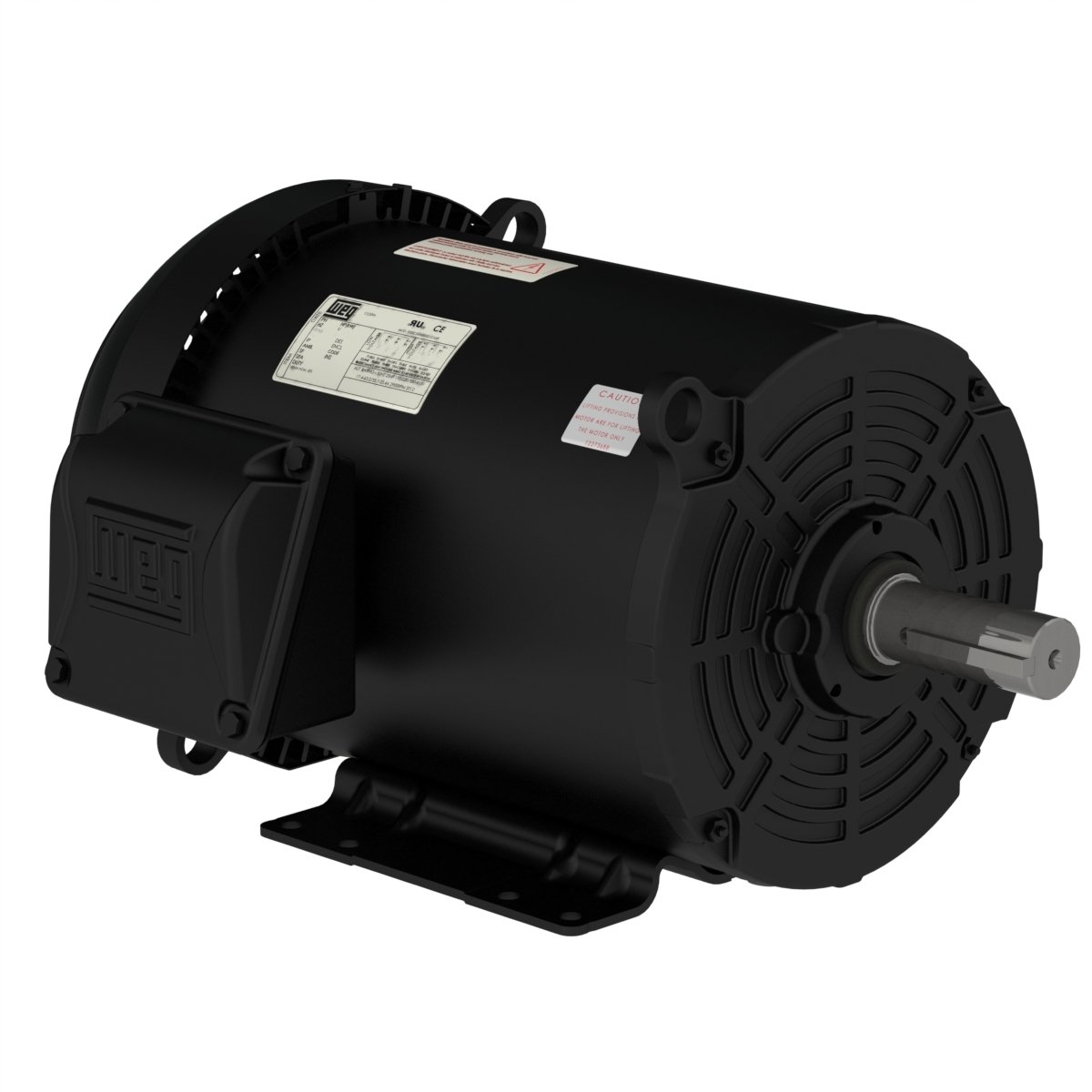

Enlarge Photo

Product ID: 01518ET3V254T-SG

01518ET3V254T-SG WEG 15HP General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 01518ET3V254T-SG

Selected accessories will also be added to cart
$1,682.10 / Each
Quantity:
IC411 - TEFC, 254T/256T Frame, 200/400VAC 3-Phase 60Hz, 12793363, Foot Mount, AEGIS Ring, Rolled Steel, 1-5/8" Keyed Shaft

Electric Motors

Frame254/6T
Output15 HP (11 kW)
Number of Poles4
Frequency60 Hz
Rated speed1770 rpm
Slip1.67 %
Rated voltage200/400 V
Rated current41.9/20.9 A
L. R. Amperes272/136 A
LRC6.5x(Code G)
No load current19.9/9.95 A
Rated torque43.9 ft.lb
Locked rotor torque250 %
Breakdown torque300 %
Locked rotor time34s (cold) 19s (hot)
Moment of inertia (J)2.15 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?68.0 dB(A)
Approx. weight?213 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.0  92.4  92.4

Power factor

50%75%100%
0.64  0.76  0.82

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box hole1.732"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSuperior
Fan Cover materialRolled Steel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Horsepower
15HP
Enclosure
TEFC
Enclosure
TEFC
Input Voltage
200VAC
Input Voltage
400VAC
Frame
254T
Frame
256T
