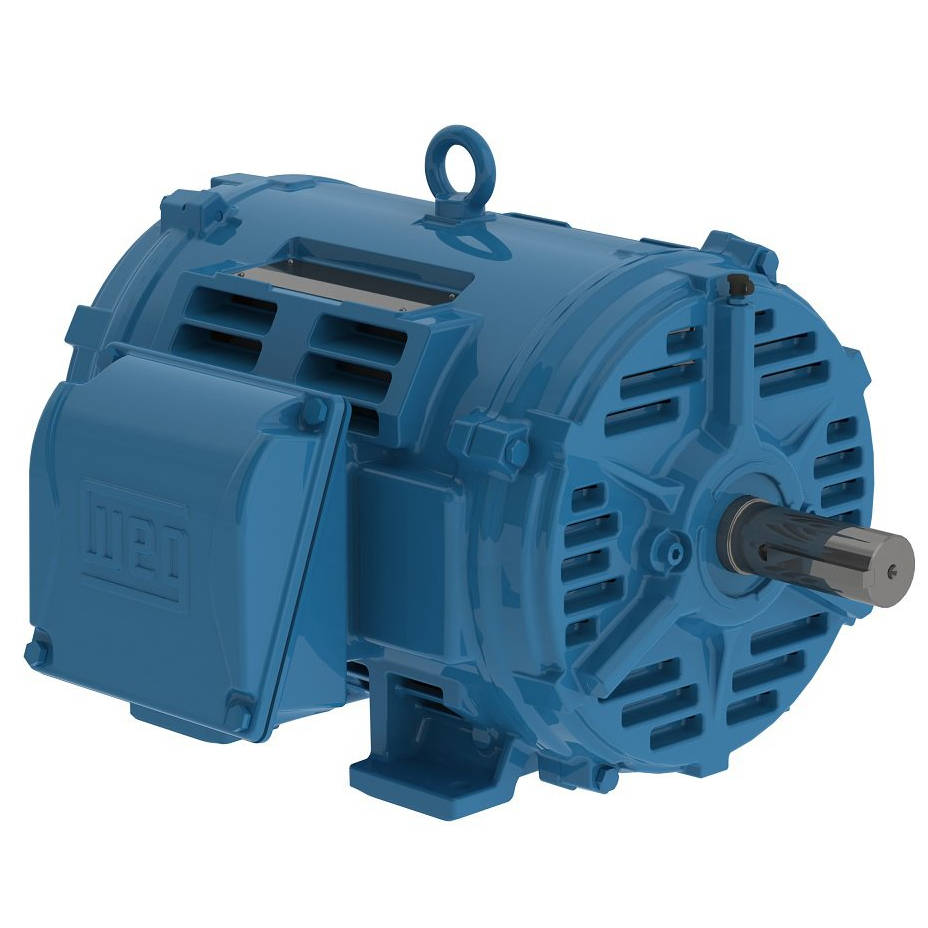

01518OT3E254T-W40 WEG 15HP, General Purpose Electric Motor, 1800RPM
Enlarge Photo

Product ID: 01518OT3E254T-W40

01518OT3E254T-W40 WEG 15HP, General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 01518OT3E254T-W40

Selected accessories will also be added to cart
$1,314.53 / Each
Quantity:
IC01 - ODP, IP23, 254T Frame, 208-230/460VAC 3-Phase 50/60Hz, 14366964, Cast Iron, Foot Mount, NEMA Premium Efficiency, 1-5/8" Keyed Shaft

Electric Motors

Frame254T
Output15 HP (11 kW)
Number of Poles4
Frequency60 Hz
Rated speed1770 rpm
Slip1.67 %
Rated voltage208-230/460 V
Rated current38.7-35.0/17.5 A
L. R. Amperes248-224/112 A
LRC6.4x(Code G)
No load current11.2-13.0/6.50 A
Rated torque43.9 ft.lb
Locked rotor torque240 %
Breakdown torque280 %
Locked rotor time30s (cold) 17s (hot)
Moment of inertia (J)2.72 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?62.0 dB(A)
Approx. weight?262 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.7  92.4  93.0

Power factor

50%75%100%
0.38  0.78  0.85
Frame254T
Output10 HP (7.5 kW)
Number of Poles4
Frequency50 Hz
Rated speed1470 rpm
Slip2.00 %
Rated voltage380 V
Rated current15.3 A
L. R. Amperes101 A
LRC6.6x(Code H)
No load current7.22 A
Rated torque35.2 ft.lb
Locked rotor torque250 %
Breakdown torque320 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)2.72 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?62.0 dB(A)
Approx. weight?262 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
89.2  91.0  91.0

Power factor

50%75%100%
0.62  0.75  0.82
Frame254T
Output10 HP (7.5 kW)
Number of Poles4
Frequency50 Hz
Rated speed1475 rpm
Slip1.67 %
Rated voltage400 V
Rated current14.9 A
L. R. Amperes101 A
LRC6.8x(Code H)
No load current7.71 A
Rated torque35.1 ft.lb
Locked rotor torque280 %
Breakdown torque350 %
Locked rotor time32s (cold) 18s (hot)
Moment of inertia (J)2.72 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?62.0 dB(A)
Approx. weight?262 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
89.2  91.0  91.0

Power factor

50%75%100%
0.58  0.72  0.80
Frame254T
Output10 HP (7.5 kW)
Number of Poles4
Frequency50 Hz
Rated speed1477 rpm
Slip1.53 %
Rated voltage415 V
Rated current14.5 A
L. R. Amperes102 A
LRC7.0x(Code J)
No load current8.12 A
Rated torque35.1 ft.lb
Locked rotor torque310 %
Breakdown torque380 %
Locked rotor time28s (cold) 16s (hot)
Moment of inertia (J)2.72 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?62.0 dB(A)
Approx. weight?262 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
89.2  91.0  91.0

Power factor

50%75%100%
0.55  0.69  0.79

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Horsepower
15HP
Enclosure
ODP
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
254T
