/Products/Electric Motors/3 Phase/WEG/Rolled Steel, TEFC/JP, TEFC/01536ET3E254JP-S WEG 15HP JP Close Coupled Pump Electric Motor, 3600RPM

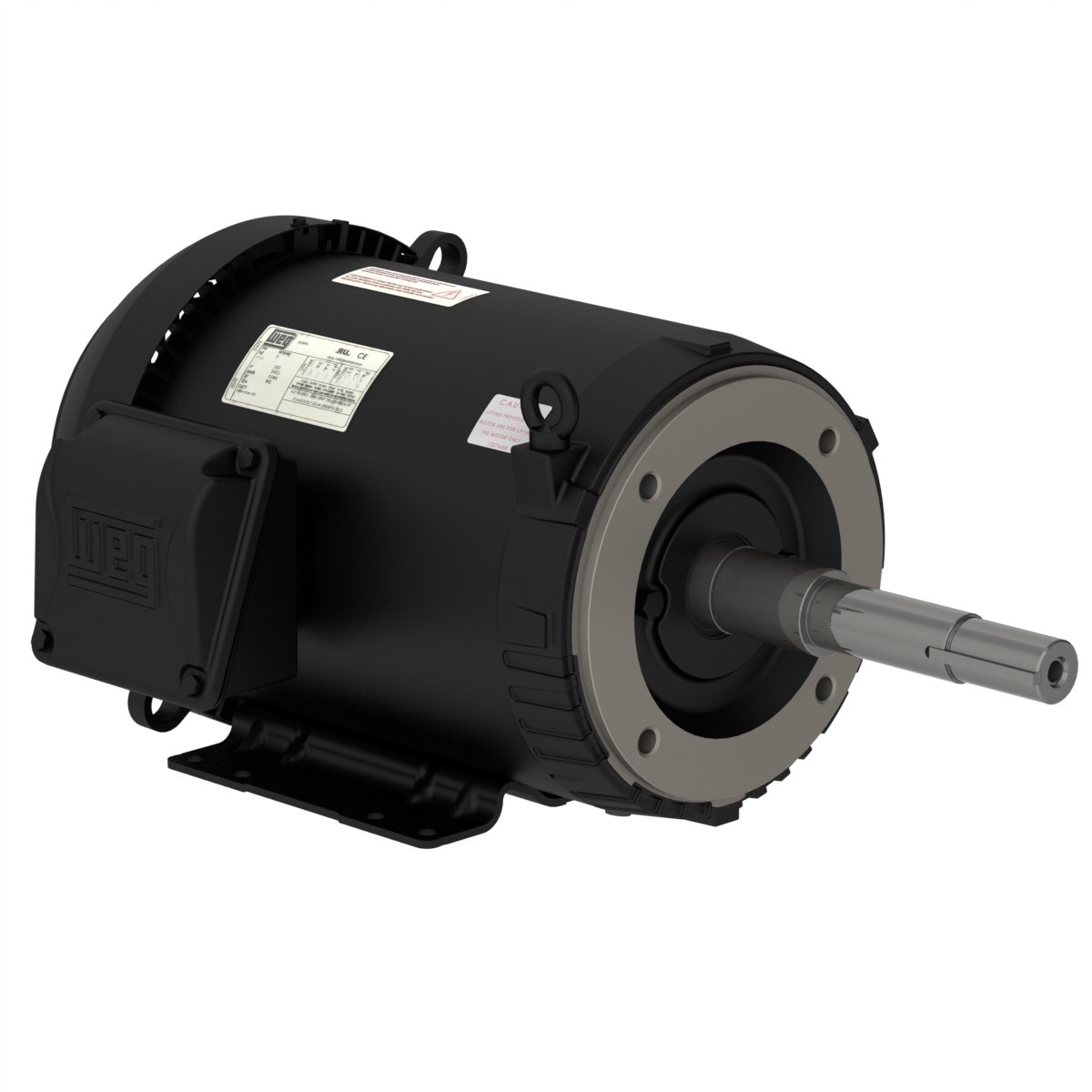

01536ET3E254JP-S WEG 15HP JP Close Coupled Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 01536ET3E254JP-S

01536ET3E254JP-S WEG 15HP JP Close Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 01536ET3E254JP-S

Selected accessories will also be added to cart
$1,971.75 / Each
Quantity:
IC411 - TEFC, IP55, 254JP/256JP Frame, 208-230/460VAC 3-Phase 50/60Hz, 13506323, Foot Mount, Rolled Steel, NEMA Premium Efficiency

Electric Motors

Frame 254/6JP
Output 15 HP (11 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3525 rpm
Slip 2.08 %
Rated voltage 208-230/460 V
Rated current 38.5-34.8/17.4 A
L. R. Amperes 262-237/118 A
LRC 6.8x(Code G)
No load current 11.2-13.0/6.50 A
Rated torque 22.0 ft.lb
Locked rotor torque 200 %
Breakdown torque 300 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 0.8718 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 75.0 dB(A)
Approx. weight³ 196 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
89.5  91.0  91.0

Power factor

50% 75% 100%
0.73  0.83  0.87
Frame 254/6JP
Output 12.5 HP (9.2 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2920 rpm
Slip 2.67 %
Rated voltage 190/380 V
Rated current 35.4/17.7 A
L. R. Amperes 244/122 A
LRC 6.9x(Code H)
No load current 13.6/6.80 A
Rated torque 22.2 ft.lb
Locked rotor torque 190 %
Breakdown torque 290 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.8718 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
Approx. weight³ 196 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.2  90.6  89.8

Power factor

50% 75% 100%
0.74  0.84  0.88
Frame 254/6JP
Output 12.5 HP (9.2 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2935 rpm
Slip 2.17 %
Rated voltage 220/415 V
Rated current 31.3/16.6 A
L. R. Amperes 254/134 A
LRC 8.1x(Code J)
No load current 14.8/7.86 A
Rated torque 22.1 ft.lb
Locked rotor torque 229 %
Breakdown torque 360 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.8718 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
Approx. weight³ 196 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
89.7  90.8  90.6

Power factor

50% 75% 100%
0.67  0.79  0.85

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole 1.732"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Superior
Fan Cover material Rolled Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
