Product ID: 01536ET3ER254TC-S

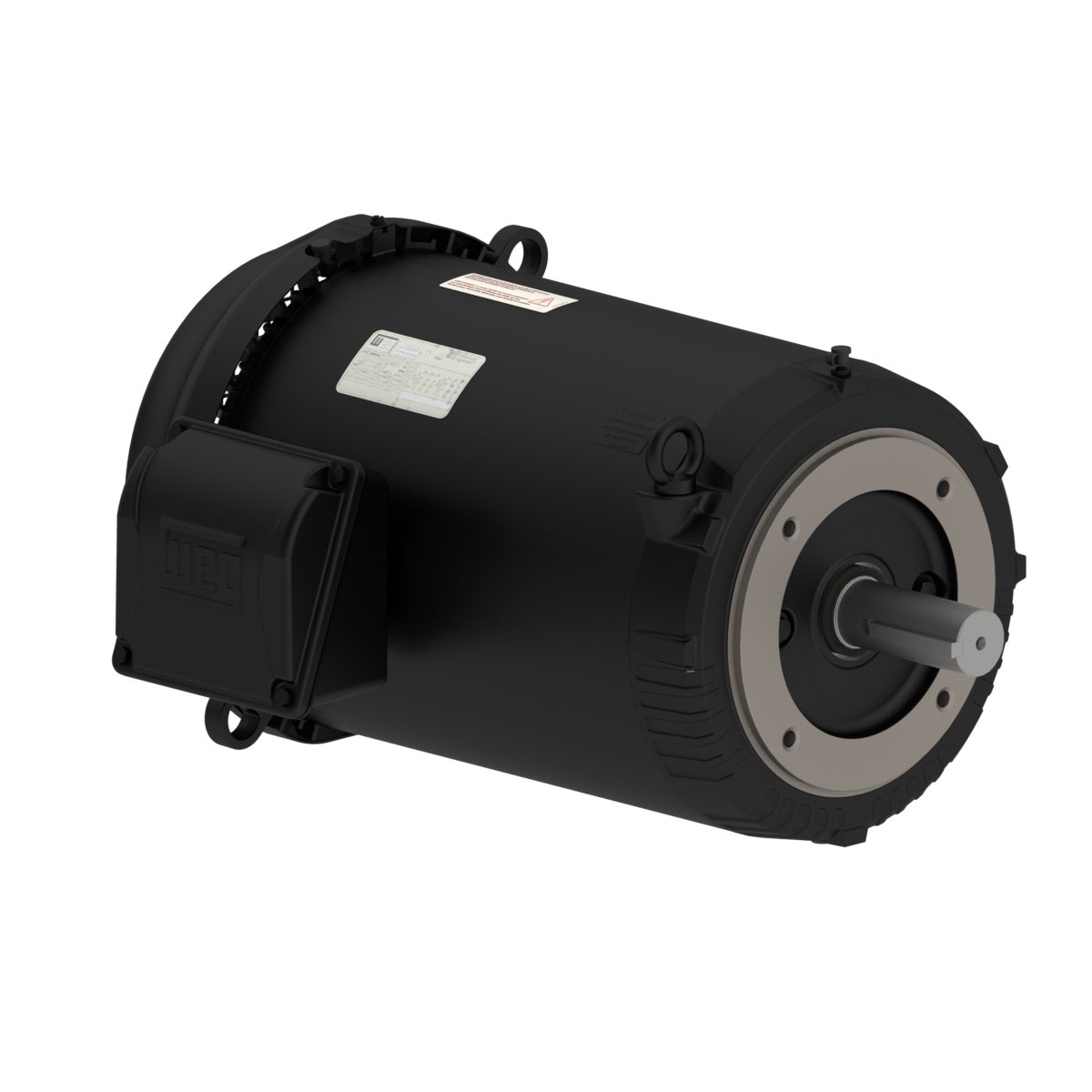

01536ET3ER254TC-S WEG 15HP General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 01536ET3ER254TC-S

Selected accessories will also be added to cart

$1,467.61 / Each

Quantity:

IC411 - TEFC, IP55, 254TC/256TC Frame, 208-230/460VAC 3-Phase 50/60Hz, 13041121, C-Face, Footless, Rolled Steel, NEMA Premium Efficiency, 1-5/8" Keyed Shaft

Electric Motors

Frame	254/6TC
Output	15 HP (11 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3525 rpm
Slip	2.08 %
Rated voltage	208-230/460 V
Rated current	38.5-34.8/17.4 A
L. R. Amperes	262-237/118 A
LRC	6.8x(Code G)
No load current	11.2-13.0/6.50 A
Rated torque	22.0 ft.lb
Locked rotor torque	200 %
Breakdown torque	300 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	0.8718 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	75.0 dB(A)
Approx. weight?	193 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.5	91.0	91.0

Power factor

50%	75%	100%
0.73	0.83	0.87

Frame	254/6TC
Output	12.5 HP (9.2 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2920 rpm
Slip	2.67 %
Rated voltage	190/380 V
Rated current	35.4/17.7 A
L. R. Amperes	244/122 A
LRC	6.9x(Code H)
No load current	13.6/6.80 A
Rated torque	22.2 ft.lb
Locked rotor torque	190 %
Breakdown torque	290 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.8718 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	72.0 dB(A)
Approx. weight?	193 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	90.6	89.8

Power factor

50%	75%	100%
0.74	0.84	0.88

Frame	254/6TC
Output	12.5 HP (9.2 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2935 rpm
Slip	2.17 %
Rated voltage	220/415 V
Rated current	31.3/16.6 A
L. R. Amperes	254/134 A
LRC	8.1x(Code J)
No load current	14.8/7.86 A
Rated torque	22.1 ft.lb
Locked rotor torque	229 %
Breakdown torque	360 %
Locked rotor time	0s (cold) 0s (hot)

Moment of inertia (J)	0.8718 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	72.0 dB(A)
Approx. weight?	193 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.7	90.8	90.6

Power factor

50%	75%	100%
0.67	0.79	0.85

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	1.732"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Superior
Fan Cover material	Rolled Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	With
Resilient Base	Without
