Product ID: 01536EG3E254T-W22

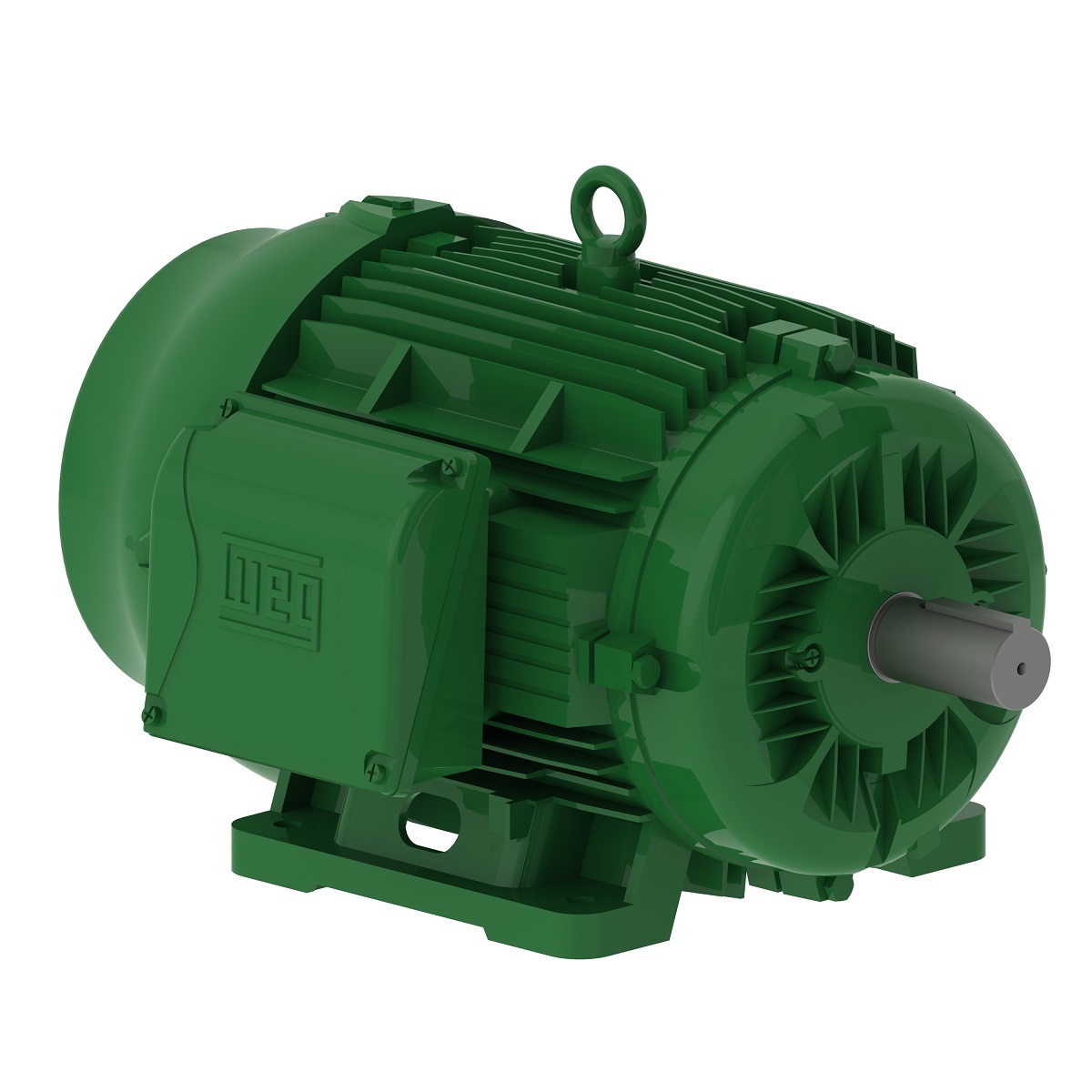

01536EG3E254T-W22 WEG 15HP Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 01536EG3E254T-W22

Selected accessories will also be added to cart

$1,785.34 / Each

Quantity:

IC411 - TEFC, IP55, 254T/256T Frame, 208-230/460VAC 60Hz 3 Phase, 12604366, Super Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-5/8" Keyed Shaft

Electric Motors

Frame	254/6T
Output	15 HP (11 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3545 rpm
Slip	1.53 %
Rated voltage	230/460 V
Rated current	34.8/17.4 A
L. R. Amperes	268/134 A
LRC	7.7x(Code J)
No load current	14.0/7.00 A
Rated torque	22.2 ft.lb
Locked rotor torque	270 %
Breakdown torque	350 %
Locked rotor time	50s (cold) 28s (hot)

Moment of inertia (J)	1.56 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	72.0 dB(A)
Approx. weight?	302 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	91.7	92.4

Power factor

50%	75%	100%
0.72	0.82	0.86

Frame	254/6T
Output	15 HP (11 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2935 rpm
Slip	2.17 %
Rated voltage	380 V
Rated current	20.7 A
L. R. Amperes	132 A
LRC	6.4x(Code G)
No load current	6.90 A
Rated torque	26.8 ft.lb
Locked rotor torque	200 %
Breakdown torque	270 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	1.56 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	67.0 dB(A)
Approx. weight?	302 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.7	91.7

Power factor

50%	75%	100%
0.78	0.86	0.88

Frame	254/6T
Output	15 HP (11 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2940 rpm
Slip	2.00 %
Rated voltage	400 V
Rated current	19.8 A
L. R. Amperes	139 A
LRC	7.0x(Code H)
No load current	7.20 A
Rated torque	26.8 ft.lb
Locked rotor torque	220 %
Breakdown torque	300 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	1.56 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	67.0 dB(A)
Approx. weight?	302 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.7	92.4	92.4

Power factor

50%	75%	100%
0.75	0.84	0.87

Frame	254/6T
Output	15 HP (11 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2945 rpm
Slip	1.83 %
Rated voltage	415 V
Rated current	19.3 A
L. R. Amperes	143 A
LRC	7.4x(Code H)
No load current	7.50 A
Rated torque	26.7 ft.lb
Locked rotor torque	240 %
Breakdown torque	330 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	1.56 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	67.0 dB(A)
Approx. weight?	302 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.7	92.4	92.4

Power factor

50%	75%	100%
0.73	0.83	0.86

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 6002 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
