/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/W22 General Purpose, TEFC/Foot Mount/01536ET3E254T-W22 WEG 15HP Severe Duty Electric Motor, 3600RPM

Product ID: 01536ET3E254T-W22

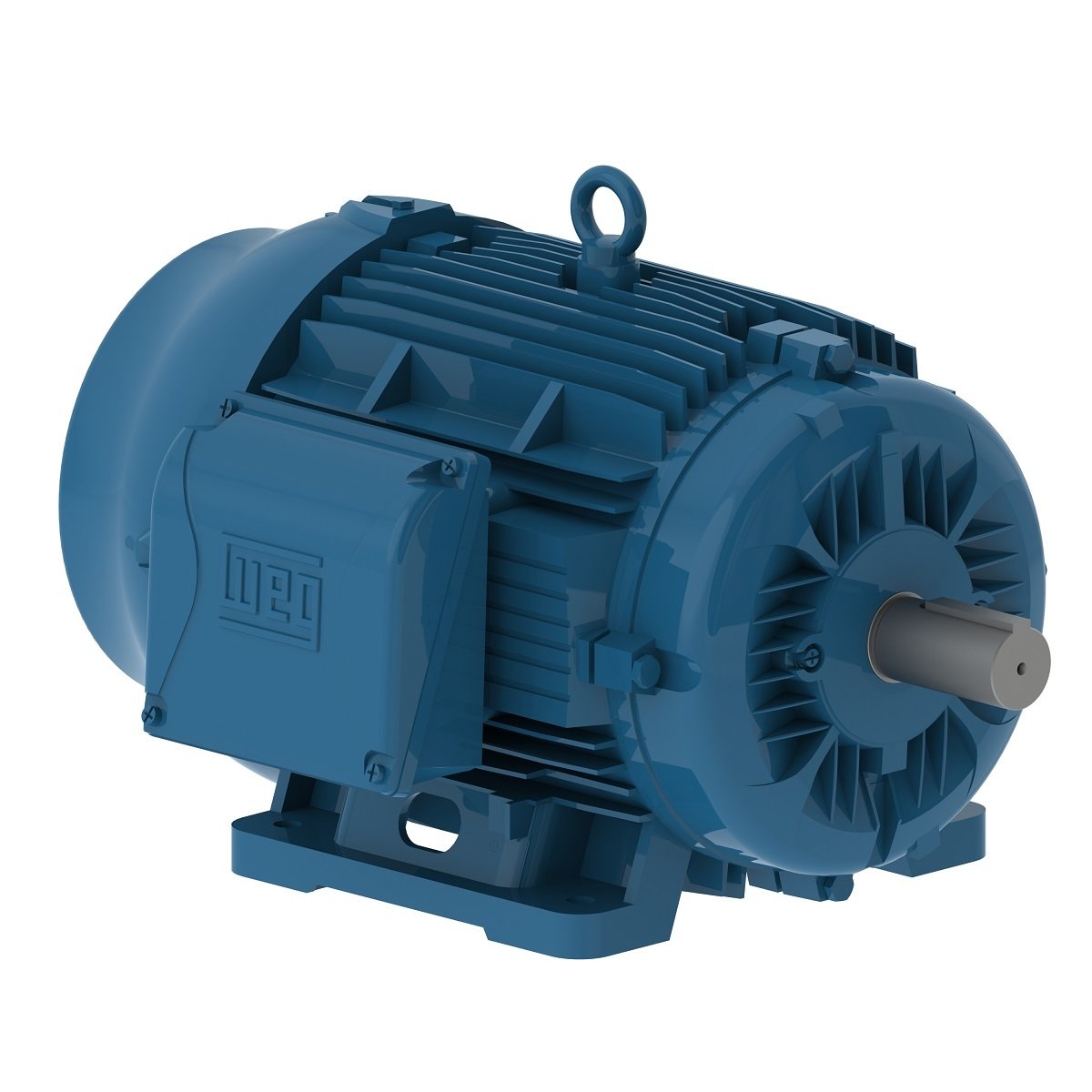

01536ET3E254T-W22 WEG 15HP Severe Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 01536ET3E254T-W22

Selected accessories will also be added to cart

$1,623.36 / Each

Quantity:

IC411 - TEFC, IP55, 254T/256T Frame, 208-230/460VAC 3-Phase 50/60Hz, 12375663, Foot Mounted, Cast Iron Frame, NEMA Premium Efficiency, 1-5/8" Keyed Shaft

Electric Motors

Frame	254/6T
Output	15 HP (11 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3530 rpm
Slip	1.94 %
Rated voltage	208-230/460 V
Rated current	38.0-34.4/17.2 A
L. R. Amperes	255-230/115 A
LRC	6.7x(Code G)
No load current	10.3-12.0/6.00 A
Rated torque	22.0 ft.lb
Locked rotor torque	220 %
Breakdown torque	270 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	1.26 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	72.0 dB(A)
Approx. weight³	262 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.5	91.0	91.0

Power factor

50%	75%	100%
0.77	0.85	0.88

Frame	254/6T
Output	10 HP (7.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2945 rpm
Slip	1.83 %
Rated voltage	380 V
Rated current	14.5 A
L. R. Amperes	98.6 A
LRC	6.8x(Code H)
No load current	5.62 A
Rated torque	17.6 ft.lb
Locked rotor torque	200 %
Breakdown torque	310 %
Locked rotor time	55s (cold) 31s (hot)

Moment of inertia (J)	1.26 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	262 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.3	90.5	90.5

Power factor

50%	75%	100%
0.73	0.83	0.87

Frame	254/6T
Output	10 HP (7.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2950 rpm
Slip	1.67 %
Rated voltage	400 V
Rated current	14.0 A
L. R. Amperes	105 A
LRC	7.5x(Code J)
No load current	6.00 A
Rated torque	17.6 ft.lb
Locked rotor torque	229 %
Breakdown torque	350 %
Locked rotor time	50s (cold) 28s (hot)

Moment of inertia (J)	1.26 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	262 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.1	90.7	90.7

Power factor

50%	75%	100%
0.69	0.80	0.85

Frame	254/6T
Output	10 HP (7.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2955 rpm
Slip	1.50 %
Rated voltage	415 V
Rated current	13.7 A
L. R. Amperes	108 A
LRC	7.9x(Code J)
No load current	6.30 A
Rated torque	17.5 ft.lb
Locked rotor torque	250 %
Breakdown torque	380 %
Locked rotor time	46s (cold) 26s (hot)

Moment of inertia (J)	1.26 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	262 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.9	90.8	90.8

Power factor

50%	75%	100%
0.67	0.78	0.84

Frame	254/6T
Output	15 HP (11 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2910 rpm
Slip	3.00 %
Rated voltage	380 V
Rated current	20.7 A
L. R. Amperes	101 A
LRC	4.9x(Code D)
No load current	5.50 A
Rated torque	26.7 ft.lb
Locked rotor torque	170 %
Breakdown torque	200 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	1.26 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	262 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.5	90.2	89.5

Power factor

50%	75%	100%
0.83	0.88	0.90

Frame	254/6T
Output	15 HP (11 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2920 rpm
Slip	2.67 %
Rated voltage	400 V
Rated current	19.6 A
L. R. Amperes	108 A
LRC	5.5x(Code E)
No load current	5.80 A
Rated torque	26.6 ft.lb
Locked rotor torque	190 %
Breakdown torque	229 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	1.26 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	262 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	90.2	90.2

Power factor

50%	75%	100%
0.81	0.87	0.90

Frame	254/6T
Output	15 HP (11 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2925 rpm
Slip	2.50 %
Rated voltage	415 V
Rated current	19.1 A
L. R. Amperes	113 A
LRC	5.9x(Code F)
No load current	6.10 A
Rated torque	26.6 ft.lb
Locked rotor torque	210 %
Breakdown torque	240 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	1.26 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	262 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	91.0	90.2

Power factor

50%	75%	100%
0.79	0.86	0.89

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
