/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/W22 General Purpose, TEFC/Foot Mount/01536ET3E254TF3-W22 WEG 15HP Severe Duty Electric Motor, 3600RPM

Product ID: 01536ET3E254TF3-W22

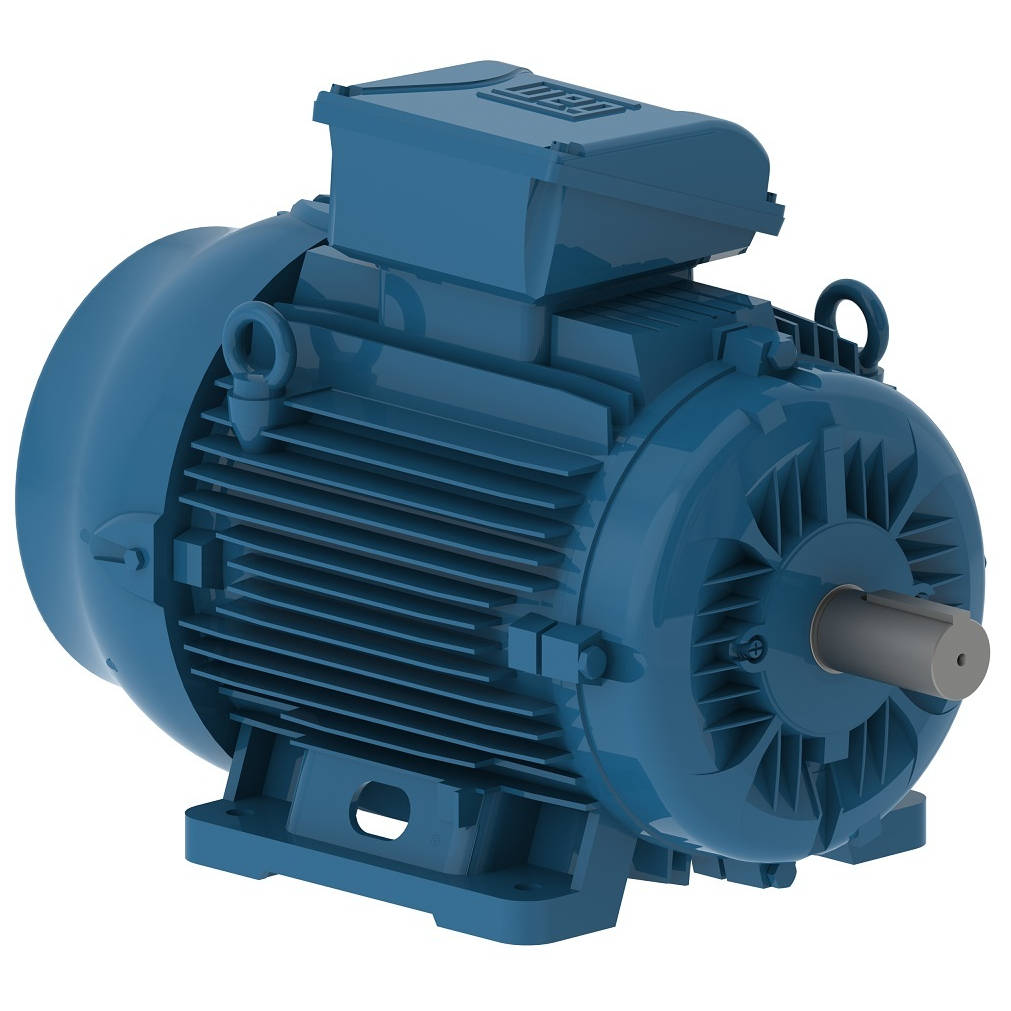

01536ET3E254TF3-W22 WEG 15HP Severe Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 01536ET3E254TF3-W22

Selected accessories will also be added to cart

$1,672.31 / Each

Quantity:

IC411 - TEFC, IP55, 254T Frame, 230/460/380VAC 50/60Hz 3 Phase, 11807185, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-5/8" Keyed Shaft, F-3 Terminal Box Mounting

Frame	254T
Output	15 HP (11 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3530 rpm
Slip	1.94 %
Rated voltage	230/460 V
Rated current	34.4/17.2 A
L. R. Amperes	230/115 A
LRC	6.7x(Code G)
No load current	10.6/5.30 A
Rated torque	22.3 ft.lb
Locked rotor torque	220 %
Breakdown torque	270 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	1.26 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-3
Rotation?	Both (CW and CCW)
Noise level?	72.0 dB(A)
Approx. weight?	266 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
