/Products/Electric Motors/3 Phase Metric/WEG/Foot Mount, W22/01812ET3Y200L-W22 WEG 25HP/18.5kW IEC TRU-Metric Electric Motor, 1200RPM

Product ID: 01812ET3Y200L-W22

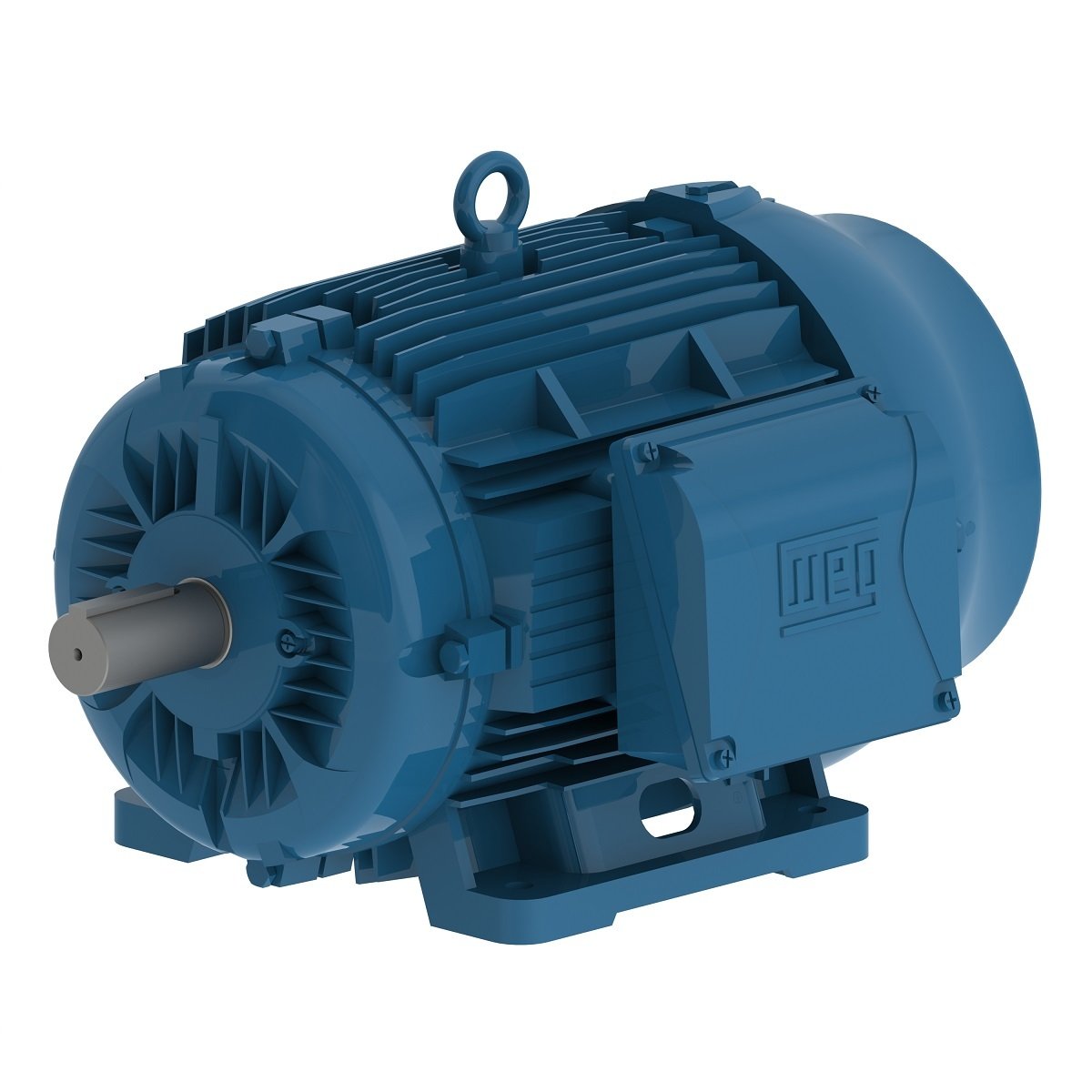

01812ET3Y200L-W22 WEG 25HP/18.5kW IEC TRU-Metric Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 01812ET3Y200L-W22

Selected accessories will also be added to cart

$3,664.50 / Each

Quantity:

IC411-TEFC, IP55, 200L Frame, 460/380-415VAC 3-Phase 50/60Hz, 11586869, Foot Mount, Cast Iron Frame, 55mm Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	200L
Output	25 HP (18.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	980 rpm
Slip	2.00 %
Rated voltage	380 V
Rated current	36.3 A
L. R. Amperes	225 A
LRC	6.2
No load current	14.6 A
Rated torque	132 ft.lb
Locked rotor torque	190 %
Breakdown torque	250 %
Locked rotor time	34s (cold) 19s (hot)

Moment of inertia (J)	9.16 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	60.0 dB(A)
Approx. weight³	518 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.2	92.4	92.2

Power factor

50%	75%	100%
0.69	0.79	0.84

Frame	200L
Output	25 HP (18.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	980 rpm
Slip	2.00 %
Rated voltage	400 V
Rated current	35.2 A
L. R. Amperes	218 A
LRC	6.2
No load current	16.0 A
Rated torque	132 ft.lb
Locked rotor torque	220 %
Breakdown torque	280 %
Locked rotor time	34s (cold) 19s (hot)

Moment of inertia (J)	9.16 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	60.0 dB(A)
Approx. weight³	518 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.7	92.3	92.5

Power factor

50%	75%	100%
0.65	0.76	0.82

Frame	200L
Output	25 HP (18.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	980 rpm
Slip	2.00 %
Rated voltage	415 V
Rated current	34.7 A
L. R. Amperes	215 A
LRC	6.2
No load current	17.3 A
Rated torque	132 ft.lb
Locked rotor torque	240 %
Breakdown torque	300 %
Locked rotor time	34s (cold) 19s (hot)

Moment of inertia (J)	9.16 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	60.0 dB(A)
Approx. weight³	518 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.2	92.1	92.6

Power factor

50%	75%	100%
0.61	0.73	0.80

Frame	200L
Output	25 HP (18.5 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1180 rpm
Slip	1.67 %
Rated voltage	460 V
Rated current	30.8 A
L. R. Amperes	225 A
LRC	7.3
No load current	15.2 A
Rated torque	110 ft.lb
Locked rotor torque	260 %
Breakdown torque	310 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	9.16 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	62.0 dB(A)
Approx. weight³	518 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.7	93.0

Power factor

50%	75%	100%
0.62	0.74	0.81

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	2xM50x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
