/Products/Electric Motors/3 Phase Metric/WEG/Foot Mount, W22/01836ET3Y160L-W22 WEG 25HP/18.5kW IEC TRU-Metric Electric Motor, 3600RPM

Product ID: 01836ET3Y160L-W22

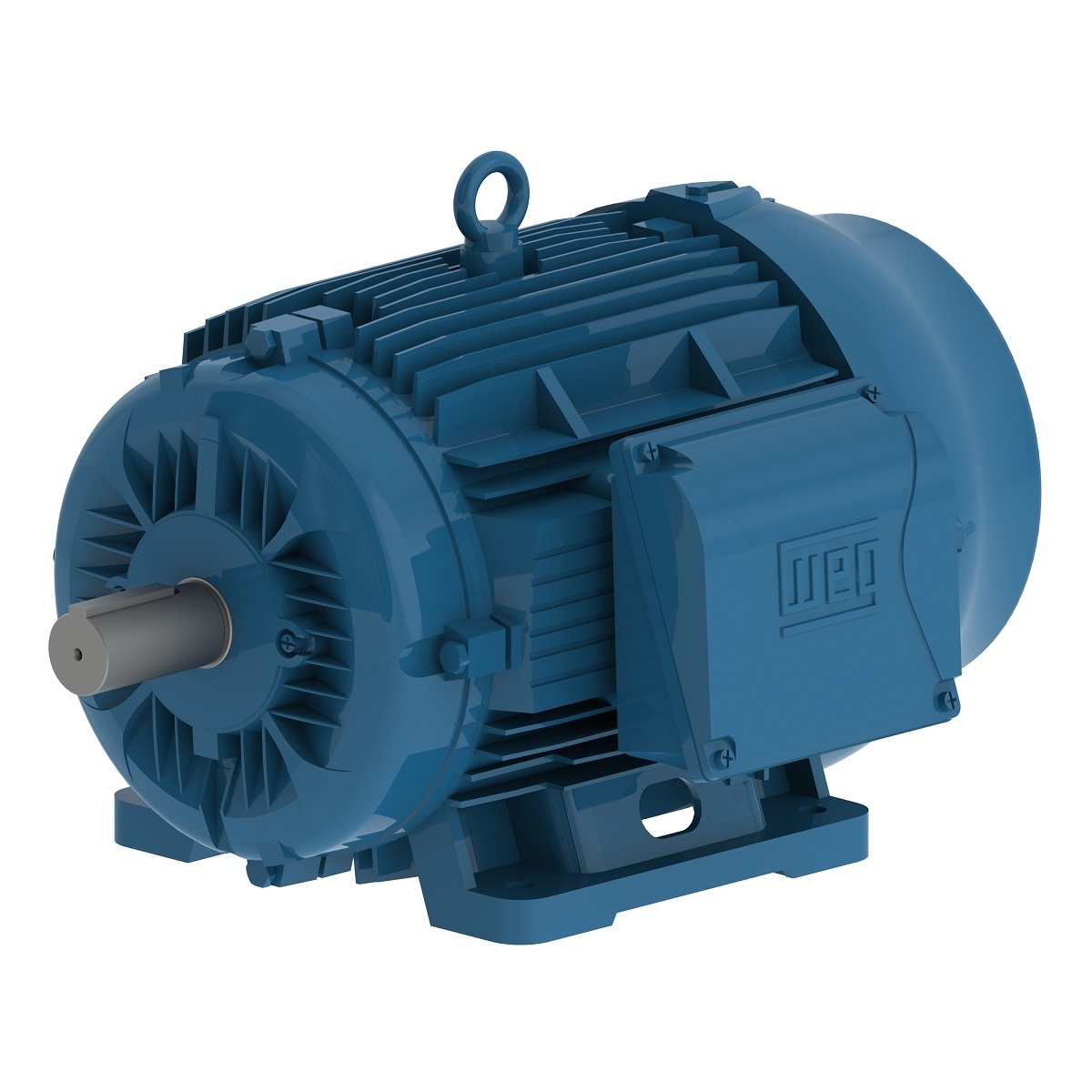

01836ET3Y160L-W22 WEG 25HP/18.5kW IEC TRU-Metric Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 01836ET3Y160L-W22

Selected accessories will also be added to cart

$2,193.75 / Each

Quantity:

IC411 - TEFC, IP55, 160L Frame, 380-415/460VAC 3-Phase 50/60Hz, Foot Mount, 11564445, 42mm Keyed Shaft, Cast Iron Frame

Details
Purchase Components

Product features

Standard	NEMA MG-1
Frequency	60 Hz
Voltage	460//380-415 V
Number of poles	2
Degree of Protection	IP55
Synchronous speed	3600 rpm

Output rating	25 HP
Mounting	Foot-mounted
Flange	Without
Mounting	B3L(E)
Terminal box¹	Right position
Enclosure	IC411 - TEFC

Electric Motors

Frame	160L
Output	25 HP (18.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2945 rpm
Slip	1.83 %
Rated voltage	380 V
Rated current	34.3 A
L. R. Amperes	288 A
LRC	8.4
No load current	12.0 A
Rated torque	44.0 ft.lb
Locked rotor torque	250 %
Breakdown torque	320 %
Locked rotor time	14s (cold) 8s (hot)

Moment of inertia (J)	1.32 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	326 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	92.9	93.0

Power factor

50%	75%	100%
0.74	0.83	0.88

Frame	160L
Output	25 HP (18.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2950 rpm
Slip	1.67 %
Rated voltage	400 V
Rated current	33.3 A
L. R. Amperes	280 A
LRC	8.4
No load current	13.0 A
Rated torque	43.9 ft.lb
Locked rotor torque	280 %
Breakdown torque	360 %
Locked rotor time	14s (cold) 8s (hot)

Moment of inertia (J)	1.32 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	326 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.0	92.9	93.2

Power factor

50%	75%	100%
0.70	0.80	0.86

Frame	160L
Output	25 HP (18.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2955 rpm
Slip	1.50 %
Rated voltage	415 V
Rated current	32.8 A
L. R. Amperes	276 A
LRC	8.4
No load current	14.0 A
Rated torque	43.8 ft.lb
Locked rotor torque	310 %
Breakdown torque	390 %
Locked rotor time	14s (cold) 8s (hot)

Moment of inertia (J)	1.32 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	326 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.6	92.8	93.3

Power factor

50%	75%	100%
0.66	0.77	0.84

Frame	160L
Output	25 HP (18.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3550 rpm
Slip	1.39 %
Rated voltage	460 V
Rated current	29.9 A
L. R. Amperes	266 A
LRC	8.9
No load current	11.5 A
Rated torque	36.5 ft.lb
Locked rotor torque	330 %
Breakdown torque	440 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	1.32 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	B3L(E)
Rotation¹	Both (CW and CCW)
Noise level²	72.0 dB(A)
Approx. weight³	326 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
