/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/W22 General Purpose, TEFC/Foot Mount/02009ET3E324T-W22 WEG 20HP Severe Duty Electric Motor, 900RPM

Product ID: 02009ET3E324T-W22

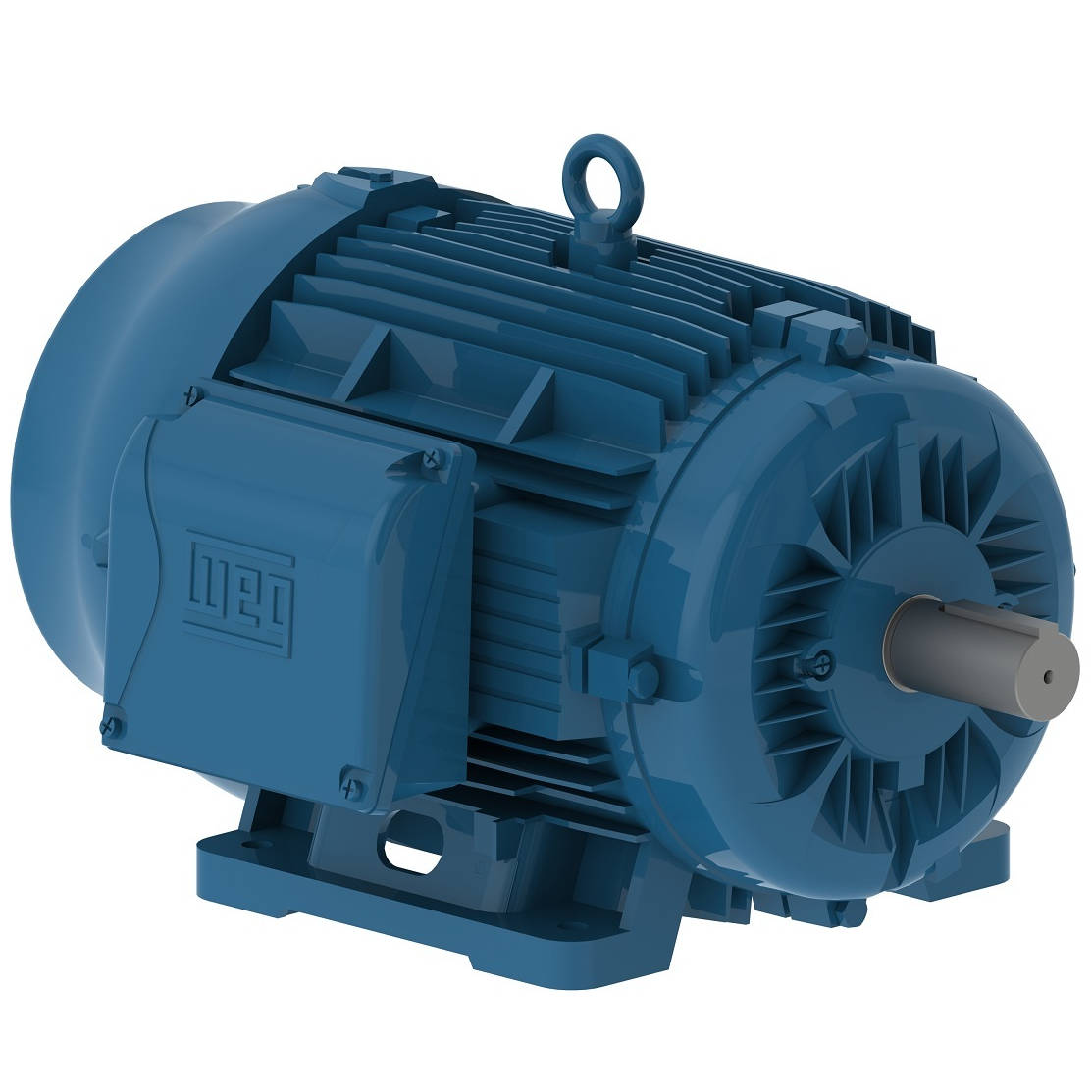

02009ET3E324T-W22 WEG 20HP Severe Duty Electric Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 02009ET3E324T-W22

Selected accessories will also be added to cart

$5,641.71 / Each

Quantity:

IC411 - TEFC, IP55, 324T/326T Frame, 230/460/380VAC 60Hz 3 Phase, 12447063, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-1/8" Keyed Shaft

Electric Motors

Frame	324/6T
Output	20 HP (15 kW)
Number of Poles	8
Frequency	60 Hz
Rated speed	880 rpm
Slip	2.22 %
Rated voltage	230/460 V
Rated current	56.6/28.3 A
L. R. Amperes	283/142 A
LRC	5.0x(Code G)
No load current	32.0/16.0 A
Rated torque	119 ft.lb
Locked rotor torque	190 %
Breakdown torque	220 %
Locked rotor time	48s (cold) 27s (hot)

Moment of inertia (J)	9.37 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	509 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.5	91.0	91.0

Power factor

50%	75%	100%
0.54	0.66	0.73

Frame	324/6T
Output	15 HP (11 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	730 rpm
Slip	2.67 %
Rated voltage	380 V
Rated current	26.5 A
L. R. Amperes	133 A
LRC	5.0x(Code G)
No load current	15.7 A
Rated torque	108 ft.lb
Locked rotor torque	190 %
Breakdown torque	229 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	9.37 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	509 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	89.6	89.5

Power factor

50%	75%	100%
0.51	0.64	0.72

Frame	324/6T
Output	15 HP (11 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	730 rpm
Slip	2.67 %
Rated voltage	400 V
Rated current	26.4 A
L. R. Amperes	142 A
LRC	5.4x(Code H)
No load current	17.6 A
Rated torque	108 ft.lb
Locked rotor torque	210 %
Breakdown torque	260 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	9.37 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	509 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.4	89.0	89.3

Power factor

50%	75%	100%
0.46	0.60	0.69

Frame	324/6T
Output	15 HP (11 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	735 rpm
Slip	2.00 %
Rated voltage	415 V
Rated current	27.1 A
L. R. Amperes	152 A
LRC	5.6x(Code J)
No load current	19.3 A
Rated torque	107 ft.lb
Locked rotor torque	240 %
Breakdown torque	280 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	9.37 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	509 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.3	88.5	89.0

Power factor

50%	75%	100%
0.42	0.56	0.65

Frame	324/6T
Output	20 HP (15 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	725 rpm
Slip	3.33 %
Rated voltage	380 V
Rated current	33.4 A
L. R. Amperes	134 A
LRC	4.0x(Code D)
No load current	15.7 A
Rated torque	145 ft.lb
Locked rotor torque	140 %
Breakdown torque	170 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	9.37 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	509 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.5	89.5	88.5

Power factor

50%	75%	100%
0.61	0.72	0.77

Frame	324/6T
Output	20 HP (15 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	725 rpm
Slip	3.33 %
Rated voltage	400 V
Rated current	32.6 A
L. R. Amperes	143 A
LRC	4.4x(Code E)
No load current	17.6 A
Rated torque	145 ft.lb
Locked rotor torque	160 %
Breakdown torque	190 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	9.37 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	509 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	89.5	88.5

Power factor

50%	75%	100%
0.56	0.68	0.75

Frame	324/6T
Output	20 HP (15 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	730 rpm
Slip	2.67 %
Rated voltage	415 V
Rated current	32.7 A
L. R. Amperes	150 A
LRC	4.6x(Code F)
No load current	19.3 A
Rated torque	144 ft.lb
Locked rotor torque	180 %
Breakdown torque	210 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	9.37 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	509 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	89.5	88.5

Power factor

50%	75%	100%
0.52	0.65	0.72

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C3)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
Fan material	Plastic
Screw cap	CARBON STEEL SAE 1010/20
NDE bearing Seal	V'Ring
DE bearing Seal	V'Ring
Cable Press Material	Sem
