/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/W22 General Purpose, TEFC/Foot Mount/02009ET3E286T-W22 WEG 20HP Severe Duty Electric Motor, 900RPM

Product ID: 02009ET3E286T-W22

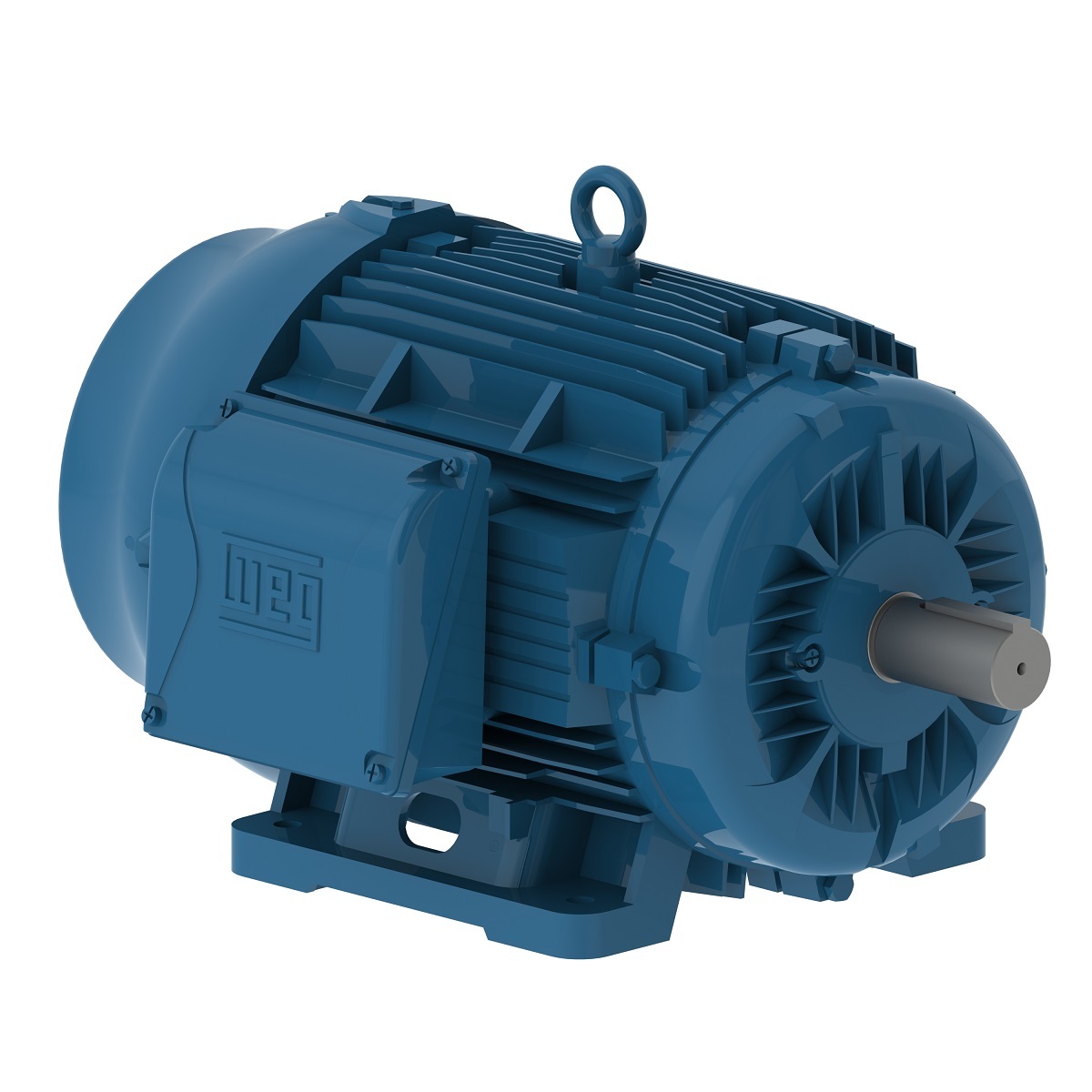

02009ET3E286T-W22 WEG 20HP Severe Duty Electric Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 02009ET3E286T-W22

Selected accessories will also be added to cart

$5,210.06 / Each

Quantity:

IC411 - TEFC, IP55, 284T/286T Frame, 208-230/460VAC 60Hz 3 Phase, 13506377, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-7/8" Keyed Shaft

Electric Motors

Frame	284/6T
Output	20 HP (15 kW)
Number of Poles	8
Frequency	60 Hz
Rated speed	880 rpm
Slip	2.22 %
Rated voltage	208-230/460 V
Rated current	62.4-56.4/28.2 A
L. R. Amperes	374-338/169 A
LRC	6.0x(Code H)
No load current	29.9-27.0/13.5 A
Rated torque	119 ft.lb
Locked rotor torque	220 %
Breakdown torque	229 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	8.70 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	54.0 dB(A)
Approx. weight³	472 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	89.5	90.2

Power factor

50%	75%	100%
0.55	0.67	0.74

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C3)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
Fan material	Plastic
Screw cap	CARBON STEEL SAE 1010/20
NDE bearing Seal	V'Ring
DE bearing Seal	V'Ring
Cable Press Material	Sem
