/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/WEG 3-Phase Cast Iron, ODP, W40 Electric Motors/Foot Mount, C-Face/02012OT3H286TC-W40 WEG 20HP, General Purpose Electric Motor, 1200RPM

Product ID: 02012OT3H286TC-W40

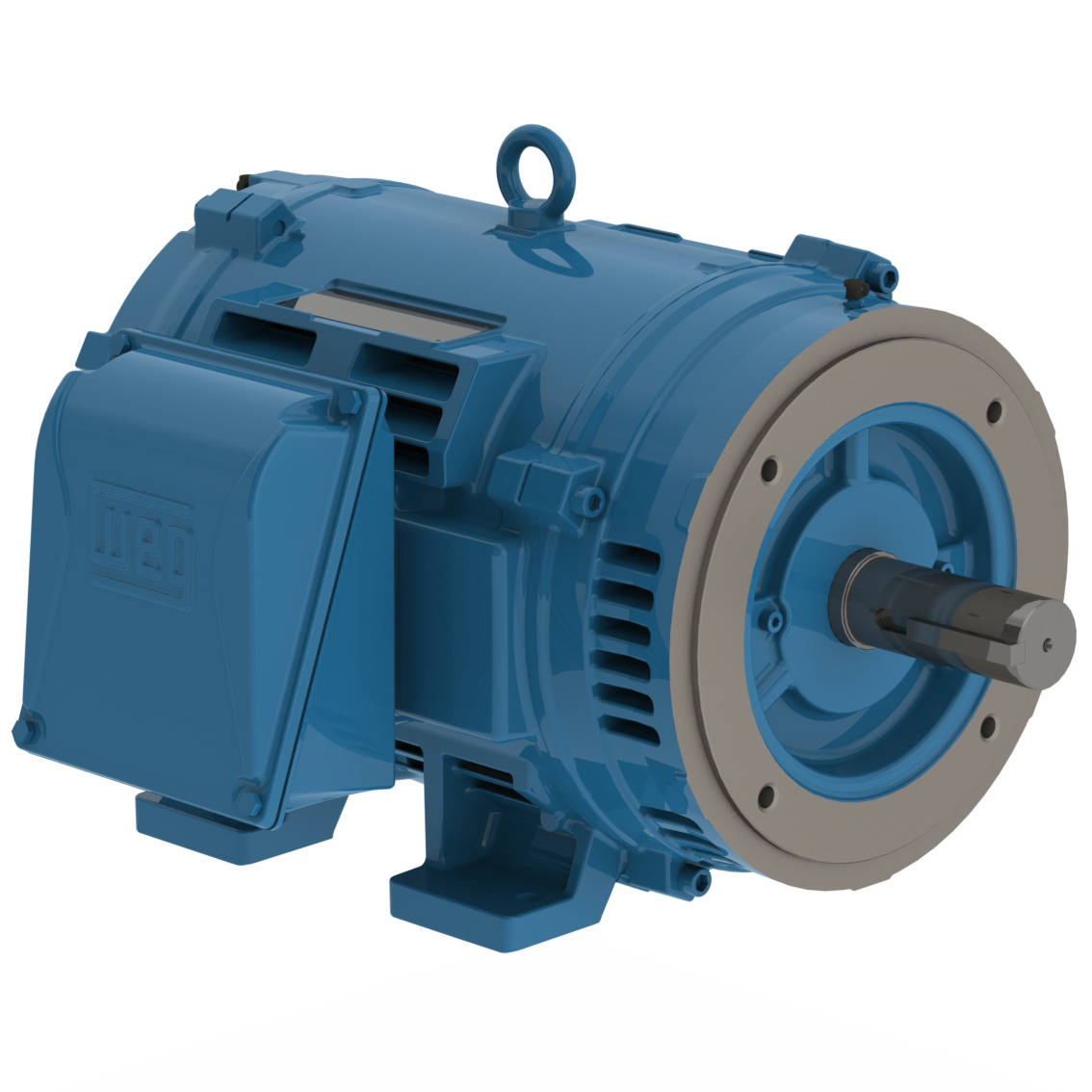

02012OT3H286TC-W40 WEG 20HP, General Purpose Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 02012OT3H286TC-W40

Selected accessories will also be added to cart

$2,775.91 / Each

Quantity:

IC01 - ODP, IP23, 284TC/286TC Frame, 575VAC 60Hz 3 Phase, 14494190, NEMA Premium Efficiency, Foot Mounted, C-Face, Cast Iron Frame, 1-7/8" Keyed Shaft

Electric Motors

Frame	284/6TC
Output	20 HP (15 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1177 rpm
Slip	1.92 %
Rated voltage	575 V
Rated current	19.4 A
L. R. Amperes	124 A
LRC	6.4x(Code G)
No load current	7.52 A
Rated torque	89.2 ft.lb
Locked rotor torque	229 %
Breakdown torque	260 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	6.89 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	59.0 dB(A)
Approx. weight?	390 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.7	92.4	92.4

Power factor

50%	75%	100%
0.71	0.80	0.84

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	6
