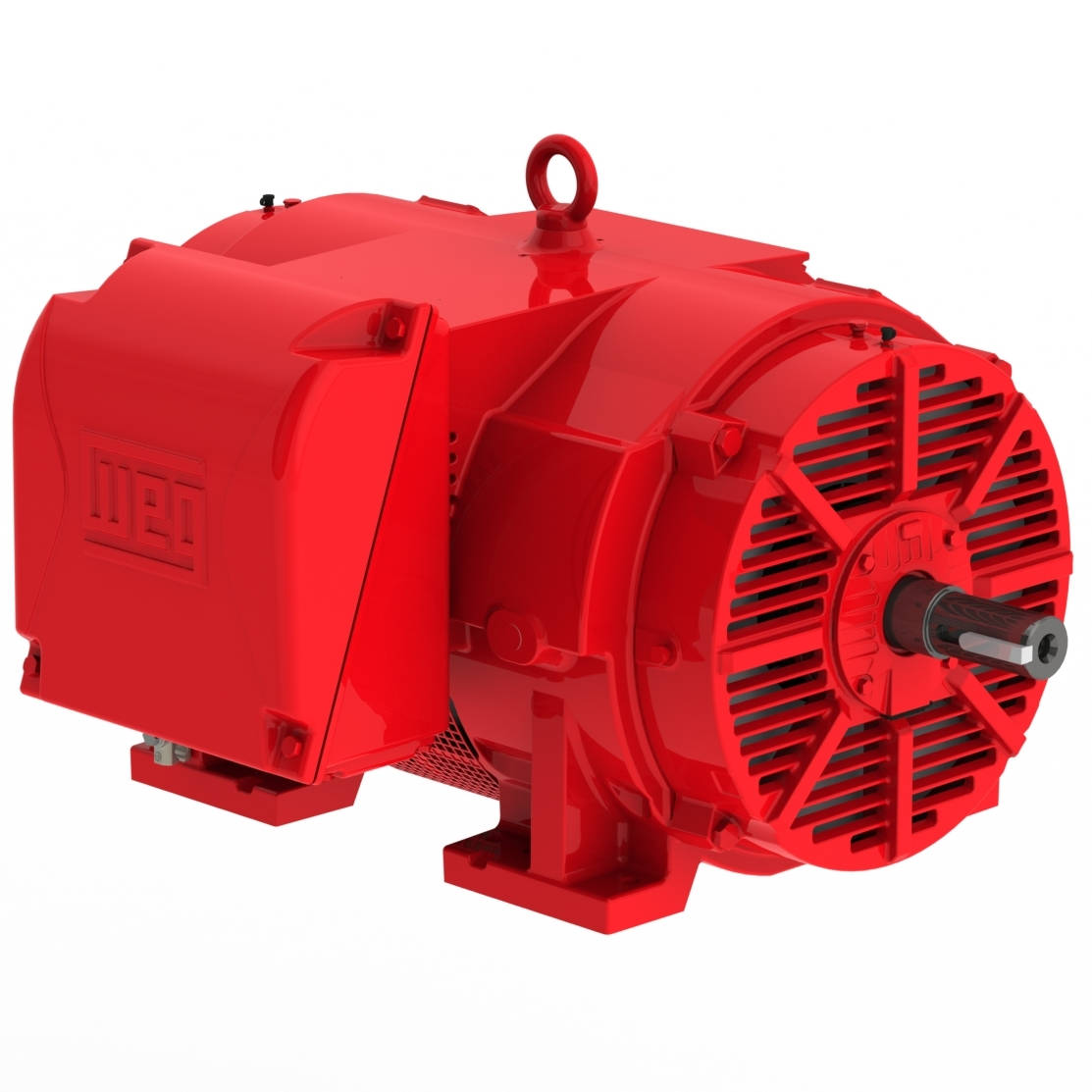

02015OP3OFP256T-W40 WEG 20HP Fire Pump Electric Motor, 1500RPM
Enlarge Photo

Product ID: 02015OP3OFP256T-W40

02015OP3OFP256T-W40 WEG 20HP Fire Pump Electric Motor, 1500RPM

MFG: WEG Electric Corporation
MFG Part Number: 02015OP3OFP256T-W40

Selected accessories will also be added to cart
$1,629.59 / Each
Quantity:
IC01 - ODP, IP23, 254T/256T Frame, 380-400-415VAC 50Hz 3 Phase, 15730613, High Efficiency, Foot Mounted, Cast Iron Frame, 1-5/8" Keyed Shaft

Electric Motors

Frame254/6T
Output20 HP (15 kW)
Number of Poles4
Frequency50 Hz
Rated speed1464 rpm
Slip2.40 %
Rated voltage380 V
Rated current29.8 A
L. R. Amperes167 A
LRC5.6x(Code F)
No load current10.5 A
Rated torque71.7 ft.lb
Locked rotor torque200 %
Breakdown torque250 %
Locked rotor time55s (cold) 31s (hot)
Moment of inertia (J)3.29 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +50?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?342 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.0  91.0  91.0

Power factor

50%75%100%
0.69  0.80  0.84
Frame254/6T
Output20 HP (15 kW)
Number of Poles4
Frequency50 Hz
Rated speed1468 rpm
Slip2.13 %
Rated voltage400 V
Rated current29.0 A
L. R. Amperes174 A
LRC6.0x(Code G)
No load current11.5 A
Rated torque71.5 ft.lb
Locked rotor torque229 %
Breakdown torque280 %
Locked rotor time52s (cold) 29s (hot)
Moment of inertia (J)3.29 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +50?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?342 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.0  91.0  91.0

Power factor

50%75%100%
0.65  0.77  0.82
Frame254/6T
Output20 HP (15 kW)
Number of Poles4
Frequency50 Hz
Rated speed1470 rpm
Slip2.00 %
Rated voltage415 V
Rated current28.8 A
L. R. Amperes176 A
LRC6.1x(Code H)
No load current12.0 A
Rated torque71.4 ft.lb
Locked rotor torque250 %
Breakdown torque300 %
Locked rotor time50s (cold) 28s (hot)
Moment of inertia (J)3.29 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +50?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?342 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.0  91.0  91.7

Power factor

50%75%100%
0.61  0.74  0.79

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3002 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Type
Electric Motor
Input Phase
3-Phase
Horsepower
20HP
Enclosure
ODP
Speed
1500RPM
Frame
254T
Frame
256T
Application
Fire Pump
