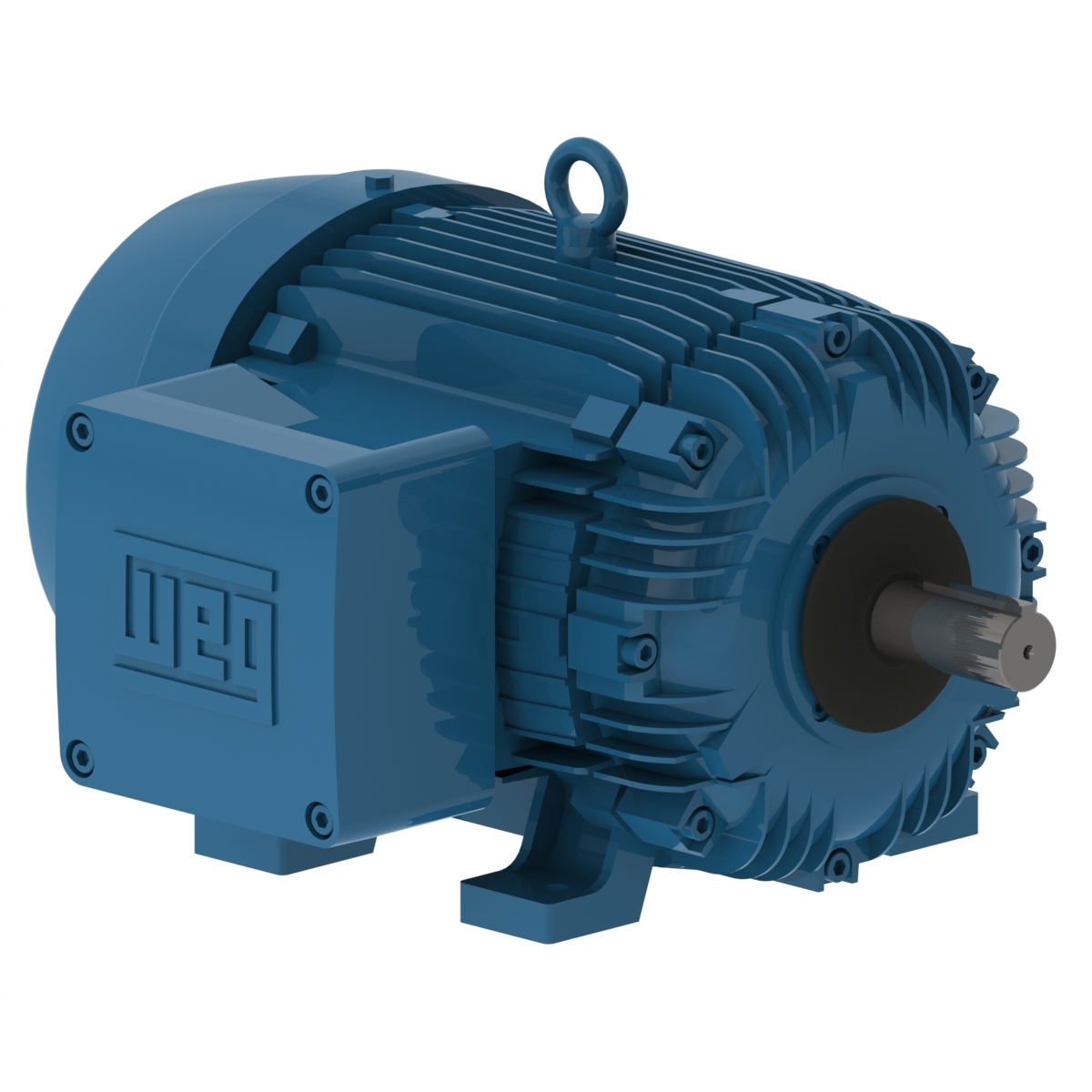

02018XT3E256T WEG 20HP Explosion Proof Electric Motor, 1800RPM
Enlarge Photo

Product ID: 02018XT3E256T

02018XT3E256T WEG 20HP Explosion Proof Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 02018XT3E256T

Selected accessories will also be added to cart
$2,677.12 / Each
Quantity:
IC411 - TEFC, IP55, 256T Frame, 208-230/460VAC 3-Phase 60Hz, 14390089, Foot Mount, Cast Iron, NEMA Premium Efficiency, 1-5/8" Keyed Shaft

Electric Motors

Frame256T
Output20 HP (15 kW)
Number of Poles4
Frequency60 Hz
Rated speed1770 rpm
Slip1.67 %
Rated voltage208-230/460 V
Rated current55.3-50.0/25.0 A
L. R. Amperes415-375/188 A
LRC7.5x(Code J)
No load current20.3-23.6/11.8 A
Rated torque58.5 ft.lb
Locked rotor torque300 %
Breakdown torque300 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)2.89 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?69.0 dB(A)
Approx. weight?391 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.7  92.4  93.0

Power factor

50%75%100%
0.63  0.75  0.81
Frame256T
Output20 HP (15 kW)
Number of Poles4
Frequency50 Hz
Rated speed1455 rpm
Slip3.00 %
Rated voltage380 V
Rated current29.8 A
L. R. Amperes173 A
LRC5.8x(Code G)
No load current11.7 A
Rated torque71.2 ft.lb
Locked rotor torque210 %
Breakdown torque220 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)2.89 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?67.0 dB(A)
Approx. weight?391 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
92.4  91.7  91.0

Power factor

50%75%100%
0.69  0.79  0.84
Frame256T
Output20 HP (15 kW)
Number of Poles4
Frequency50 Hz
Rated speed1460 rpm
Slip2.67 %
Rated voltage400 V
Rated current29.0 A
L. R. Amperes186 A
LRC6.4x(Code H)
No load current12.8 A
Rated torque71.0 ft.lb
Locked rotor torque240 %
Breakdown torque240 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)2.89 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?67.0 dB(A)
Approx. weight?391 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.7  91.7  91.0

Power factor

50%75%100%
0.65  0.77  0.82
Frame256T
Output20 HP (15 kW)
Number of Poles4
Frequency50 Hz
Rated speed1465 rpm
Slip2.33 %
Rated voltage415 V
Rated current28.4 A
L. R. Amperes199 A
LRC7.0x(Code J)
No load current13.8 A
Rated torque70.7 ft.lb
Locked rotor torque260 %
Breakdown torque260 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)2.89 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?67.0 dB(A)
Approx. weight?391 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.7  91.7  91.7

Power factor

50%75%100%
0.62  0.74  0.80

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainSinterized, Exd
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 202P (ISO 12944 - C4)
Grounding LugsSingle
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Winding thermal protectionThermostat - 2 wires 1 per phase 155?C
Balancing Method1/2 Key
Drip CoverWithout
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Horsepower
20HP
Frame
256T
Enclosure
TEFC
Enclosure
TEFC
Input Voltage
208VAC
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
230VAC
Input Voltage
460VAC
Input Voltage
460VAC
