/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Fire Pump/Foot Mount, Cast Iron/02018OP3EFP256T-W40 WEG 20HP Fire Pump Electric Motor, 1800RPM

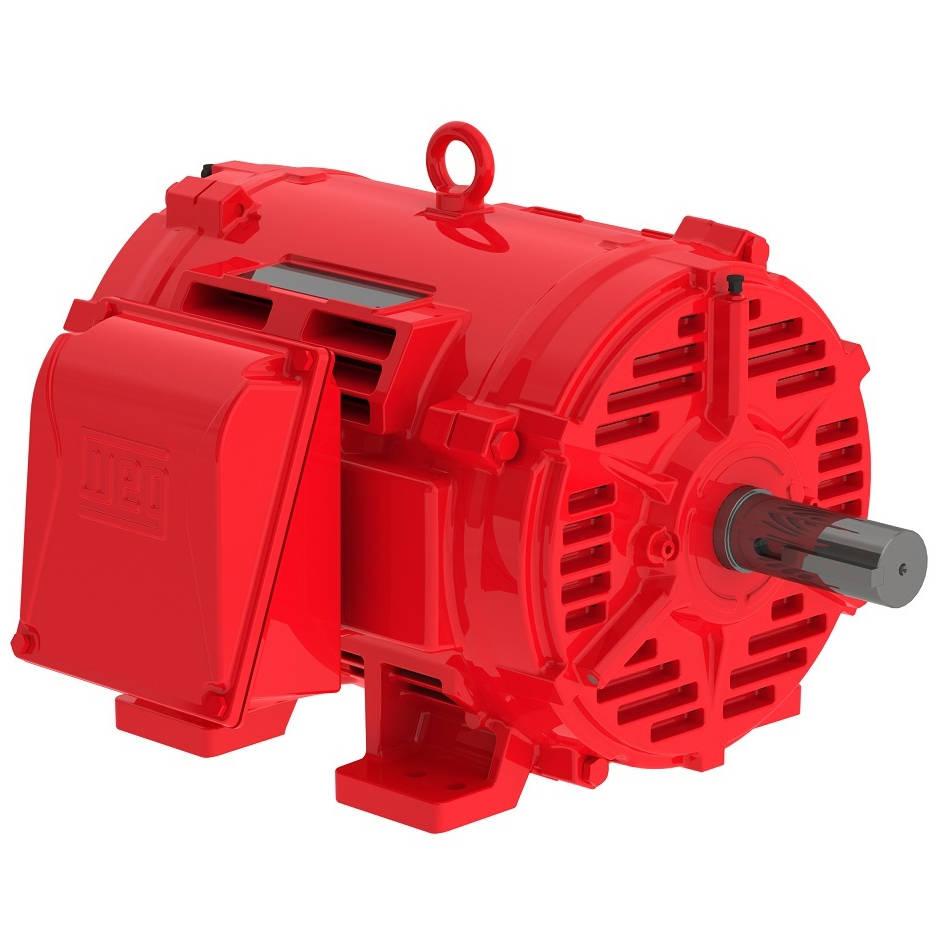

02018OP3EFP256T-W40 WEG 20HP Fire Pump Electric Motor, 1800RPM
Enlarge Photo

Product ID: 02018OP3EFP256T-W40

02018OP3EFP256T-W40 WEG 20HP Fire Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 02018OP3EFP256T-W40

Selected accessories will also be added to cart
$1,358.14 / Each
Quantity:
IC01 - ODP, IP23, 254T/256T Frame, 230/460VAC 60Hz 3 Phase, 14490498, High Efficiency, Foot Mounted, Cast Iron Frame, 1-5/8" Keyed Shaft

Electric Motors

Frame254/6T
Output20 HP (15 kW)
Number of Poles4
Frequency60 Hz
Rated speed1760 rpm
Slip2.22 %
Rated voltage230/460 V
Rated current49.2/24.6 A
L. R. Amperes285/143 A
LRC5.8x(Code G)
No load current20.4/10.2 A
Rated torque59.7 ft.lb
Locked rotor torque229 %
Breakdown torque270 %
Locked rotor time23s (cold) 13s (hot)
Moment of inertia (J)2.63 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?206 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
90.2  91.0  91.0

Power factor

50%75%100%
0.70  0.80  0.84
Frame254/6T
Output20 HP (15 kW)
Number of Poles4
Frequency50 Hz
Rated speed1460 rpm
Slip2.67 %
Rated voltage380 V
Rated current29.4 A
L. R. Amperes156 A
LRC5.3x(Code F)
No load current10.1 A
Rated torque71.9 ft.lb
Locked rotor torque150 %
Breakdown torque200 %
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)2.63 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?206 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
88.5  88.5  89.0

Power factor

50%75%100%
0.76  0.84  0.87
Frame254/6T
Output20 HP (15 kW)
Number of Poles4
Frequency50 Hz
Rated speed1465 rpm
Slip2.33 %
Rated voltage400 V
Rated current28.1 A
L. R. Amperes166 A
LRC5.9x(Code G)
No load current10.9 A
Rated torque71.7 ft.lb
Locked rotor torque190 %
Breakdown torque210 %
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)2.63 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?206 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
89.5  89.5  89.7

Power factor

50%75%100%
0.72  0.82  0.86
Frame254/6T
Output20 HP (15 kW)
Number of Poles4
Frequency50 Hz
Rated speed1465 rpm
Slip2.33 %
Rated voltage415 V
Rated current27.3 A
L. R. Amperes169 A
LRC6.2x(Code G)
No load current11.7 A
Rated torque71.7 ft.lb
Locked rotor torque210 %
Breakdown torque229 %
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)2.63 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?206 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
89.5  90.2  90.0

Power factor

50%75%100%
0.69  0.80  0.85

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3002 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Horsepower
20HP
Enclosure
ODP
Input Voltage
230VAC
Input Voltage
460VAC
Frame
254T
Frame
256T
Application
Fire Pump
