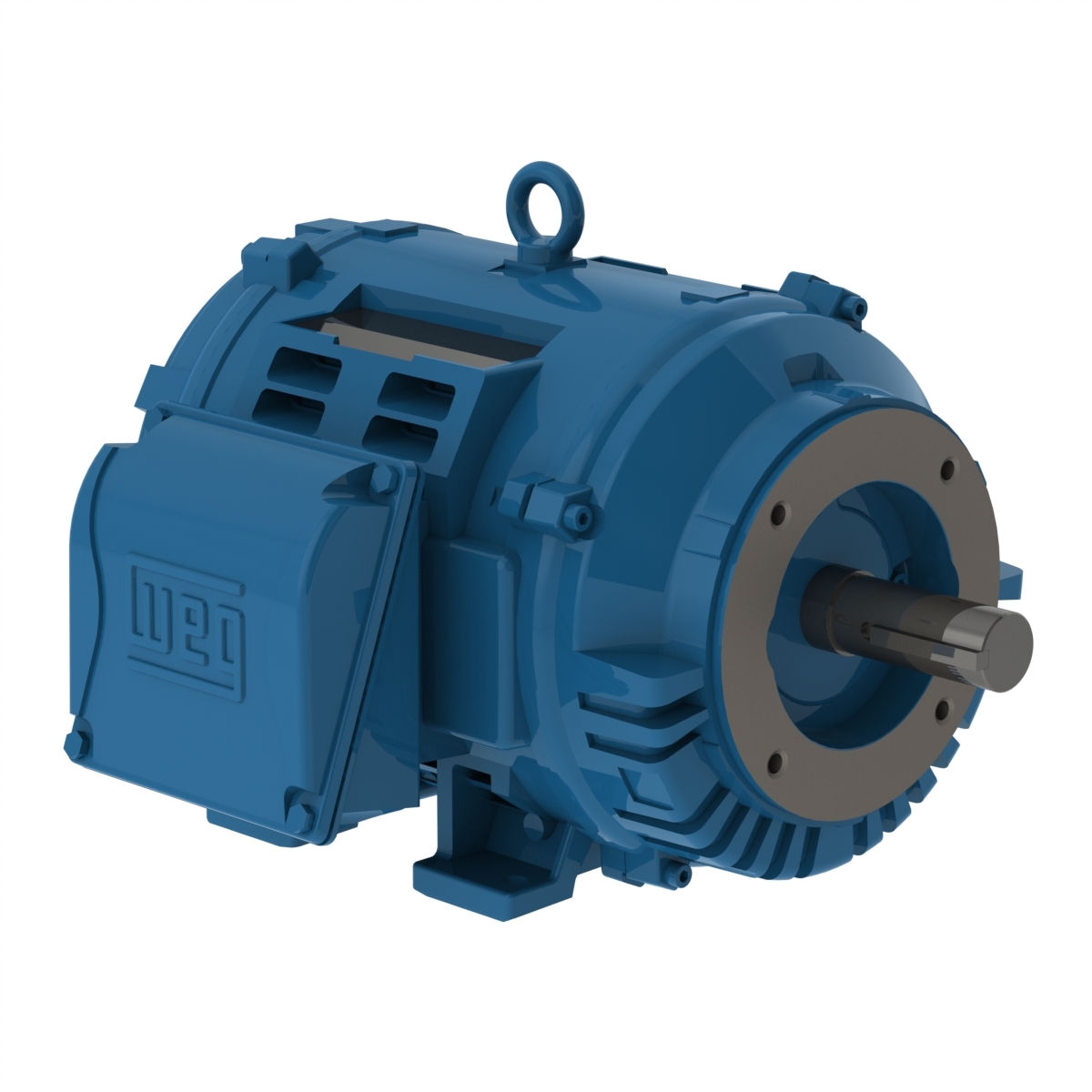

02018OT3E256TC-W40 WEG 20HP, General Purpose Electric Motor, 1800RPM
Enlarge Photo

Product ID: 02018OT3E256TC-W40

02018OT3E256TC-W40 WEG 20HP, General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 02018OT3E256TC-W40

Selected accessories will also be added to cart
$1,691.00 / Each
Quantity:
IC01 - ODP, IP23, 254TC/256TC Frame, 230/460VAC 60Hz 3 Phase, 14494774, NEMA Premium Efficiency, Foot Mounted, C-Face, 1-5/8" Keyed Shaft

Electric Motors

Frame254/6TC
Output20 HP (15 kW)
Number of Poles4
Frequency60 Hz
Rated speed1765 rpm
Slip1.94 %
Rated voltage230/460 V
Rated current48.2/24.1 A
L. R. Amperes308/154 A
LRC6.4x(Code G)
No load current20.0/10.0 A
Rated torque59.5 ft.lb
Locked rotor torque220 %
Breakdown torque280 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)3.13 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?62.0 dB(A)
Approx. weight?303 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
92.4  93.0  93.0

Power factor

50%75%100%
0.69  0.79  0.84
Frame254/6TC
Output15 HP (11 kW)
Number of Poles4
Frequency50 Hz
Rated speed1470 rpm
Slip2.00 %
Rated voltage380 V
Rated current22.0 A
L. R. Amperes154 A
LRC7.0x(Code H)
No load current9.90 A
Rated torque53.6 ft.lb
Locked rotor torque250 %
Breakdown torque300 %
Locked rotor time23s (cold) 13s (hot)
Moment of inertia (J)3.13 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?62.0 dB(A)
Approx. weight?303 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.1  91.5  91.5

Power factor

50%75%100%
0.66  0.77  0.83
Frame254/6TC
Output15 HP (11 kW)
Number of Poles4
Frequency50 Hz
Rated speed1475 rpm
Slip1.67 %
Rated voltage400 V
Rated current21.4 A
L. R. Amperes156 A
LRC7.3x(Code J)
No load current10.7 A
Rated torque53.4 ft.lb
Locked rotor torque240 %
Breakdown torque330 %
Locked rotor time23s (cold) 13s (hot)
Moment of inertia (J)3.13 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?62.0 dB(A)
Approx. weight?303 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.1  91.5  91.5

Power factor

50%75%100%
0.62  0.74  0.81
Frame254/6TC
Output15 HP (11 kW)
Number of Poles4
Frequency50 Hz
Rated speed1475 rpm
Slip1.67 %
Rated voltage415 V
Rated current21.2 A
L. R. Amperes155 A
LRC7.3x(Code J)
No load current11.3 A
Rated torque53.4 ft.lb
Locked rotor torque300 %
Breakdown torque360 %
Locked rotor time25s (cold) 14s (hot)
Moment of inertia (J)3.13 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?62.0 dB(A)
Approx. weight?303 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.1  91.5  91.5

Power factor

50%75%100%
0.59  0.72  0.79

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Horsepower
20HP
Enclosure
ODP
Input Voltage
230VAC
Input Voltage
460VAC
Frame
254TC/256TC
