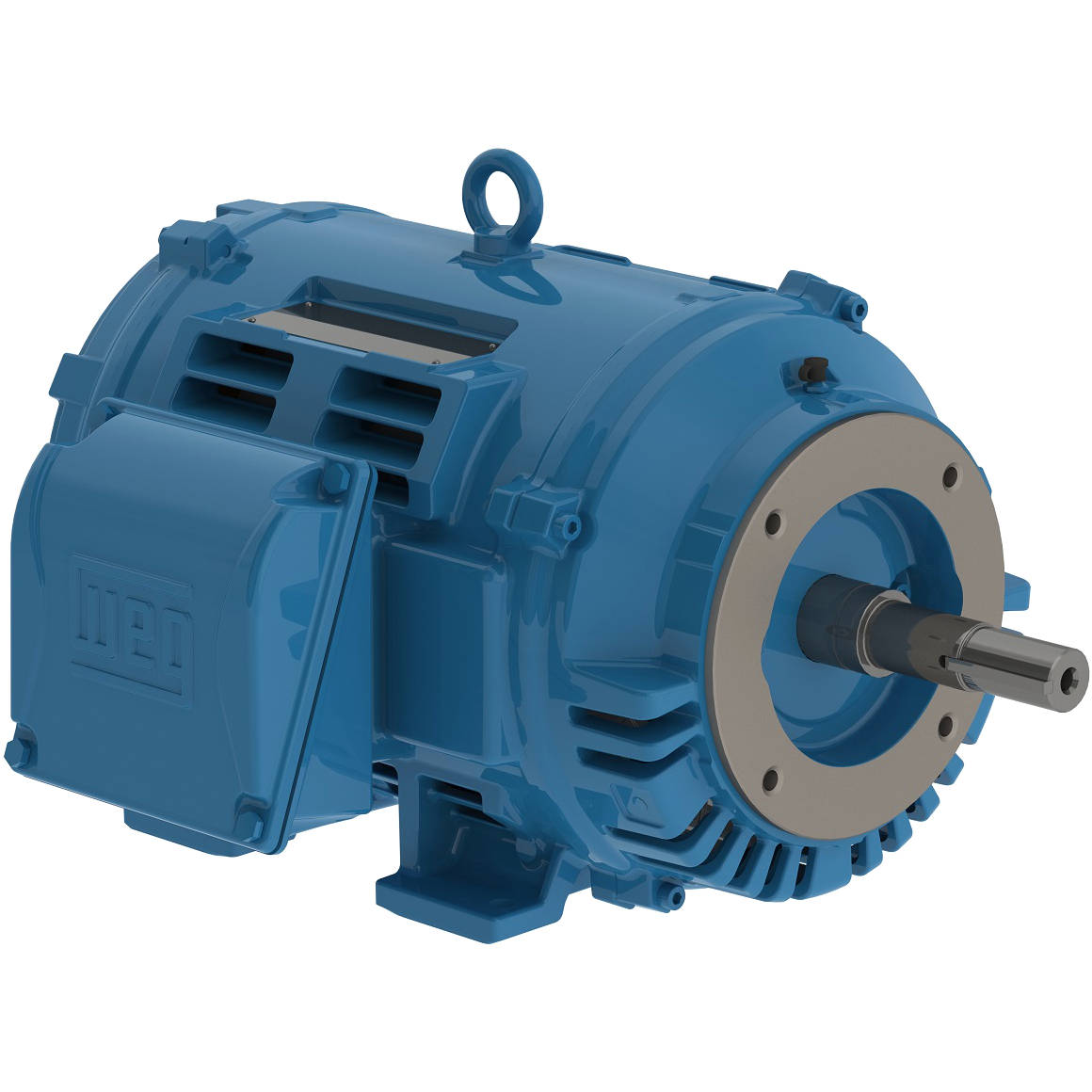

02018OT3H256JM-W40 WEG 20HP JM Close-Coupled Pump Electric Motor, 1800RPM
Enlarge Photo

Product ID: 02018OT3H256JM-W40

02018OT3H256JM-W40 WEG 20HP JM Close-Coupled Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 02018OT3H256JM-W40

Selected accessories will also be added to cart
$2,147.57 / Each
Quantity:
IC01 - ODP, IP23, 254JM/256JM Frame, 575VAC, 60Hz, 3 Phase

Electric Motors

Frame 254/6JM
Output 20 HP (15 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1770 rpm
Slip 1.67 %
Rated voltage 575 V
Rated current 19.3 A
L. R. Amperes 123 A
LRC 6.4x(Code G)
No load current 8.00 A
Rated torque 59.3 ft.lb
Locked rotor torque 220 %
Breakdown torque 250 %
Locked rotor time 46s (cold) 26s (hot)
Moment of inertia (J) 3.13 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 303 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.4  93.0  93.0

Power factor

50% 75% 100%
0.69  0.79  0.84

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 1 1/2"
Terminal Block Without
Shaft Locking Device Without
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Horsepower
20HP
Enclosure
ODP
Input Voltage
575VAC
Frame
254JM/256JM
