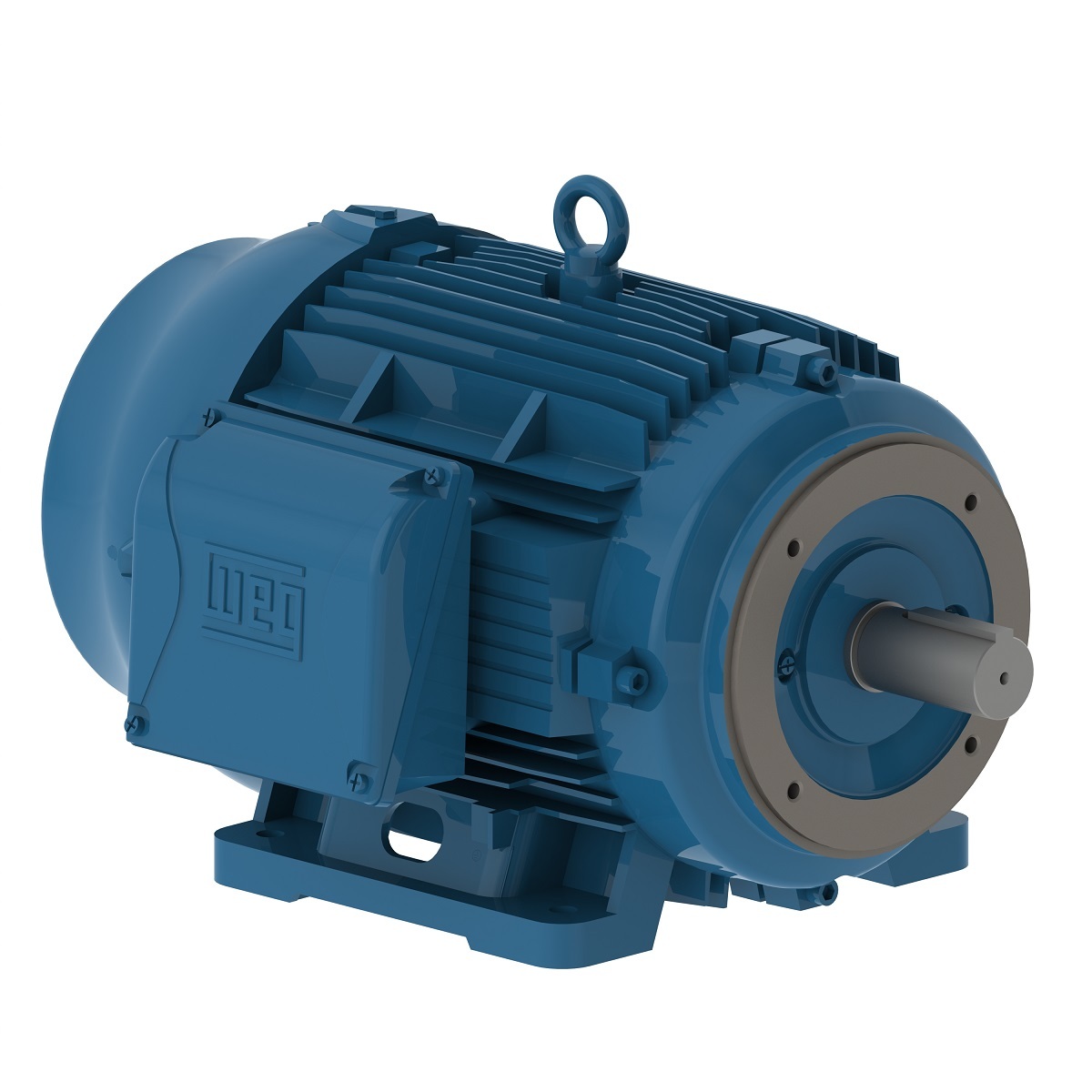

02036ET3E256TC-W22 WEG 20HP Severe Duty Electric Motor, 3600RPM
Enlarge Photo

Product ID: 02036ET3E256TC-W22

02036ET3E256TC-W22 WEG 20HP Severe Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 02036ET3E256TC-W22

Selected accessories will also be added to cart
$2,181.39 / Each
Quantity:
IC411 - TEFC, IP55, 254TC/256TC Frame, 208-230/460V 3-Phase 60Hz, C-Face, Foot Mount, NEMA Premium Efficiency, Cast Iron, 11440446

Electric Motors

Frame254/6TC
Output20 HP (15 kW)
Number of Poles2
Frequency60 Hz
Rated speed3520 rpm
Slip2.22 %
Rated voltage208-230/460 V
Rated current51.3-46.4/23.2 A
L. R. Amperes313-283/142 A
LRC6.1x(Code G)
No load current11.2-13.0/6.50 A
Rated torque29.4 ft.lb
Locked rotor torque200 %
Breakdown torque240 %
Locked rotor time37s (cold) 21s (hot)
Moment of inertia (J)1.54 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?72.0 dB(A)
Approx. weight?289 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.0  91.7  91.0

Power factor

50%75%100%
0.82  0.87  0.89
Frame254/6TC
Output15 HP (11 kW)
Number of Poles2
Frequency50 Hz
Rated speed2925 rpm
Slip2.50 %
Rated voltage380 V
Rated current20.4 A
L. R. Amperes141 A
LRC6.9x(Code G)
No load current6.40 A
Rated torque26.6 ft.lb
Locked rotor torque220 %
Breakdown torque260 %
Locked rotor time28s (cold) 16s (hot)
Moment of inertia (J)1.54 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?67.0 dB(A)
Approx. weight?289 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
90.6  90.9  91.2

Power factor

50%75%100%
0.78  0.87  0.90
Frame254/6TC
Output15 HP (11 kW)
Number of Poles2
Frequency50 Hz
Rated speed2935 rpm
Slip2.17 %
Rated voltage400 V
Rated current19.6 A
L. R. Amperes151 A
LRC7.7x(Code H)
No load current6.85 A
Rated torque26.5 ft.lb
Locked rotor torque240 %
Breakdown torque280 %
Locked rotor time28s (cold) 16s (hot)
Moment of inertia (J)1.54 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?67.0 dB(A)
Approx. weight?289 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
90.4  91.2  91.2

Power factor

50%75%100%
0.75  0.85  0.89
Frame254/6TC
Output15 HP (11 kW)
Number of Poles2
Frequency50 Hz
Rated speed2940 rpm
Slip2.00 %
Rated voltage415 V
Rated current19.1 A
L. R. Amperes155 A
LRC8.1x(Code J)
No load current7.15 A
Rated torque26.4 ft.lb
Locked rotor torque270 %
Breakdown torque310 %
Locked rotor time28s (cold) 16s (hot)
Moment of inertia (J)1.54 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?67.0 dB(A)
Approx. weight?289 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
89.8  91.1  91.2

Power factor

50%75%100%
0.73  0.84  0.88
Frame254/6TC
Output20 HP (15 kW)
Number of Poles2
Frequency50 Hz
Rated speed2895 rpm
Slip3.50 %
Rated voltage380 V
Rated current28.6 A
L. R. Amperes146 A
LRC5.1x(Code E)
No load current6.40 A
Rated torque35.8 ft.lb
Locked rotor torque160 %
Breakdown torque190 %
Locked rotor time28s (cold) 16s (hot)
Moment of inertia (J)1.54 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?67.0 dB(A)
Approx. weight?289 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.0  90.2  88.5

Power factor

50%75%100%
0.86  0.89  0.90
Frame254/6TC
Output20 HP (15 kW)
Number of Poles2
Frequency50 Hz
Rated speed2905 rpm
Slip3.17 %
Rated voltage400 V
Rated current27.2 A
L. R. Amperes155 A
LRC5.7x(Code F)
No load current6.85 A
Rated torque35.7 ft.lb
Locked rotor torque180 %
Breakdown torque210 %
Locked rotor time28s (cold) 16s (hot)
Moment of inertia (J)1.54 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?67.0 dB(A)
Approx. weight?289 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.0  91.0  89.5

Power factor

50%75%100%
0.84  0.88  0.89
Frame254/6TC
Output20 HP (15 kW)
Number of Poles2
Frequency50 Hz
Rated speed2915 rpm
Slip2.83 %
Rated voltage415 V
Rated current26.0 A
L. R. Amperes159 A
LRC6.1x(Code G)
No load current7.15 A
Rated torque35.5 ft.lb
Locked rotor torque200 %
Breakdown torque229 %
Locked rotor time28s (cold) 16s (hot)
Moment of inertia (J)1.54 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?67.0 dB(A)
Approx. weight?289 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.0  91.0  90.2

Power factor

50%75%100%
0.82  0.87  0.89

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Application
Severe Duty
Horsepower
20HP
Enclosure
TEFC
Enclosure
TEFC
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
254TC/256TC
