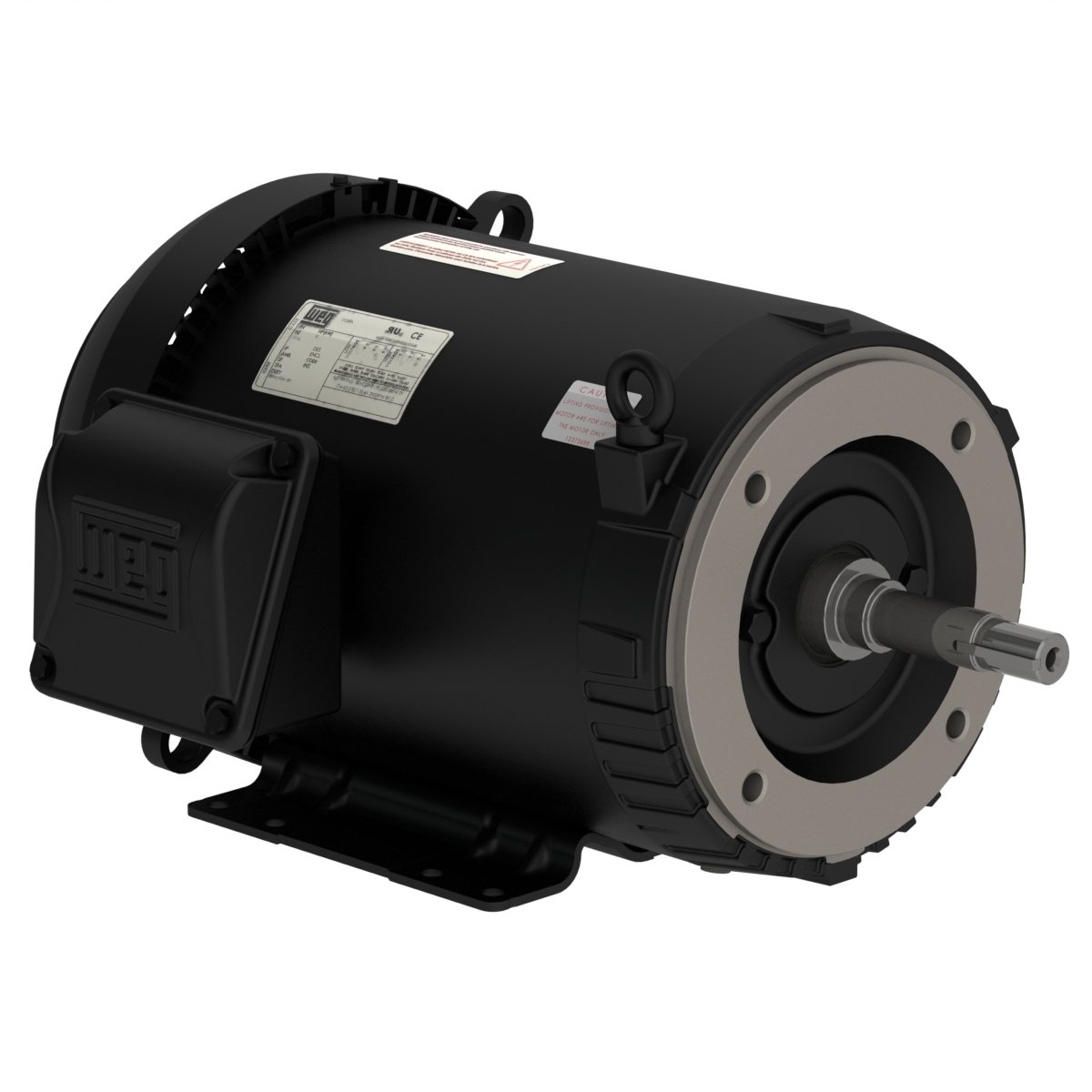

02036ET3V256JM-S WEG 20HP JM Close Coupled Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 02036ET3V256JM-S

02036ET3V256JM-S WEG 20HP JM Close Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 02036ET3V256JM-S

Selected accessories will also be added to cart
$2,638.85 / Each
Quantity:
IC411 - TEFC, IP55, 254JM/256JM Frame, 200/400VAC 3-Phase 60Hz, 14328086, Foot Mount, Rolled Steel, NEMA Premium Efficiency

Electric Motors

Frame254/6JM
Output20 HP (15 kW)
Number of Poles2
Frequency60 Hz
Rated speed3515 rpm
Slip2.36 %
Rated voltage200/400 V
Rated current52.2/26.1 A
L. R. Amperes345/172 A
LRC6.6x(Code G)
No load current15.8/7.91 A
Rated torque29.5 ft.lb
Locked rotor torque200 %
Breakdown torque290 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)1.22 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?75.0 dB(A)
Approx. weight?211 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
90.0  91.0  91.0

Power factor

50%75%100%
0.81  0.88  0.91

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box hole1.732"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSuperior
Fan Cover materialRolled Steel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Application
Close Coupled Pump
Horsepower
20HP
Enclosure
TEFC
Enclosure
TEFC
Frame
254JM/256JM
Input Voltage
200VAC
Input Voltage
400VAC
