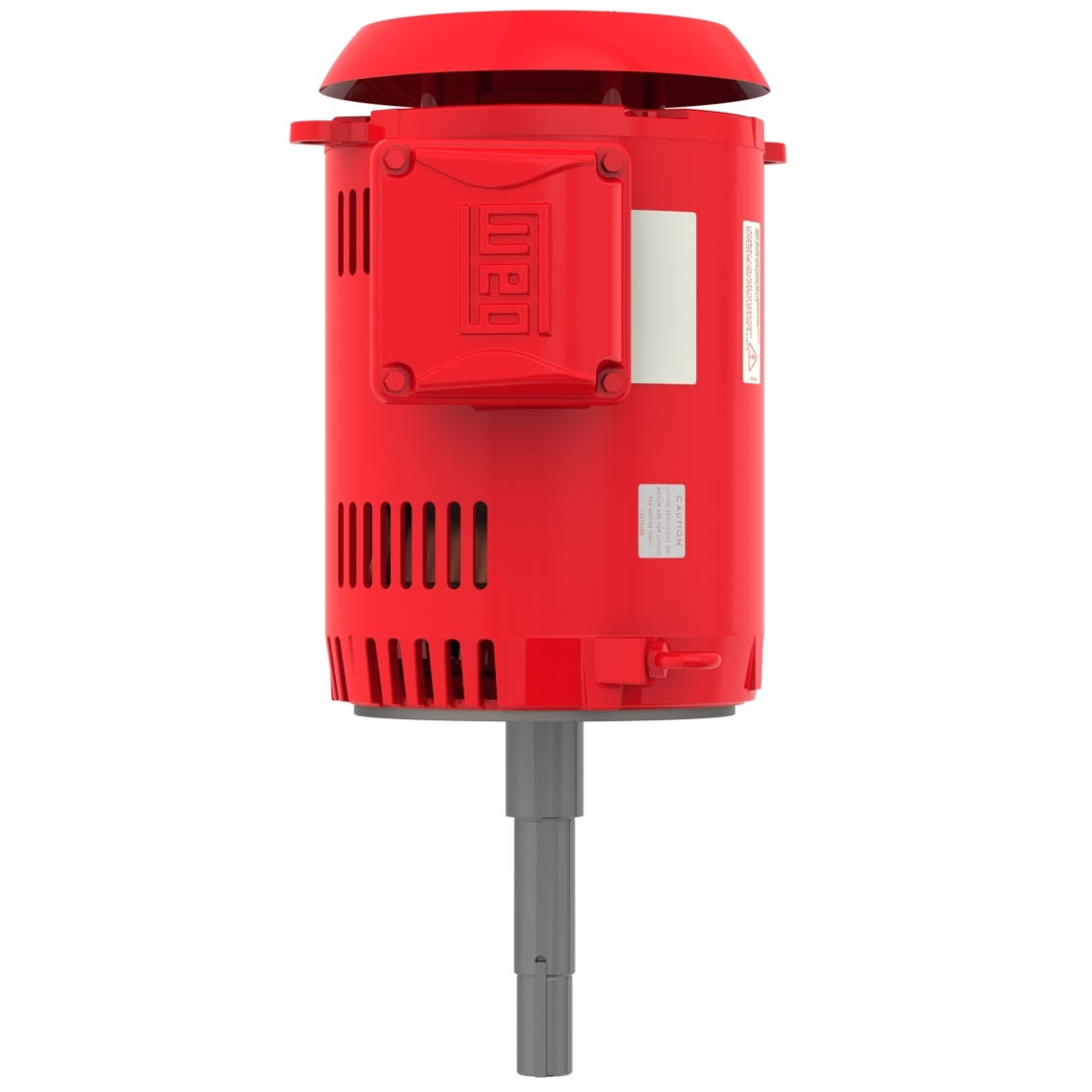

02036OP3EFP254JPV-S WEG 20HP JP Close-Coupled Fire Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 02036OP3EFP254JPV-S

02036OP3EFP254JPV-S WEG 20HP JP Close-Coupled Fire Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 02036OP3EFP254JPV-S

Selected accessories will also be added to cart
$1,569.00 / Each
Quantity:
IC01 - ODP, 254JP/256JP Frame, 230/460/190-220/380-415VAC 50/60Hz 3 Phase, 13550934, High Efficiency, Footless, Vertical Mount, Rolled Steel Frame

Electric Motors

Frame 254/6JP
Output 20 HP (15 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3520 rpm
Slip 2.22 %
Rated voltage 230/460 V
Rated current 47.4/23.7 A
L. R. Amperes 284/142 A
LRC 6.0x(Code G)
No load current 18.2/9.12 A
Rated torque 29.8 ft.lb
Locked rotor torque 180 %
Breakdown torque 240 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 0.6974 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 70.0 dB(A)
Approx. weight³ 169 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.5  89.5  90.2

Power factor

50% 75% 100%
0.75  0.84  0.88
Frame 254/6JP
Output 20 HP (15 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2885 rpm
Slip 3.83 %
Rated voltage 190-220/380 V
Rated current 59.0-51.0/29.5 A
L. R. Amperes 260-224/130 A
LRC 4.4x(Code D)
No load current 17.7-15.3/8.86 A
Rated torque 36.4 ft.lb
Locked rotor torque 110 %
Breakdown torque 180 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 0.6974 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 169 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
89.3  88.2  85.8

Power factor

50% 75% 100%
0.81  0.88  0.90
Frame 254/6JP
Output 20 HP (15 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2910 rpm
Slip 3.00 %
Rated voltage 415 V
Rated current 27.5 A
L. R. Amperes 143 A
LRC 5.2x(Code F)
No load current 11.7 A
Rated torque 36.1 ft.lb
Locked rotor torque 130 %
Breakdown torque 220 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.6974 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 169 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.6  88.7  87.3

Power factor

50% 75% 100%
0.72  0.82  0.87

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole 1.732"
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 3002 207N (ISO 12944 - C2)
Grounding Lugs Superior
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover With
Resilient Base Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
