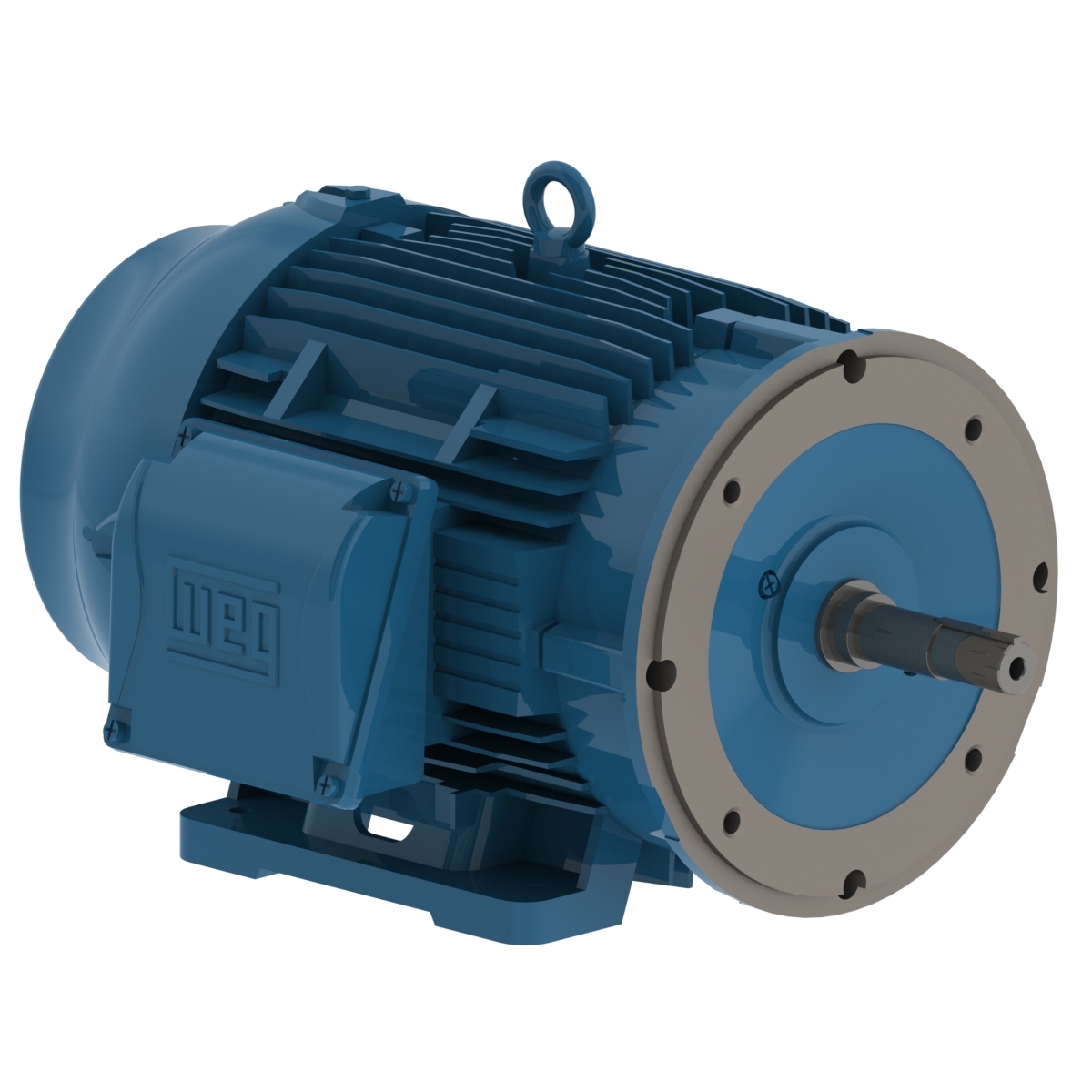

02036ET3E256JM-W22 WEG 20HP JM Close Coupled Pump Electric Motor, 3600 RPM
Enlarge Photo

Product ID: 02036ET3E256JM-W22

02036ET3E256JM-W22 WEG 20HP JM Close Coupled Pump Electric Motor, 3600 RPM

MFG: WEG Electric Corporation
MFG Part Number: 02036ET3E256JM-W22

Selected accessories will also be added to cart
$2,638.85 / Each
Quantity:
IC411 - TEFC, IP55, 254JM/256JM Frame, 230/460/380VAC 50/60Hz 3 Phase, 11641169, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Electric Motors

Frame254/6JM
Output20 HP (15 kW)
Number of Poles2
Frequency60 Hz
Rated speed3530 rpm
Slip1.94 %
Rated voltage230/460 V
Rated current46.5/23.3 A
L. R. Amperes284/142 A
LRC6.1x(Code G)
No load current11.2/5.60 A
Rated torque29.8 ft.lb
Locked rotor torque200 %
Breakdown torque240 %
Locked rotor time25s (cold) 14s (hot)
Moment of inertia (J)1.54 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?72.0 dB(A)
Approx. weight?303 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
90.7  91.0  91.0

Power factor

50%75%100%
0.79  0.86  0.89
Frame254/6JM
Output15 HP (11 kW)
Number of Poles2
Frequency50 Hz
Rated speed2940 rpm
Slip2.00 %
Rated voltage380 V
Rated current20.6 A
L. R. Amperes144 A
LRC7.0x(Code H)
No load current5.50 A
Rated torque26.8 ft.lb
Locked rotor torque220 %
Breakdown torque260 %
Locked rotor time28s (cold) 16s (hot)
Moment of inertia (J)1.54 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?67.0 dB(A)
Approx. weight?303 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
90.6  90.9  91.2

Power factor

50%75%100%
0.78  0.86  0.89
Frame254/6JM
Output15 HP (11 kW)
Number of Poles2
Frequency50 Hz
Rated speed2945 rpm
Slip1.83 %
Rated voltage400 V
Rated current19.8 A
L. R. Amperes154 A
LRC7.8x(Code J)
No load current6.00 A
Rated torque26.7 ft.lb
Locked rotor torque240 %
Breakdown torque280 %
Locked rotor time28s (cold) 16s (hot)
Moment of inertia (J)1.54 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?67.0 dB(A)
Approx. weight?303 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
90.4  91.2  91.2

Power factor

50%75%100%
0.75  0.84  0.88
Frame254/6JM
Output15 HP (11 kW)
Number of Poles2
Frequency50 Hz
Rated speed2950 rpm
Slip1.67 %
Rated voltage415 V
Rated current19.3 A
L. R. Amperes156 A
LRC8.1x(Code J)
No load current6.10 A
Rated torque26.7 ft.lb
Locked rotor torque270 %
Breakdown torque310 %
Locked rotor time28s (cold) 16s (hot)
Moment of inertia (J)1.54 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?67.0 dB(A)
Approx. weight?303 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
89.8  91.1  91.2

Power factor

50%75%100%
0.73  0.83  0.87
Frame254/6JM
Output20 HP (15 kW)
Number of Poles2
Frequency50 Hz
Rated speed2885 rpm
Slip3.83 %
Rated voltage380 V
Rated current28.9 A
L. R. Amperes148 A
LRC5.1x(Code E)
No load current5.50 A
Rated torque36.4 ft.lb
Locked rotor torque160 %
Breakdown torque200 %
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)1.54 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?67.0 dB(A)
Approx. weight?303 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
87.2  87.5  87.5

Power factor

50%75%100%
0.85  0.89  0.90
Frame254/6JM
Output20 HP (15 kW)
Number of Poles2
Frequency50 Hz
Rated speed2905 rpm
Slip3.17 %
Rated voltage400 V
Rated current27.2 A
L. R. Amperes155 A
LRC5.7x(Code F)
No load current6.00 A
Rated torque36.2 ft.lb
Locked rotor torque180 %
Breakdown torque210 %
Locked rotor time16s (cold) 9s (hot)
Moment of inertia (J)1.54 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?67.0 dB(A)
Approx. weight?303 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
89.2  89.5  89.5

Power factor

50%75%100%
0.82  0.88  0.89
Frame254/6JM
Output20 HP (15 kW)
Number of Poles2
Frequency50 Hz
Rated speed2915 rpm
Slip2.83 %
Rated voltage415 V
Rated current26.2 A
L. R. Amperes160 A
LRC6.1x(Code G)
No load current6.10 A
Rated torque36.0 ft.lb
Locked rotor torque200 %
Breakdown torque229 %
Locked rotor time18s (cold) 10s (hot)
Moment of inertia (J)1.54 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?67.0 dB(A)
Approx. weight?303 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
89.2  89.5  89.5

Power factor

50%75%100%
0.80  0.87  0.89

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C3)
Grounding LugsSingle
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Pump SealMechanical Seal
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Fan materialPlastic
Screw capCARBON STEEL SAE 1010/20
NDE bearing SealV'Ring
DE bearing SealV'Ring
Type
Electric Motor
Input Phase
3-Phase
Application
Close Coupled Pump
Horsepower
20HP
Enclosure
TEFC
Speed
3600RPM
Frame
254JM/256JM
