/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Fire Pump/Foot Mount, Cast Iron/02036OP3EFP254T-W40 WEG 20HP Fire Pump Electric Motor, 3600 RPM

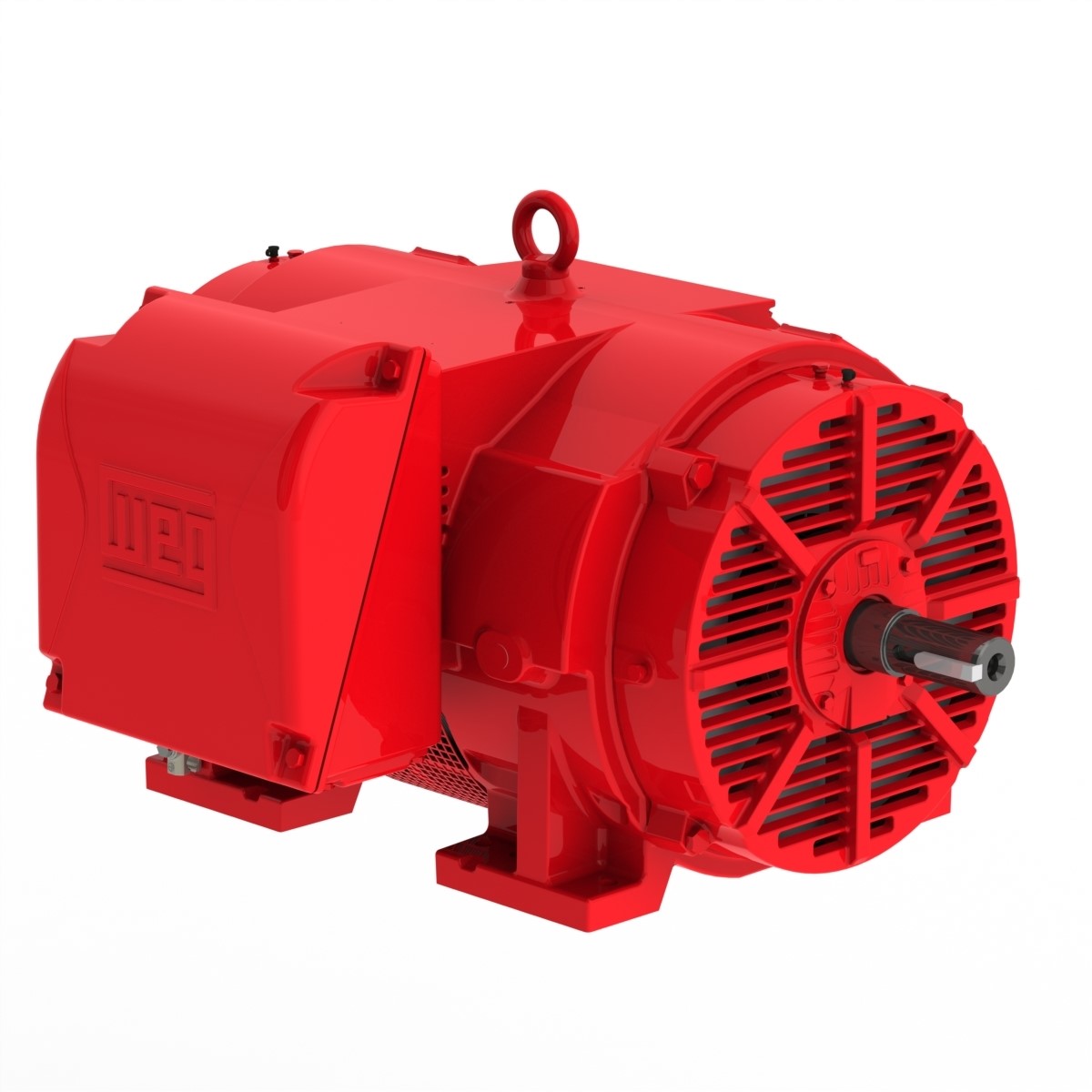

02036OP3EFP254T-W40 WEG 20HP Fire Pump Electric Motor, 3600 RPM
Enlarge Photo

Product ID: 02036OP3EFP254T-W40

02036OP3EFP254T-W40 WEG 20HP Fire Pump Electric Motor, 3600 RPM

MFG: WEG Electric Corporation
MFG Part Number: 02036OP3EFP254T-W40

Selected accessories will also be added to cart
$1,307.41 / Each
Quantity:
IC01 - ODP, IP23, 254T Frame, 230/460VAC 60Hz 3 Phase, 14490506, High Efficiency, Foor Mount, Cast Iron Frame, 1-5/8" Keyed Shaft

Electric Motors

Frame254T
Output20 HP (15 kW)
Number of Poles2
Frequency60 Hz
Rated speed3530 rpm
Slip1.94 %
Rated voltage230/460 V
Rated current48.6/24.3 A
L. R. Amperes287/143 A
LRC5.9x(Code G)
No load current14.0/7.00 A
Rated torque29.8 ft.lb
Locked rotor torque170 %
Breakdown torque240 %
Locked rotor time28s (cold) 16s (hot)
Moment of inertia (J)0.8718 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?207 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
89.5  90.2  90.2

Power factor

50%75%100%
0.77  0.85  0.86
Frame254T
Output20 HP (15 kW)
Number of Poles2
Frequency50 Hz
Rated speed2905 rpm
Slip3.17 %
Rated voltage380 V
Rated current29.2 A
L. R. Amperes164 A
LRC5.6x(Code F)
No load current7.90 A
Rated torque36.2 ft.lb
Locked rotor torque130 %
Breakdown torque200 %
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)0.8718 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?207 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
87.5  87.5  87.8

Power factor

50%75%100%
0.82  0.88  0.89
Frame254T
Output20 HP (15 kW)
Number of Poles2
Frequency50 Hz
Rated speed2915 rpm
Slip2.83 %
Rated voltage400 V
Rated current27.5 A
L. R. Amperes168 A
LRC6.1x(Code G)
No load current9.10 A
Rated torque36.0 ft.lb
Locked rotor torque150 %
Breakdown torque200 %
Locked rotor time18s (cold) 10s (hot)
Moment of inertia (J)0.8718 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?207 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
87.5  88.5  88.6

Power factor

50%75%100%
0.78  0.86  0.89
Frame254T
Output20 HP (15 kW)
Number of Poles2
Frequency50 Hz
Rated speed2925 rpm
Slip2.50 %
Rated voltage415 V
Rated current27.0 A
L. R. Amperes176 A
LRC6.5x(Code H)
No load current10.2 A
Rated torque35.9 ft.lb
Locked rotor torque170 %
Breakdown torque240 %
Locked rotor time16s (cold) 9s (hot)
Moment of inertia (J)0.8718 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?207 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
88.5  88.5  89.0

Power factor

50%75%100%
0.74  0.84  0.87

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3002 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
3-Phase
Horsepower
20HP
Enclosure
ODP
Speed
3600RPM
Input Voltage
230VAC
Input Voltage
460VAC
Frame
254T
Application
Fire Pump
