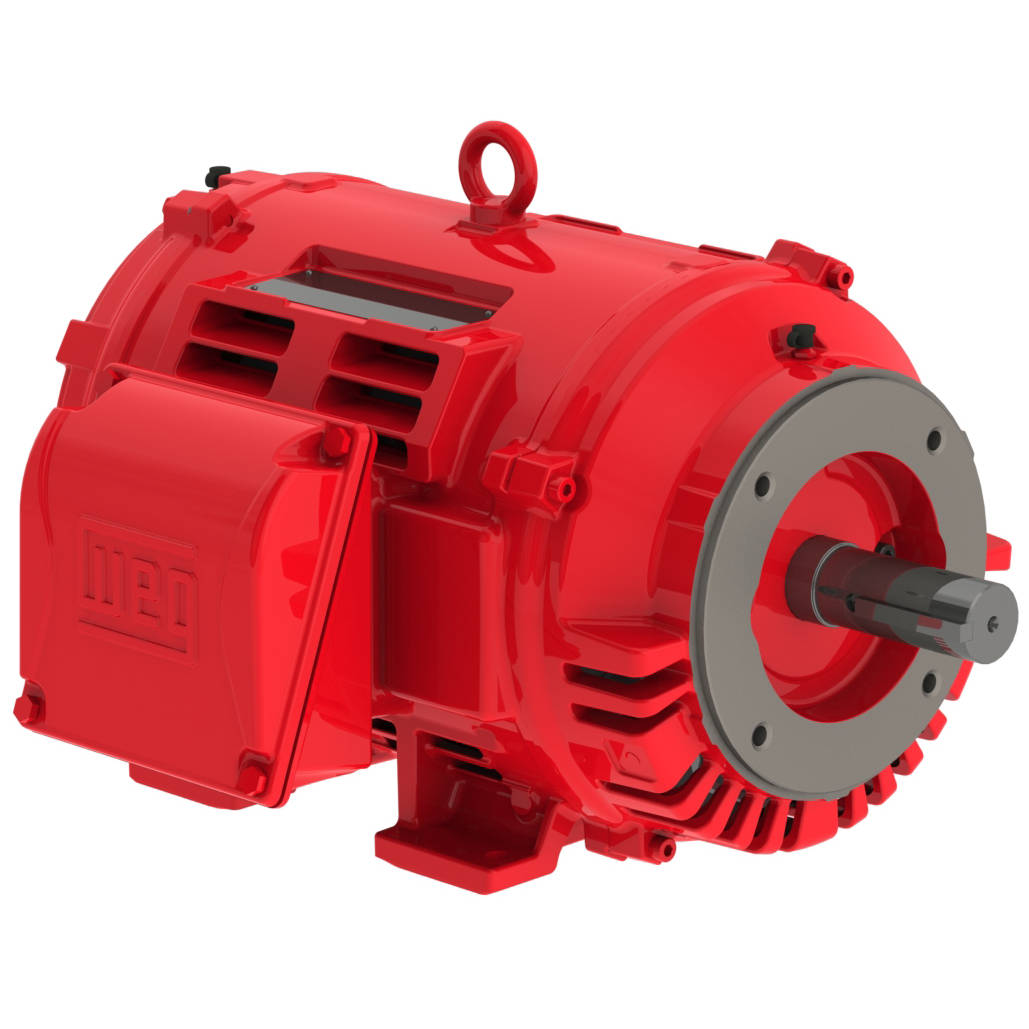

02036OP3VFP254TC-W40 WEG 20HP Fire Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 02036OP3VFP254TC-W40

02036OP3VFP254TC-W40 WEG 20HP Fire Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 02036OP3VFP254TC-W40

Selected accessories will also be added to cart
$1,307.41 / Each
Quantity:
IC01 - ODP, IP23, 254TC Frame, 200/400VAC 60Hz 3 Phase, 14788748, High Efficiency, Foot Mounted, C-Face, Cast Iron Frame, 1-5/8" Keyed Shaft

Electric Motors

Frame254TC
Output20 HP (15 kW)
Number of Poles2
Frequency60 Hz
Rated speed3530 rpm
Slip1.94 %
Rated voltage200/400 V
Rated current55.9/27.9 A
L. R. Amperes330/165 A
LRC5.9x(Code G)
No load current16.1/8.05 A
Rated torque29.8 ft.lb
Locked rotor torque170 %
Breakdown torque240 %
Locked rotor time28s (cold) 16s (hot)
Moment of inertia (J)0.8718 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?213 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
89.5  90.2  90.2

Power factor

50%75%100%
0.77  0.85  0.86

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3002 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Horsepower
20HP
Enclosure
ODP
Frame
254TC
Input Voltage
200VAC
Input Voltage
400VAC
Application
Fire Pump
