/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Rolled Steel, ODP/JM Close-Coupled Pump/AEGIS Ring/02036OT3H254JM-SG WEG 20HP JM Close-Coupled Pump Electric Motor, 3600RPM

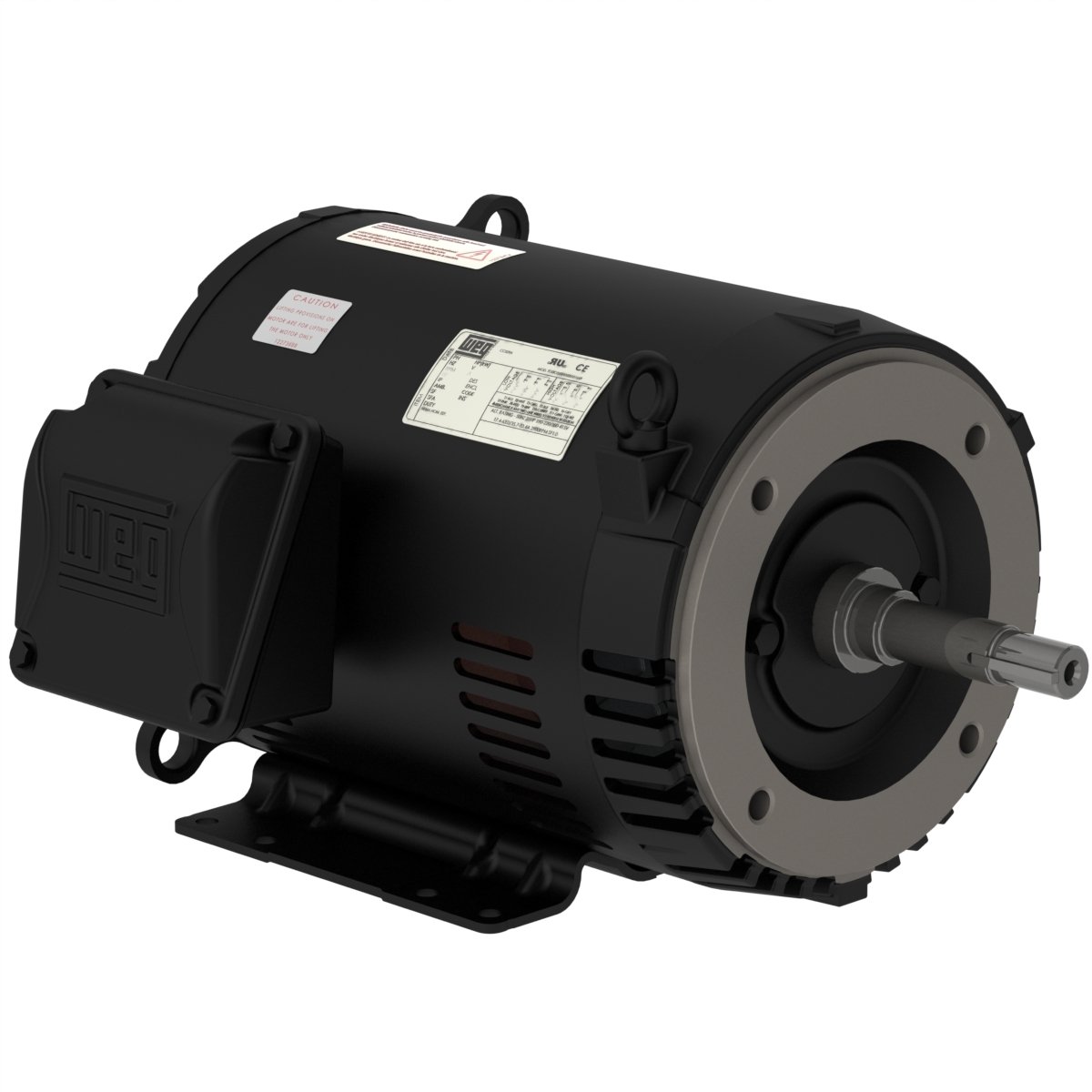

02036OT3H254JM-SG WEG 20HP JM Close-Coupled Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 02036OT3H254JM-SG

02036OT3H254JM-SG WEG 20HP JM Close-Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 02036OT3H254JM-SG

Selected accessories will also be added to cart
$2,124.43 / Each
Quantity:
IC01 - ODP, 254JM/256JM Frame, 575VAC 3-Phase 60Hz, 14327943, Foot Mount, Rolled Steel, NEMA Premium Efficiency, Internal AEGIS Ring

Electric Motors

Frame254/6JM
Output20 HP (15 kW)
Number of Poles2
Frequency60 Hz
Rated speed3525 rpm
Slip2.08 %
Rated voltage575 V
Rated current19.0 A
L. R. Amperes114 A
LRC6.0x(Code G)
No load current6.80 A
Rated torque29.4 ft.lb
Locked rotor torque180 %
Breakdown torque240 %
Locked rotor time23s (cold) 13s (hot)
Moment of inertia (J)0.7848 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?70.0 dB(A)
Approx. weight?151 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
90.2  91.0  91.0

Power factor

50%75%100%
0.76  0.83  0.87

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box hole1.732"
Terminal BlockWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSuperior
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Horsepower
20HP
Enclosure
ODP
Input Voltage
575VAC
Frame
254JM/256JM
