/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/W22 General Purpose, TEFC/Foot Mount/02509ET3E326T-W22 WEG 25HP Severe Duty Electric Motor, 900RPM

Product ID: 02509ET3E326T-W22

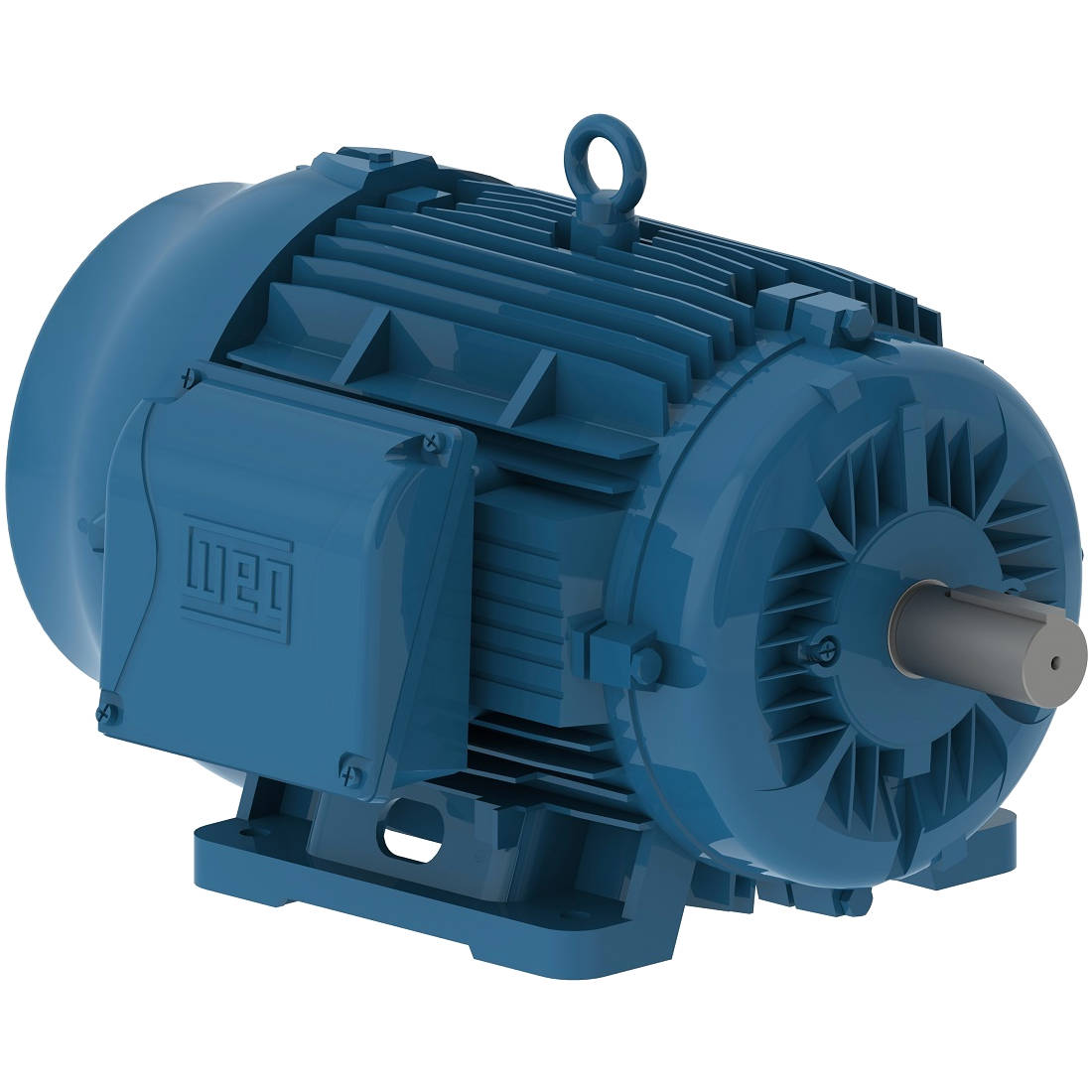

02509ET3E326T-W22 WEG 25HP Severe Duty Electric Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 02509ET3E326T-W22

Selected accessories will also be added to cart

$6,510.35 / Each

Quantity:

IC411 - TEFC, IP55, 324T/326T Frame, 230/460/380VAC 50/60Hz 3 Phase, 11441523, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-1/8" Keyed Shaft

Electric Motors

Frame	324/6T
Output	25 HP (18.5 kW)
Number of Poles	8
Frequency	60 Hz
Rated speed	880 rpm
Slip	2.22 %
Rated voltage	230/460 V
Rated current	71.8/35.9 A
L. R. Amperes	373/187 A
LRC	5.2x(Code G)
No load current	40.0/20.0 A
Rated torque	149 ft.lb
Locked rotor torque	200 %
Breakdown torque	229 %
Locked rotor time	41s (cold) 23s (hot)

Moment of inertia (J)	11.9 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	555 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.5	91.0	91.0

Power factor

50%	75%	100%
0.51	0.64	0.71

Frame	324/6T
Output	20 HP (15 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	730 rpm
Slip	2.67 %
Rated voltage	380 V
Rated current	35.3 A
L. R. Amperes	177 A
LRC	5.0x(Code G)
No load current	19.6 A
Rated torque	144 ft.lb
Locked rotor torque	190 %
Breakdown torque	229 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	11.9 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	555 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.3	90.1	89.6

Power factor

50%	75%	100%
0.51	0.64	0.71

Frame	324/6T
Output	20 HP (15 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	730 rpm
Slip	2.67 %
Rated voltage	400 V
Rated current	35.6 A
L. R. Amperes	192 A
LRC	5.4x(Code H)
No load current	22.2 A
Rated torque	144 ft.lb
Locked rotor torque	210 %
Breakdown torque	250 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	11.9 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	555 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.2	89.1	89.6

Power factor

50%	75%	100%
0.46	0.59	0.67

Frame	324/6T
Output	20 HP (15 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	735 rpm
Slip	2.00 %
Rated voltage	415 V
Rated current	36.4 A
L. R. Amperes	200 A
LRC	5.5x(Code J)
No load current	24.6 A
Rated torque	143 ft.lb
Locked rotor torque	240 %
Breakdown torque	280 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	11.9 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	555 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.2	88.6	89.6

Power factor

50%	75%	100%
0.42	0.55	0.64

Frame	324/6T
Output	25 HP (18.5 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	725 rpm
Slip	3.33 %
Rated voltage	380 V
Rated current	42.3 A
L. R. Amperes	178 A
LRC	4.2x(Code E)
No load current	19.6 A
Rated torque	181 ft.lb
Locked rotor torque	150 %
Breakdown torque	180 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	11.9 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	555 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.5	90.2	88.5

Power factor

50%	75%	100%
0.58	0.70	0.75

Frame	324/6T
Output	25 HP (18.5 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	725 rpm
Slip	3.33 %
Rated voltage	400 V
Rated current	41.4 A
L. R. Amperes	190 A
LRC	4.6x(Code F)
No load current	22.2 A
Rated torque	181 ft.lb
Locked rotor torque	170 %
Breakdown torque	200 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	11.9 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	555 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
88.5	89.5	89.5

Power factor

50%	75%	100%
0.53	0.66	0.72

Frame	324/6T
Output	25 HP (18.5 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	730 rpm
Slip	2.67 %
Rated voltage	415 V
Rated current	41.1 A
L. R. Amperes	197 A
LRC	4.8x(Code G)
No load current	24.6 A
Rated torque	180 ft.lb
Locked rotor torque	190 %
Breakdown torque	220 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	11.9 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	555 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
87.5	89.5	89.5

Power factor

50%	75%	100%
0.49	0.62	0.70

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
