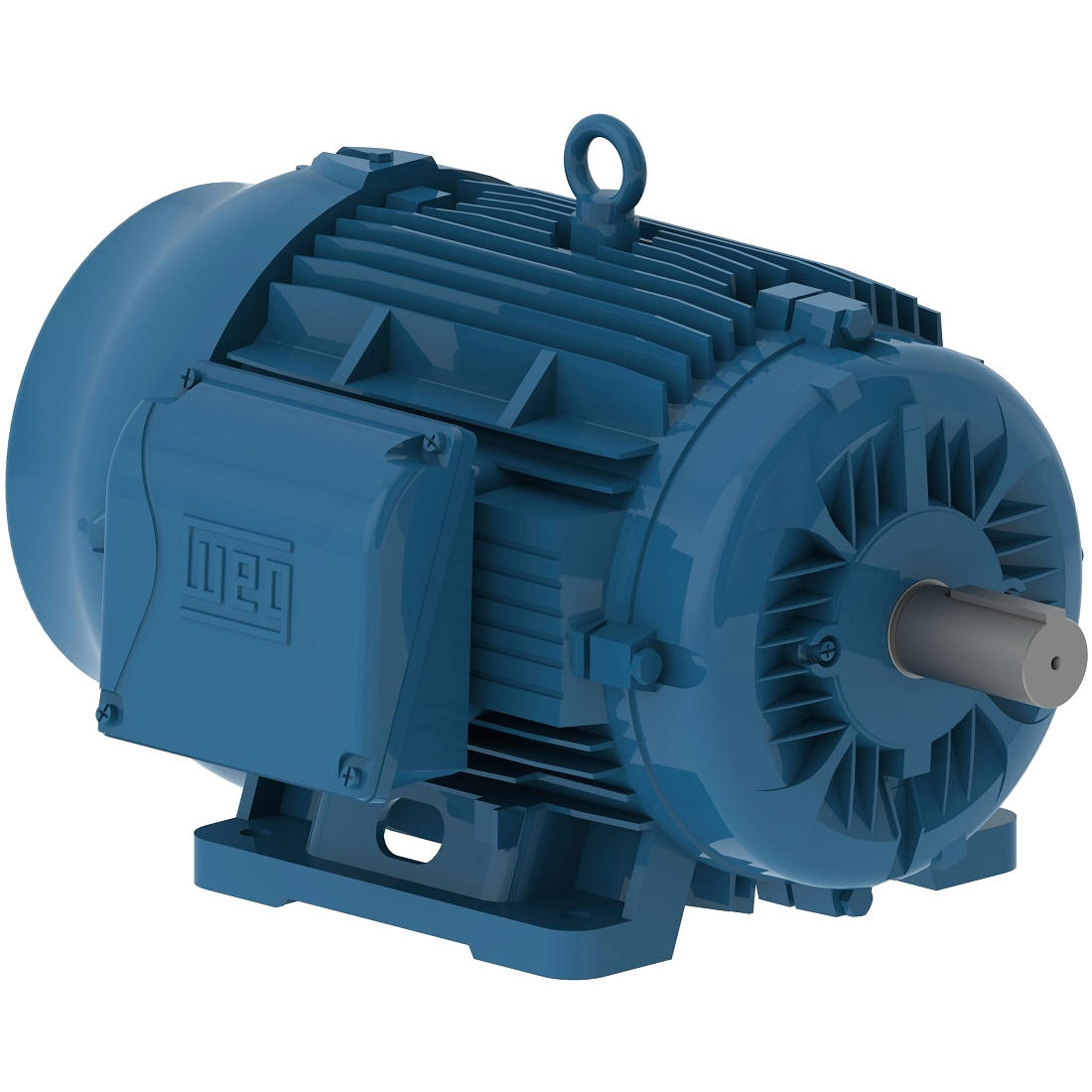

02509ET3H326T-W22 WEG 25HP Severe Duty Electric Motor, 900RPM
Enlarge Photo

Product ID: 02509ET3H326T-W22

02509ET3H326T-W22 WEG 25HP Severe Duty Electric Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 02509ET3H326T-W22

Selected accessories will also be added to cart
$6,510.35 / Each
Quantity:
IC411 - TEFC, IP55, 324T/326T Frame, 575VAC 60Hz 3 Phase, 13610460, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-1/8" Keyed Shaft

Electric Motors

Frame324/6T
Output25 HP (18.5 kW)
Number of Poles8
Frequency60 Hz
Rated speed880 rpm
Slip2.22 %
Rated voltage575 V
Rated current28.7 A
L. R. Amperes149 A
LRC5.2x(Code G)
No load current16.0 A
Rated torque149 ft.lb
Locked rotor torque200 %
Breakdown torque229 %
Locked rotor time41s (cold) 23s (hot)
Moment of inertia (J)11.9 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?56.0 dB(A)
Approx. weight?553 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
89.5  91.0  91.0

Power factor

50%75%100%
0.51  0.64  0.71

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 2"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Type
Electric Motor
Input Phase
3-Phase
Application
Severe Duty
Horsepower
25HP
Enclosure
TEFC
Enclosure
TEFC
Speed
900RPM
Input Voltage
575VAC
Frame
324T/326T
