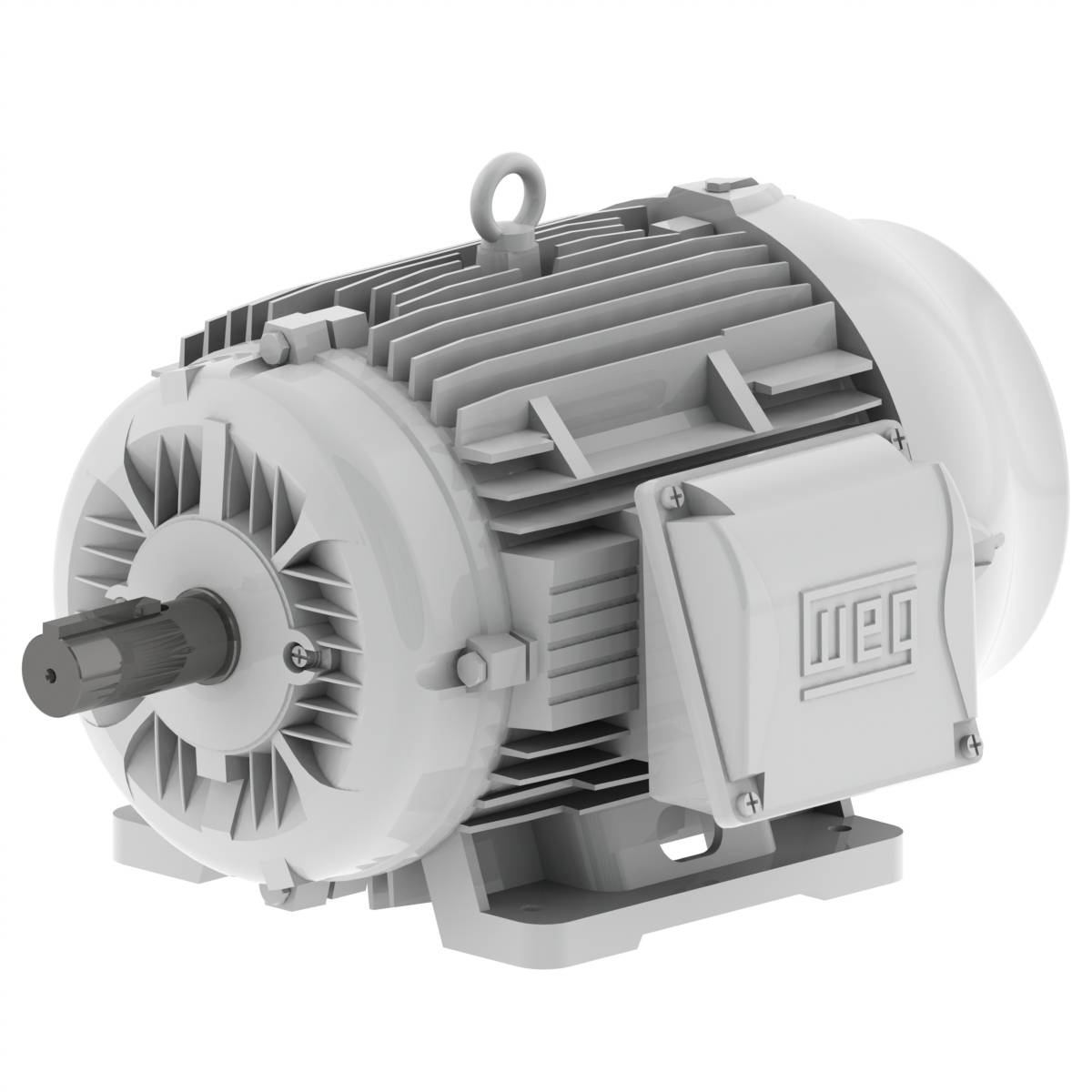

02512ES3EOW324T-W22 WEG 25HP Oil Well Pump Electric Motor, 1200RPM
Enlarge Photo

Product ID: 02512ES3EOW324T-W22

02512ES3EOW324T-W22 WEG 25HP Oil Well Pump Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 02512ES3EOW324T-W22

Selected accessories will also be added to cart
$3,459.43 / Each
Quantity:
IC-411-TEFC, IP55, 324T/326T Frame, 208-230/460VAC 60Hz 3 Phase, 12686562, Standard Efficiency, Foot Mounted, Cast Iron Frame, 2-1/8" Keyed Shaft

Electric Motors

Frame324/6T
Output25 HP (18.5 kW)
Number of Poles6
Frequency60 Hz
Rated speed1125 rpm
Slip6.25 %
Rated voltage208-230/460 V
Rated current69.0-62.4/31.2 A
L. R. Amperes400-362/181 A
LRC5.8x(Code G)
No load current27.6-25.0/12.5 A
Rated torque117 ft.lb
Locked rotor torque300 %
Breakdown torque0 %
Locked rotor time28s (cold) 16s (hot)
Moment of inertia (J)10.4 sq.ft.lb
DesignD
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-2
Rotation?Both (CW and CCW)
Noise level?62.0 dB(A)
Approx. weight?505 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
85.5  88.5  88.5

Power factor

50%75%100%
0.69  0.79  0.84

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 2"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 9010 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Speed
1200RPM
Horsepower
25HP
Enclosure
TEFC
Input Voltage
208VAC
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
230VAC
Input Voltage
460VAC
Input Voltage
460VAC
Frame
324T/326T
