/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Cast Iron, ODP, W40/Foot Mount, AEGIS SGR/02512OT3E324T-W40G WEG 25HP, General Purpose Electric Motor, 1200RPM

Product ID: 02512OT3E324T-W40G

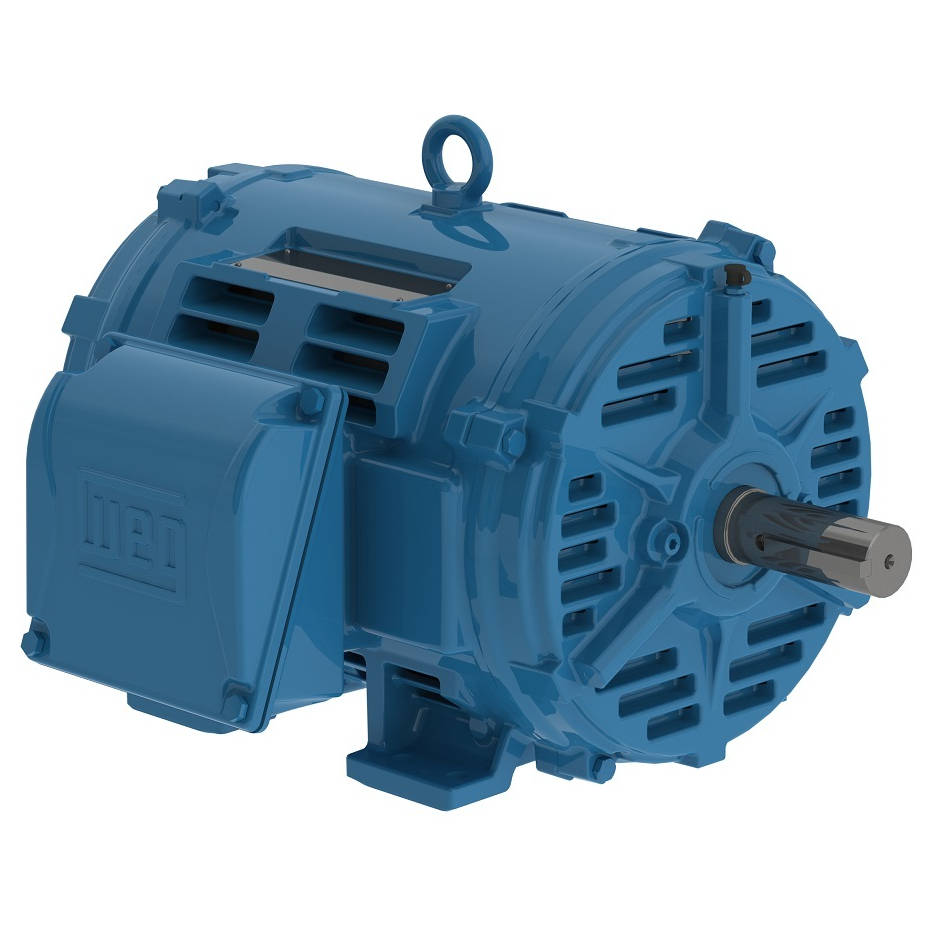

02512OT3E324T-W40G WEG 25HP, General Purpose Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 02512OT3E324T-W40G

Selected accessories will also be added to cart

$3,487.91 / Each

Quantity:

IC01 - ODP, IP23, 324T Frame, 230/460/380VAC 50/60Hz 3 Phase, 14503630, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, AEGIS Shaft Grounding Ring, 2-1/8" Keyed Shaft

Electric Motors

Frame	324T
Output	25 HP (18.5 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1183 rpm
Slip	1.42 %
Rated voltage	230/460 V
Rated current	61.6/30.8 A
L. R. Amperes	382/191 A
LRC	6.2x(Code G)
No load current	28.4/14.2 A
Rated torque	111 ft.lb
Locked rotor torque	210 %
Breakdown torque	250 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	7.69 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	62.0 dB(A)
Approx. weight?	453 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.7	92.4	93.0

Power factor

50%	75%	100%
0.65	0.76	0.81

Frame	324T
Output	20 HP (15 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	980 rpm
Slip	2.00 %
Rated voltage	380 V
Rated current	30.5 A
L. R. Amperes	201 A
LRC	6.6x(Code H)
No load current	14.0 A
Rated torque	107 ft.lb
Locked rotor torque	170 %
Breakdown torque	250 %
Locked rotor time	23s (cold) 13s (hot)

Moment of inertia (J)	7.69 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	62.0 dB(A)
Approx. weight?	453 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.8	91.2	91.2

Power factor

50%	75%	100%
0.65	0.76	0.82

Frame	324T
Output	20 HP (15 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	985 rpm
Slip	1.50 %
Rated voltage	400 V
Rated current	30.1 A
L. R. Amperes	205 A
LRC	6.8x(Code H)
No load current	15.5 A
Rated torque	107 ft.lb
Locked rotor torque	229 %
Breakdown torque	290 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	7.69 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	62.0 dB(A)
Approx. weight?	453 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.2	91.2

Power factor

50%	75%	100%
0.60	0.73	0.79

Frame	324T
Output	20 HP (15 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	985 rpm
Slip	1.50 %
Rated voltage	415 V
Rated current	29.7 A
L. R. Amperes	205 A
LRC	6.9x(Code J)
No load current	16.7 A
Rated torque	107 ft.lb
Locked rotor torque	210 %
Breakdown torque	310 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	7.69 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	62.0 dB(A)
Approx. weight?	453 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.3	91.2	91.2

Power factor

50%	75%	100%
0.56	0.70	0.77

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 2"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
