02518ET3EBM284T-W22 WEG 25HP Electric Brake Motor, 1800RPM

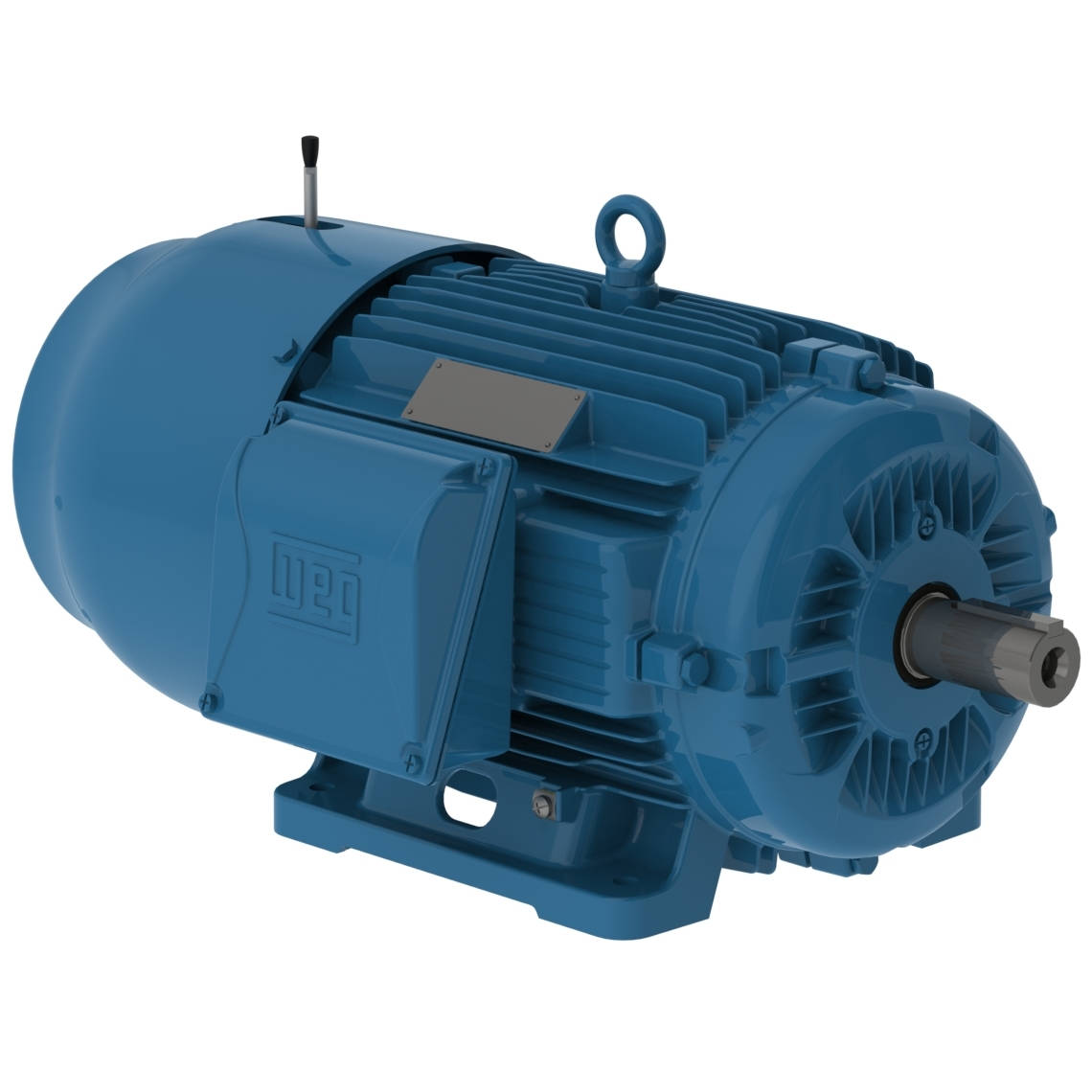

Enlarge Photo

Product ID: 02518ET3EBM284T-W22

02518ET3EBM284T-W22 WEG 25HP Electric Brake Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 02518ET3EBM284T-W22

Selected accessories will also be added to cart
$6,048.44 / Each
Quantity:
IC411 - TEFC, IP55, 284T/286T Frame, 230/460VAC 60Hz 3 Phase, 13501029, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-7/8" Keyed Shaft

Electric Motors

Frame284/6T
Output25 HP (18.5 kW)
Number of Poles4
Frequency60 Hz
Rated speed1765 rpm
Slip1.94 %
Rated voltage230/460 V
Rated current59.0/29.5 A
L. R. Amperes366/183 A
LRC6.2x(Code G)
No load current21.0/10.5 A
Rated torque74.4 ft.lb
Locked rotor torque240 %
Breakdown torque270 %
Locked rotor time43s (cold) 24s (hot)
Moment of inertia (J)5.11 sq.ft.lb
DesignB
Insulation ClassF
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?63.0 dB(A)
Approx. weight?505 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
92.4  93.0  93.6

Power factor

50%75%100%
0.70  0.80  0.84

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialAluminum
Brake TypeWEG - 260.0 Nm
Brake input Voltage220-240 V
Bearing capYes- Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector

Bearing details

 Drive EndNon Drive End
Bearing type6311 C3 6211 C3
SealingV'Ring Lip Seal
Lubrication interval20000 h 20000 h
Lubricant amount18 g 11 g
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
623 lb 1128 lb

Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Horsepower
25HP
Enclosure
TEFC
Enclosure
TEFC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
284T/286T
