Product ID: 02518ET3E284T-W22G

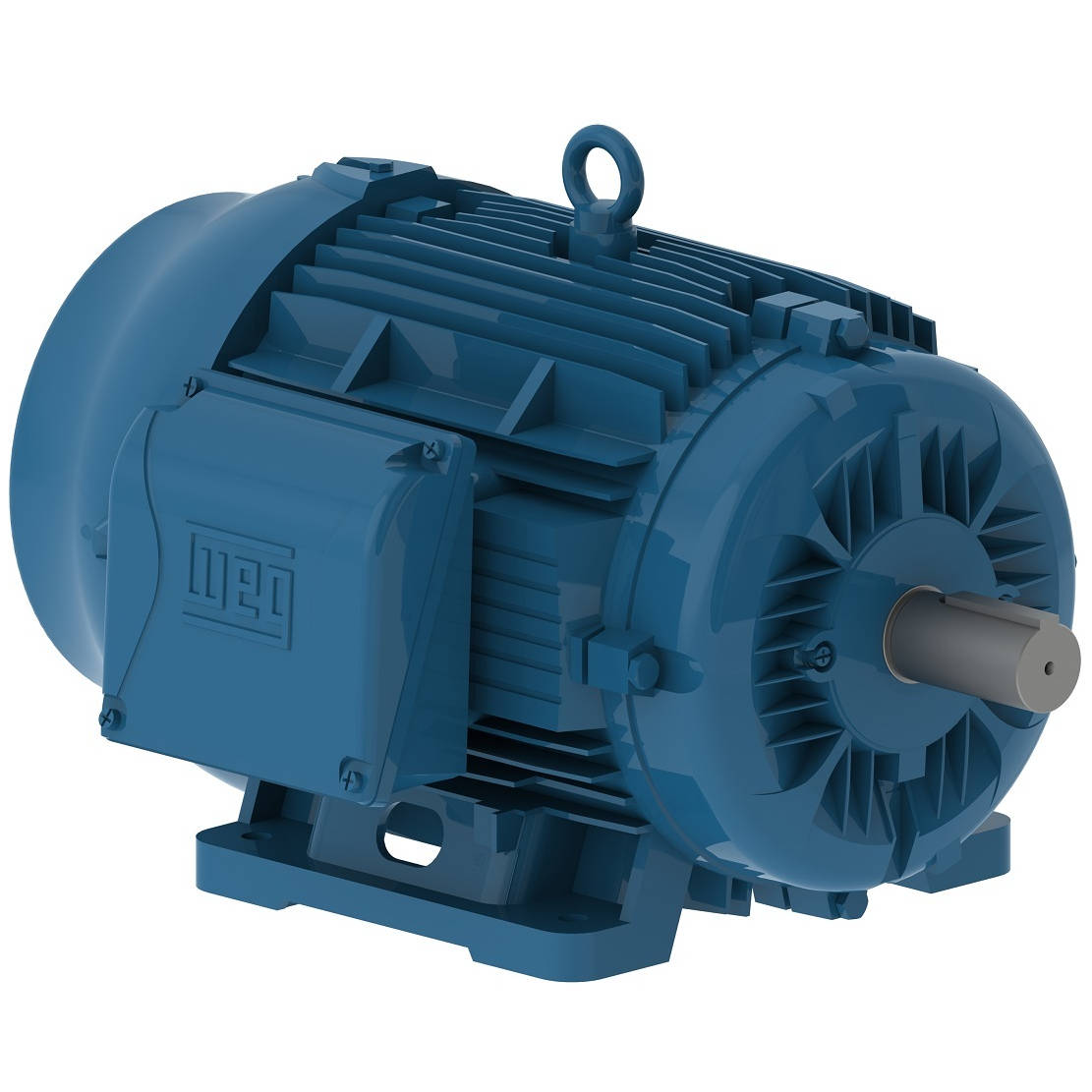

02518ET3E284T-W22G WEG 25HP Severe Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 02518ET3E284T-W22G

Selected accessories will also be added to cart

$2,717.17 / Each

Quantity:

IC411 - TEFC, IP55, 284T/286T Frame, 208-230/460/380VAC 50/60Hz 3 Phase, 12700685, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, AEGIS Shaft Grounding Ring,

208-230/460 V 60 Hz 4P
380 V 50 Hz 4P

Electric Motors

Frame	284/6T
Output	25 HP (18.5 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1765 rpm
Slip	1.94 %
Rated voltage	208-230/460 V
Rated current	65.2-59.0/29.5 A
L. R. Amperes	404-366/183 A
LRC	6.2x(Code G)
No load current	18.1-21.0/10.5 A
Rated torque	74.4 ft.lb
Locked rotor torque	240 %
Breakdown torque	270 %

Locked rotor time	43s (cold) 24s (hot)
Design	B
Insulation Class	F
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	64.0 dB(A)
Approx. weight?	408 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	93.0	93.6

Power factor

50%	75%	100%
0.70	0.80	0.84

Frame	284/6T
Output	25 HP (18.5 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1445 rpm
Slip	3.67 %
Rated voltage	380 V
Rated current	35.6 A
L. R. Amperes	174 A
LRC	4.9x(Code E)
No load current	10.4 A
Rated torque	90.9 ft.lb
Locked rotor torque	180 %
Breakdown torque	210 %

Locked rotor time	32s (cold) 18s (hot)
Design	B
Insulation Class	F
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	61.0 dB(A)
Approx. weight?	408 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	91.7	91.7

Power factor

50%	75%	100%
0.76	0.84	0.86

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
