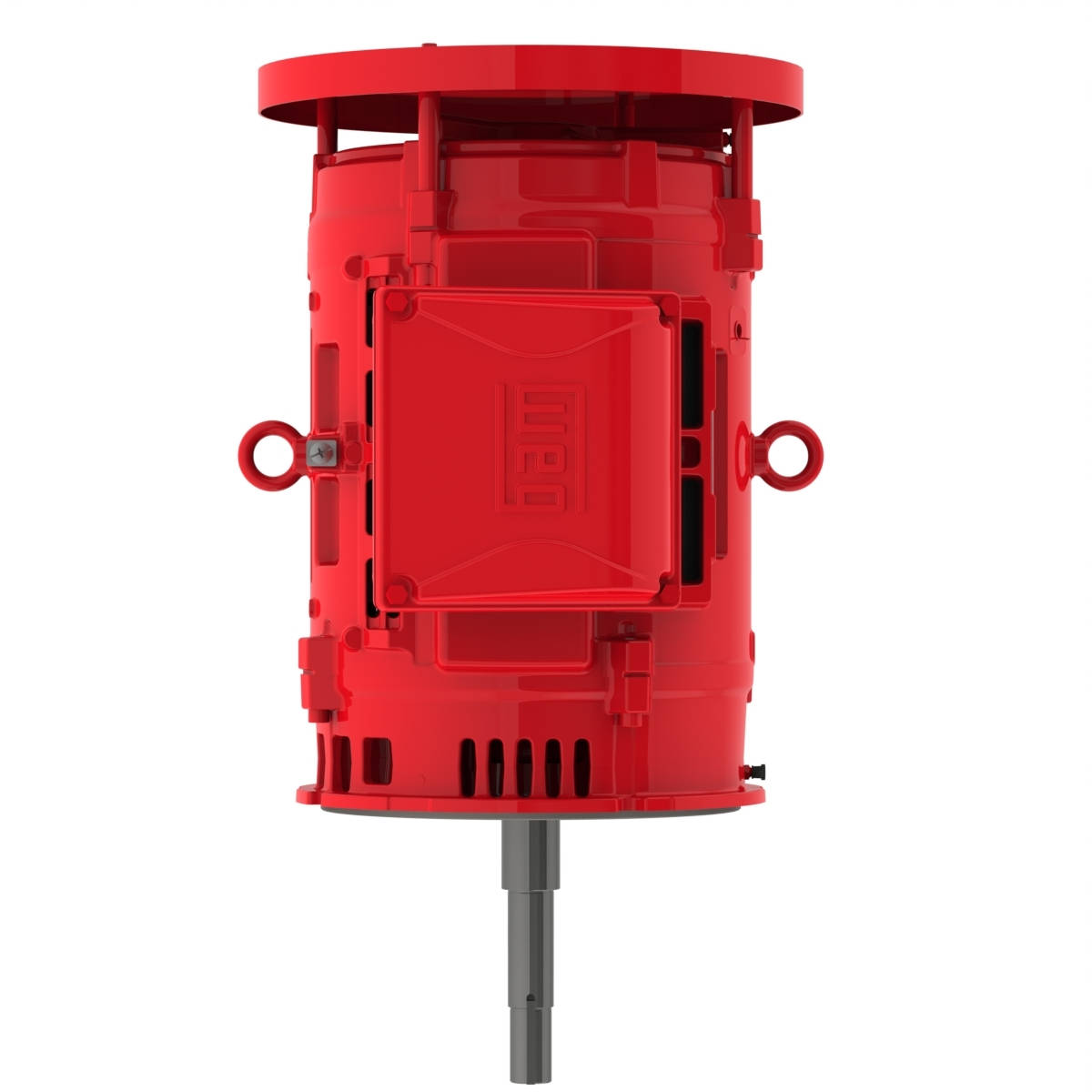

02518OP3EFP284JPV-W40 WEG 25HP JP Close-Coupled Pump Electric Motor, 1800RPM
Enlarge Photo

Product ID: 02518OP3EFP284JPV-W4

02518OP3EFP284JPV-W40 WEG 25HP JP Close-Coupled Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 02518OP3EFP284JPV-W4

Selected accessories will also be added to cart
$2,463.52 / Each
Quantity:
IC01 - ODP, 284JP/286JP Frame, 230/460/380VAC 50/60Hz 3 Phase, 14830339, High Efficiency, Footless, Vertical Mount, Cast Iron Frame

Electric Motors

Frame284/6JP
Output25 HP (18.5 kW)
Number of Poles4
Frequency60 Hz
Rated speed1765 rpm
Slip1.94 %
Rated voltage230/460 V
Rated current59.6/29.8 A
L. R. Amperes358/179 A
LRC6.0x(Code G)
No load current19.2/9.60 A
Rated torque74.4 ft.lb
Locked rotor torque200 %
Breakdown torque229 %
Locked rotor time19s (cold) 11s (hot)
Moment of inertia (J)2.88 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingW-6
Rotation?Both (CW and CCW)
Approx. weight?343 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.0  91.7  91.7

Power factor

50%75%100%
0.74  0.80  0.85
Frame284/6JP
Output25 HP (18.5 kW)
Number of Poles4
Frequency50 Hz
Rated speed1450 rpm
Slip3.33 %
Rated voltage380 V
Rated current36.9 A
L. R. Amperes196 A
LRC5.3x(Code F)
No load current9.30 A
Rated torque90.5 ft.lb
Locked rotor torque160 %
Breakdown torque180 %
Locked rotor time19s (cold) 11s (hot)
Moment of inertia (J)2.88 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingW-6
Rotation?Both (CW and CCW)
Approx. weight?343 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
88.4  88.4  88.5

Power factor

50%75%100%
0.78  0.85  0.86
Frame284/6JP
Output25 HP (18.5 kW)
Number of Poles4
Frequency50 Hz
Rated speed1460 rpm
Slip2.67 %
Rated voltage400 V
Rated current35.1 A
L. R. Amperes207 A
LRC5.9x(Code G)
No load current10.1 A
Rated torque89.9 ft.lb
Locked rotor torque170 %
Breakdown torque200 %
Locked rotor time19s (cold) 11s (hot)
Moment of inertia (J)2.88 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingW-6
Rotation?Both (CW and CCW)
Approx. weight?343 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
89.3  89.4  89.5

Power factor

50%75%100%
0.75  0.83  0.85
Frame284/6JP
Output25 HP (18.5 kW)
Number of Poles4
Frequency50 Hz
Rated speed1460 rpm
Slip2.67 %
Rated voltage415 V
Rated current33.6 A
L. R. Amperes198 A
LRC5.9x(Code G)
No load current10.8 A
Rated torque89.9 ft.lb
Locked rotor torque190 %
Breakdown torque229 %
Locked rotor time19s (cold) 11s (hot)
Moment of inertia (J)2.88 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingW-6
Rotation?Both (CW and CCW)
Approx. weight?343 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
90.0  90.1  90.2

Power factor

50%75%100%
0.72  0.82  0.85

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3002 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWith
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Horsepower
25HP
Enclosure
ODP
Frame
284JP/286JP
