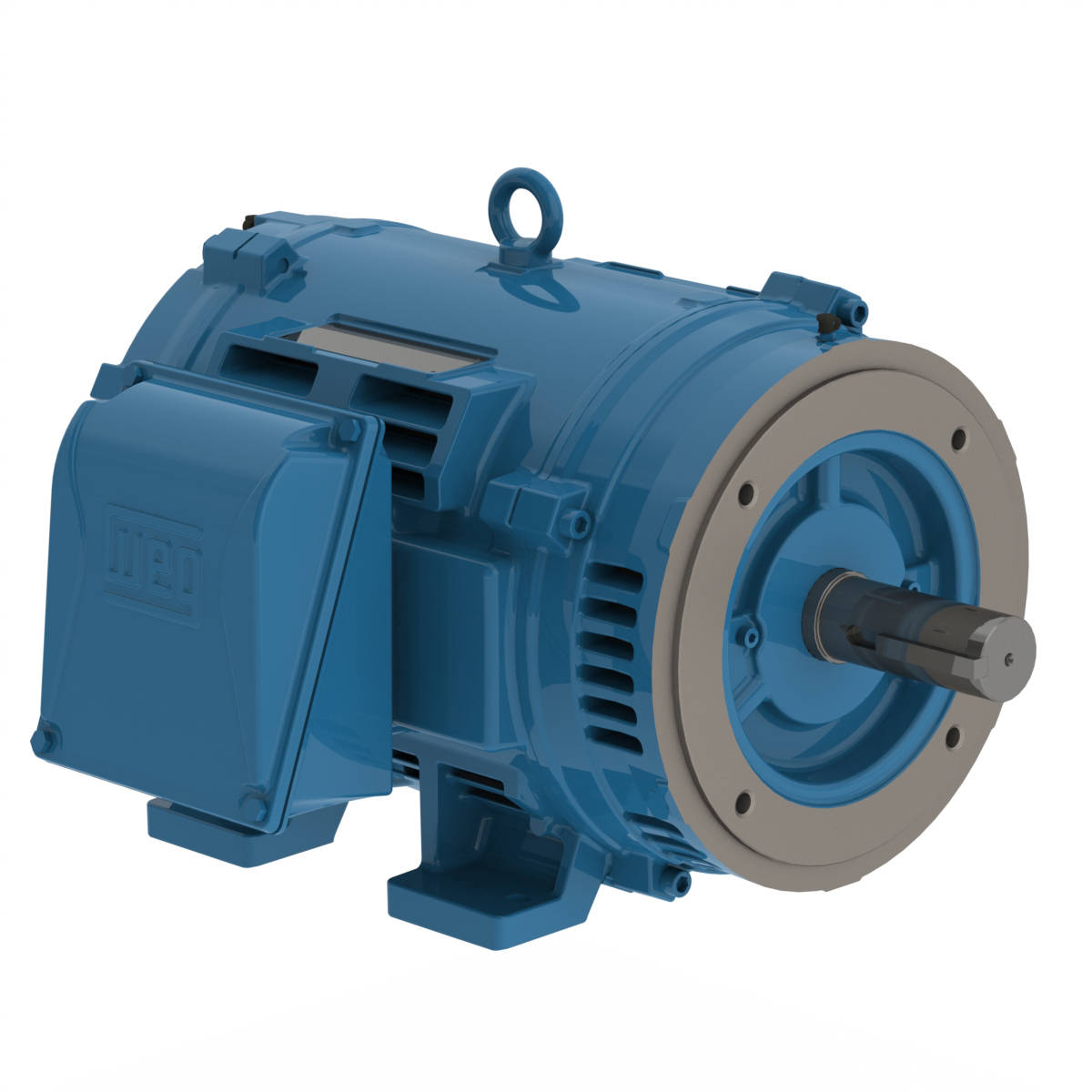

02518OT3V284TC-W40 WEG 25HP, General Purpose Electric Motor, 1800RPM
Enlarge Photo

Product ID: 02518OT3V284TC-W40

02518OT3V284TC-W40 WEG 25HP, General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 02518OT3V284TC-W40

Selected accessories will also be added to cart
$1,998.05 / Each
Quantity:
IC01- ODP, IP23, 284TC Frame, 200/400VAC 60Hz 3 Phase, 14495153, NEMA Premium Efficiency, Foot Mounted, C-Face, Cast Iron Frame, 1-7/8" Keyed Shaft

Electric Motors

Frame284TC
Output25 HP (18.5 kW)
Number of Poles4
Frequency60 Hz
Rated speed1770 rpm
Slip1.67 %
Rated voltage200/400 V
Rated current67.8/33.9 A
L. R. Amperes427/214 A
LRC6.3x(Code G)
No load current23.9/12.0 A
Rated torque74.2 ft.lb
Locked rotor torque229 %
Breakdown torque270 %
Locked rotor time59s (cold) 33s (hot)
Moment of inertia (J)3.71 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?64.0 dB(A)
Approx. weight?356 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
93.0  93.6  93.6

Power factor

50%75%100%
0.69  0.80  0.84

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Horsepower
25HP
Enclosure
ODP
Frame
284TC
Input Voltage
200VAC
Input Voltage
400VAC
