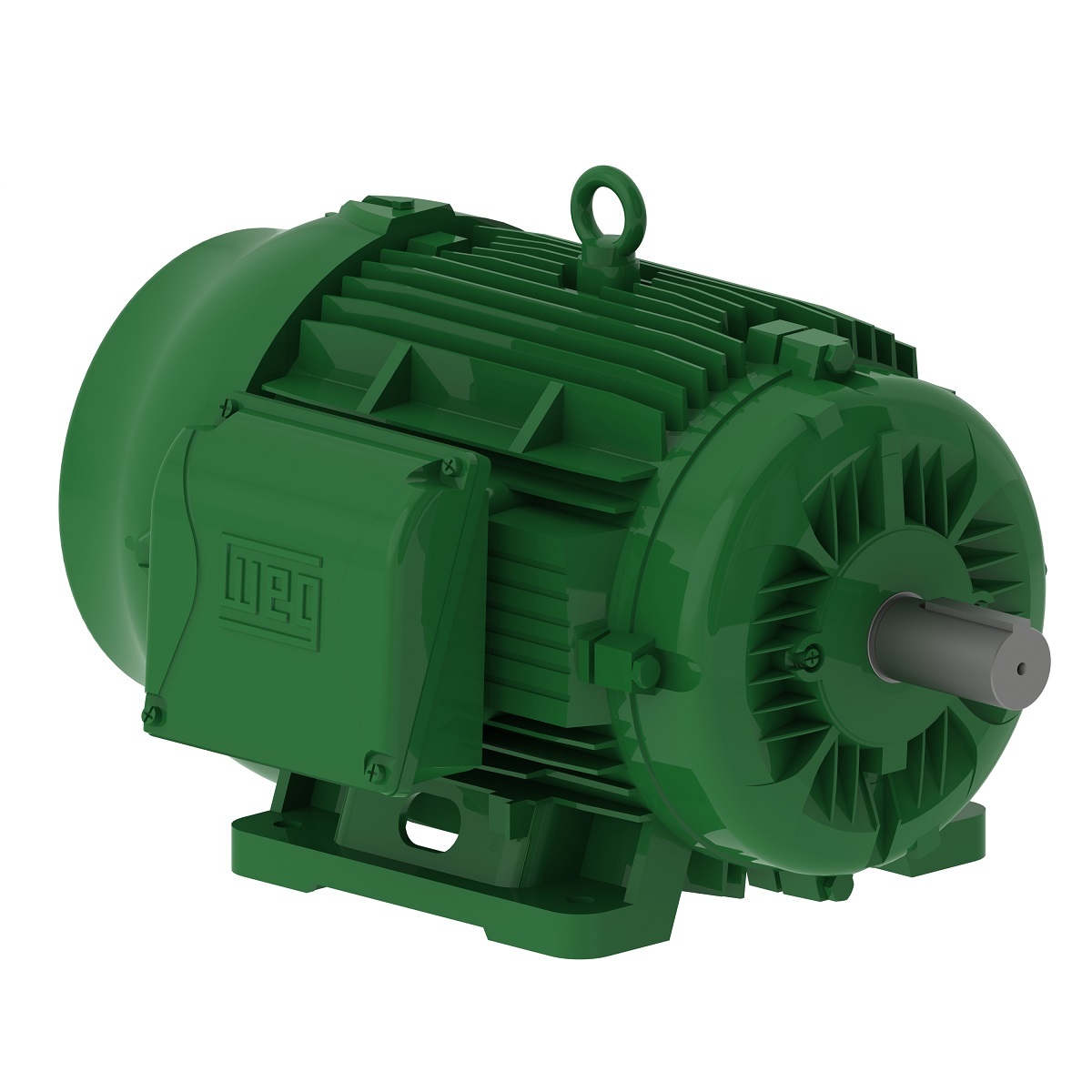

02536EG3E284TS-W22 WEG 25HP Electric Motor, 3600RPM
Enlarge Photo

Product ID: 02536EG3E284TS-W22

02536EG3E284TS-W22 WEG 25HP Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 02536EG3E284TS-W22

Selected accessories will also be added to cart
$2,473.50 / Each
Quantity:
IC411 - TEFC, IP55, 284TS/286TS Frame, 208-230/460/380VAC 50/60Hz 3 Phase, 12604499, Super Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-5/8" Keyed Shaft

Electric Motors

Frame 284/6TS
Output 25 HP (18.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3560 rpm
Slip 1.11 %
Rated voltage 230/460 V
Rated current 57.6/28.8 A
L. R. Amperes 507/253 A
LRC 8.8x(Code K)
No load current 22.0/11.0 A
Rated torque 36.9 ft.lb
Locked rotor torque 310 %
Breakdown torque 360 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 2.68 sq.ft.lb
Design A
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
Approx. weight³ 416 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.7  93.0  93.6

Power factor

50% 75% 100%
0.70  0.81  0.86
Frame 284/6TS
Output 25 HP (18.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2950 rpm
Slip 1.67 %
Rated voltage 380 V
Rated current 34.6 A
L. R. Amperes 277 A
LRC 8.0x(Code J)
No load current 10.0 A
Rated torque 44.5 ft.lb
Locked rotor torque 240 %
Breakdown torque 280 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 2.68 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 416 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.0  92.4  92.4

Power factor

50% 75% 100%
0.77  0.85  0.88
Frame 284/6TS
Output 25 HP (18.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2945 rpm
Slip 1.83 %
Rated voltage 400 V
Rated current 33.0 A
L. R. Amperes 264 A
LRC 8.0x(Code J)
No load current 11.5 A
Rated torque 44.6 ft.lb
Locked rotor torque 260 %
Breakdown torque 320 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 2.68 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 416 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.4  93.0  93.0

Power factor

50% 75% 100%
0.74  0.83  0.87
Frame 284/6TS
Output 25 HP (18.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2960 rpm
Slip 1.33 %
Rated voltage 415 V
Rated current 32.2 A
L. R. Amperes 283 A
LRC 8.8x(Code K)
No load current 12.0 A
Rated torque 44.4 ft.lb
Locked rotor torque 290 %
Breakdown torque 340 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 2.68 sq.ft.lb
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 416 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.0  92.8  93.0

Power factor

50% 75% 100%
0.71  0.81  0.86

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 1 1/2"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 6002 203A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
