/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/W22 General Purpose, TEFC/Foot Mount/02536ET3E284TS-W22 WEG 25HP Severe Duty Electric Motor, 3600RPM

Product ID: 02536ET3E284TS-W22

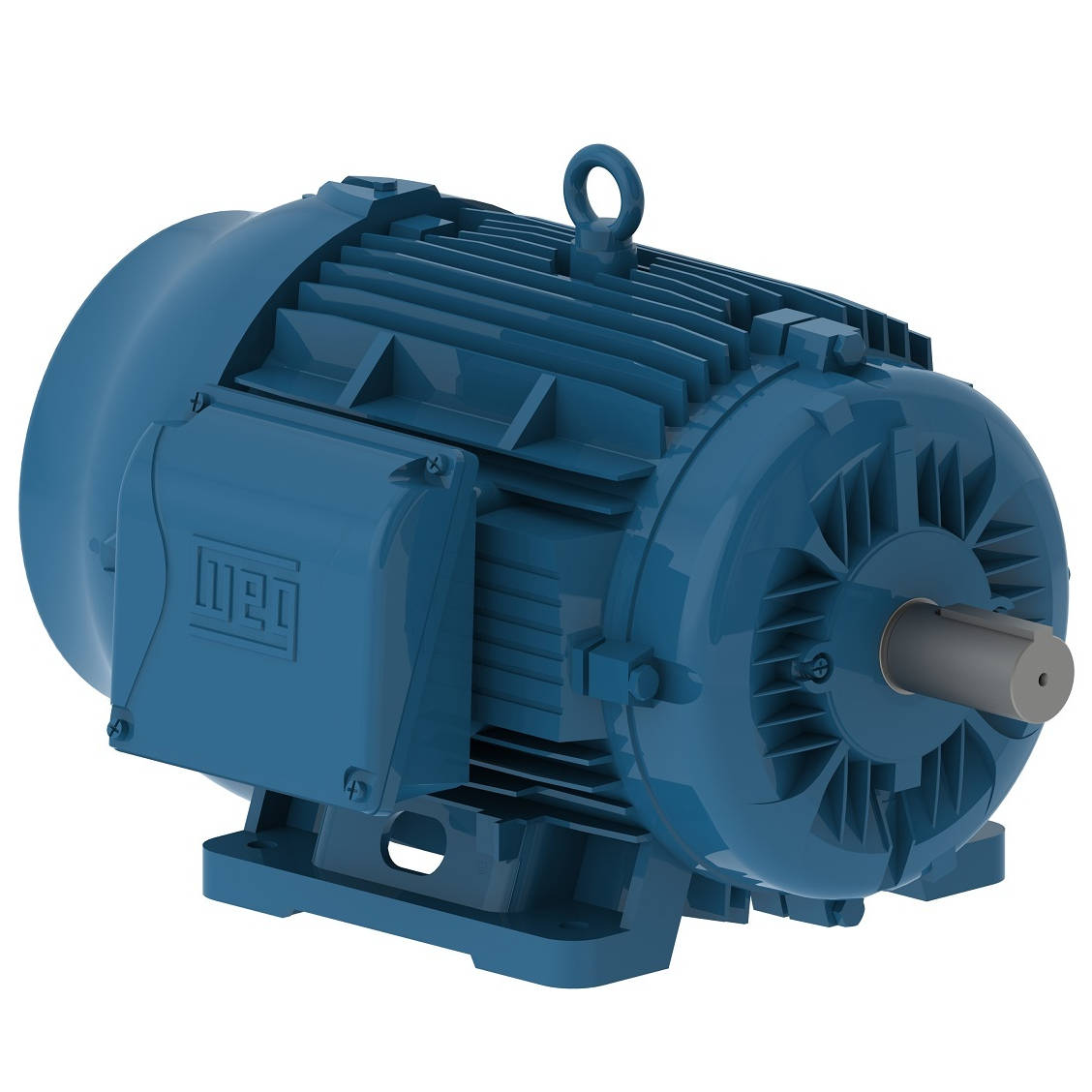

02536ET3E284TS-W22 WEG 25HP Severe Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 02536ET3E284TS-W22

Selected accessories will also be added to cart

$2,668.22 / Each

Quantity:

IC411-TEFC, IP55, 284TS/286TS Frame, 208-230/460VAC 60Hz 3 Phase, 12447102, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-5/8" Keyed Shaft

Electric Motors

Frame	284/6TS
Output	25 HP (18.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3535 rpm
Slip	1.81 %
Rated voltage	208-230/460 V
Rated current	63.0-57.0/28.5 A
L. R. Amperes	397-359/180 A
LRC	6.3x(Code G)
No load current	12.9-15.0/7.50 A
Rated torque	36.6 ft.lb
Locked rotor torque	200 %
Breakdown torque	250 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	2.69 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	72.0 dB(A)
Approx. weight?	378 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.7	91.7

Power factor

50%	75%	100%
0.82	0.87	0.89

Frame	284/6TS
Output	20 HP (15 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2930 rpm
Slip	2.33 %
Rated voltage	380 V
Rated current	27.6 A
L. R. Amperes	171 A
LRC	6.2x(Code G)
No load current	7.40 A
Rated torque	35.4 ft.lb
Locked rotor torque	200 %
Breakdown torque	240 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	2.69 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	67.0 dB(A)
Approx. weight?	378 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	90.7	91.9

Power factor

50%	75%	100%
0.79	0.87	0.90

Frame	284/6TS
Output	20 HP (15 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2940 rpm
Slip	2.00 %
Rated voltage	400 V
Rated current	26.5 A
L. R. Amperes	183 A
LRC	6.3x(Code G)
No load current	7.90 A
Rated torque	35.2 ft.lb
Locked rotor torque	229 %
Breakdown torque	280 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	2.69 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	67.0 dB(A)
Approx. weight?	378 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.3	91.1	91.9

Power factor

50%	75%	100%
0.78	0.86	0.89

Frame	284/6TS
Output	20 HP (15 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2945 rpm
Slip	1.83 %
Rated voltage	415 V
Rated current	25.8 A
L. R. Amperes	191 A
LRC	6.3x(Code G)
No load current	8.30 A
Rated torque	35.2 ft.lb
Locked rotor torque	240 %
Breakdown torque	300 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	2.69 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	67.0 dB(A)
Approx. weight?	378 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.8	91.1	91.9

Power factor

50%	75%	100%
0.75	0.85	0.88

Frame	284/6TS
Output	25 HP (18.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2910 rpm
Slip	3.00 %
Rated voltage	380 V
Rated current	34.9 A
L. R. Amperes	171 A
LRC	6.3x(Code G)
No load current	7.40 A
Rated torque	44.5 ft.lb
Locked rotor torque	160 %
Breakdown torque	190 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	2.69 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	67.0 dB(A)
Approx. weight?	378 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	90.2	89.5

Power factor

50%	75%	100%
0.85	0.89	0.90

Frame	284/6TS
Output	25 HP (18.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2920 rpm
Slip	2.67 %
Rated voltage	400 V
Rated current	33.3 A
L. R. Amperes	183 A
LRC	6.3x(Code G)
No load current	7.90 A
Rated torque	44.4 ft.lb
Locked rotor torque	180 %
Breakdown torque	220 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	2.69 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	67.0 dB(A)
Approx. weight?	378 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.0	90.2

Power factor

50%	75%	100%
0.84	0.88	0.89

Frame	284/6TS
Output	25 HP (18.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2930 rpm
Slip	2.33 %
Rated voltage	415 V
Rated current	31.8 A
L. R. Amperes	191 A
LRC	6.3x(Code G)
No load current	8.30 A
Rated torque	44.2 ft.lb
Locked rotor torque	190 %
Breakdown torque	240 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	2.69 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	67.0 dB(A)
Approx. weight?	378 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.0	91.0

Power factor

50%	75%	100%
0.82	0.87	0.89

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
