/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/W22 General Purpose, TEFC/Foot Mount/575V/02536ET3H284TS-W22 WEG 25HP Electric Motor,3600RPM

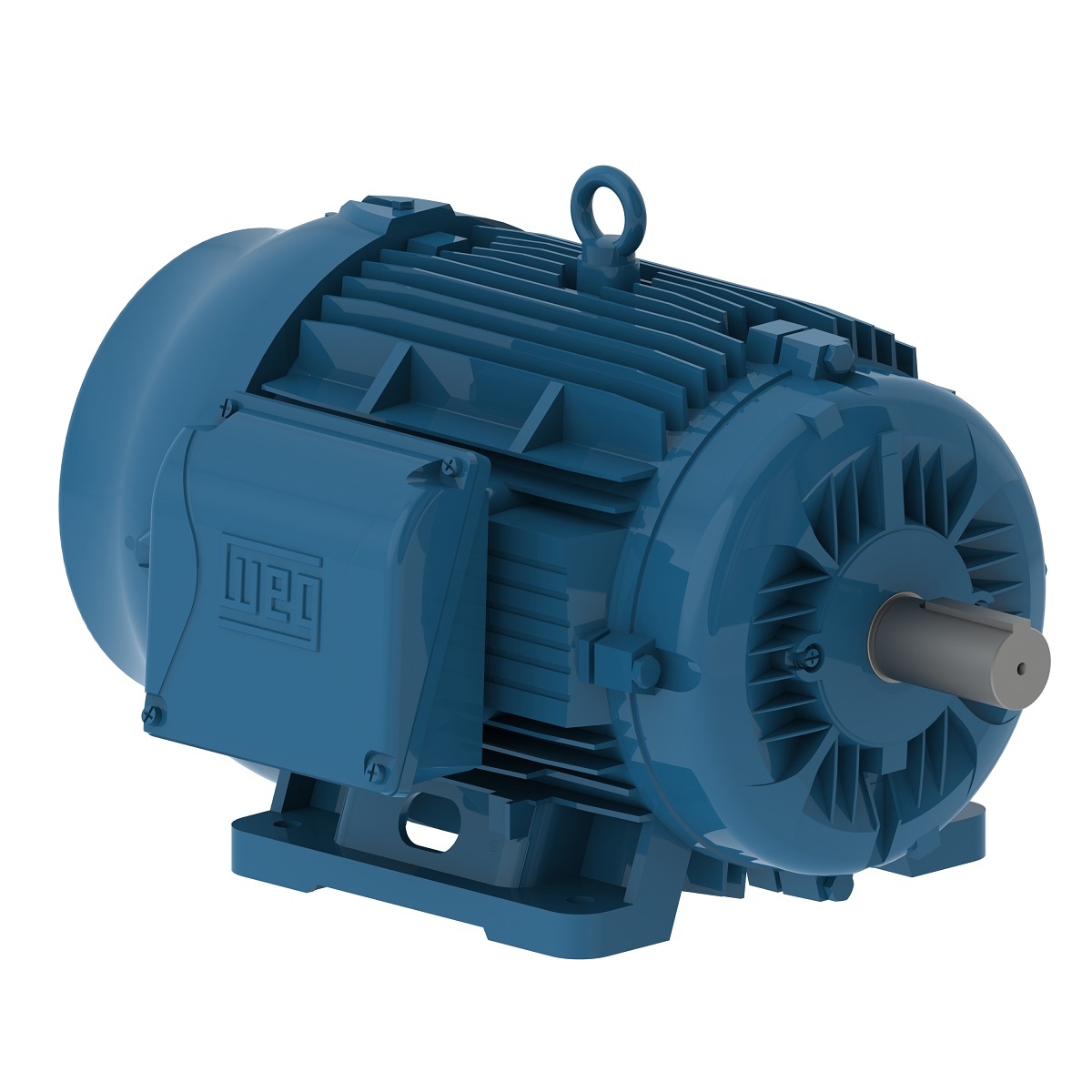

02536ET3H284TS-W22 WEG 25HP Electric Motor,3600RPM
Enlarge Photo

Product ID: 02536ET3H284TS-W22

02536ET3H284TS-W22 WEG 25HP Electric Motor,3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 02536ET3H284TS-W22

Selected accessories will also be added to cart
$2,668.22 / Each
Quantity:
IC411 - TEFC, IP55, 284TS/286TS Frame, 575VAC, 60Hz, 3 Phase

Electric Motors

Frame284/6TS
Output25 HP (18.5 kW)
Number of Poles2
Frequency60 Hz
Rated speed3535 rpm
Slip1.81 %
Rated voltage575 V
Rated current22.8 A
L. R. Amperes144 A
LRC6.3x(Code G)
No load current6.00 A
Rated torque36.6 ft.lb
Locked rotor torque200 %
Breakdown torque250 %
Locked rotor time30s (cold) 17s (hot)
Moment of inertia (J)2.69 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?72.0 dB(A)
Approx. weight?378 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.0  91.7  91.7

Power factor

50%75%100%
0.82  0.87  0.89

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)


Grounding LugsSingle
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Drip CoverWithout

Bearing details

 Drive EndNon Drive End
Bearing type6311 C3 6211 C3
SealingV'Ring V'Ring
Lubrication interval14000 h 17000 h
Lubricant amount18 g 11 g
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
216 lb 594 lb
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Application
Severe Duty
Horsepower
25HP
Enclosure
TEFC
Enclosure
TEFC
Input Voltage
575VAC
Frame
284TS/286TS
