/Products/Electric Motors/3 Phase/WEG/Compressor Duty/02536OT3E256T-S WEG 25HP Compressor Duty Electric Motor, 3600RPM

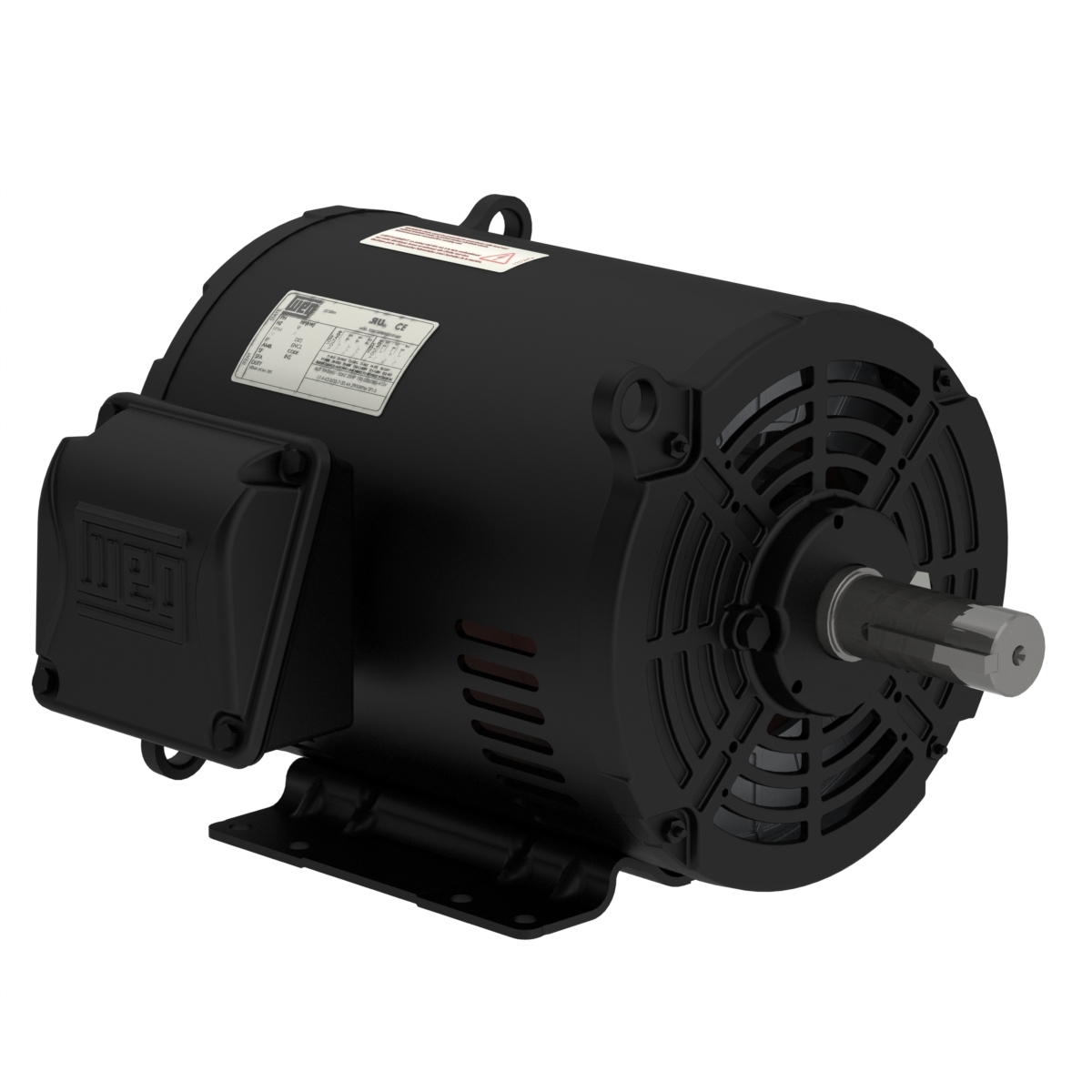

02536OT3E256T-S WEG 25HP Compressor Duty Electric Motor, 3600RPM
Enlarge Photo

Product ID: 02536OT3E256T-S

02536OT3E256T-S WEG 25HP Compressor Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 02536OT3E256T-S

Selected accessories will also be added to cart
$1,604.25 / Each
Quantity:
IC01 - ODP, 254/256T Frame, 208-230/460VAC 3 Phase 50/60Hz, 12707482, Rolled Steel NEMA Premium Efficiency, 1-5/8" Keyed Shaft
  • 190/380 V 50 Hz 2P
  • 220/415 V 50 Hz 2P

Electric Motors

Frame 254/6T
Output 25 HP (18.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3530 rpm
Slip 1.94 %
Rated voltage 208-230/460 V
Rated current 64.3-58.2/29.1 A
L. R. Amperes 405-367/183 A
LRC 6.3x(Code G)
No load current 19.7-22.8/11.4 A
Rated torque 36.7 ft.lb
Locked rotor torque 180 %
Breakdown torque 290 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 0.9155 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 70.0 dB(A)
Approx. weight³ 179 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.0  91.7  91.7

Power factor

50% 75% 100%
0.73  0.83  0.87
Frame 254/6T
Output 25 HP (18.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2905 rpm
Slip 3.17 %
Rated voltage 190/380 V
Rated current 70.6/35.3 A
L. R. Amperes 374/187 A
LRC 5.3x(Code E)
No load current 22.3/11.2 A
Rated torque 44.6 ft.lb
Locked rotor torque 150 %
Breakdown torque 220 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.9155 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 179 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.1  90.3  88.5

Power factor

50% 75% 100%
0.80  0.87  0.90
Frame 254/6T
Output 25 HP (18.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2920 rpm
Slip 2.67 %
Rated voltage 220/415 V
Rated current 62.2/33.0 A
L. R. Amperes 392/208 A
LRC 6.3x(Code G)
No load current 26.5/14.1 A
Rated torque 44.4 ft.lb
Locked rotor torque 180 %
Breakdown torque 260 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 0.9155 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 179 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
90.6  90.6  89.6

Power factor

50% 75% 100%
0.71  0.82  0.87

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole 1.732"
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting

Grounding Lugs Superior
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap No-Without Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without

 Loading...

 Loading...

 Loading...

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6309 Z C3  6208 Z C3
Sealing Without Bearing Seal  Without Bearing Seal
Lubrication interval 20000 h  20000 h
Lubricant amount 13 g  8 g
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
471 lb  650 lb
