02536ET3E256HP-W22 WEG 25HP P-Base Pump Electric Motor, 3600RPM

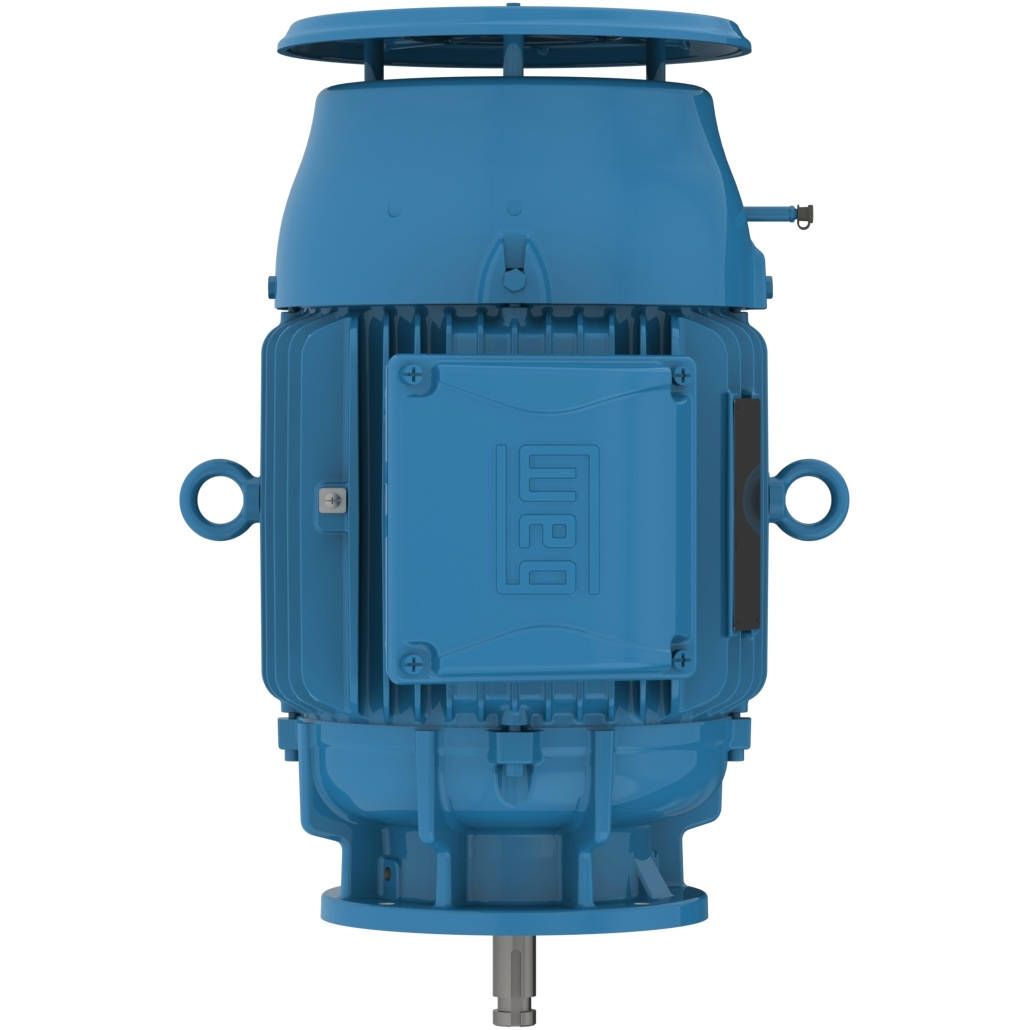

Enlarge Photo

Product ID: 02536ET3E256HP-W22

02536ET3E256HP-W22 WEG 25HP P-Base Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 02536ET3E256HP-W22

Selected accessories will also be added to cart
$2,969.04 / Each
Quantity:
IC411 - TEFC, IP55, 256HP Frame, 208-230/460/380VAC 50/60Hz 3 Phase, 14427695, NEMA Premium Efficiency, Footless, Cast Iron Frame, 1-1/8" Shaft

Electric Motors

Frame256HP
Output25 HP (18.5 kW)
Number of Poles2
Frequency60 Hz
Rated speed3520 rpm
Slip2.22 %
Rated voltage208-230/460 V
Rated current63.0-57.0/28.5 A
L. R. Amperes391-353/177 A
LRC6.2x(Code G)
No load current14.1-16.4/8.20 A
Rated torque37.3 ft.lb
Locked rotor torque220 %
Breakdown torque280 %
Locked rotor time28s (cold) 16s (hot)
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Noise level?72.0 dB(A)
Approx. weight?309 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.0  91.5  91.7

Power factor

50%75%100%
0.82  0.87  0.89

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWith
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Horsepower
25HP
Enclosure
TEFC
Enclosure
TEFC
Frame
256HP
