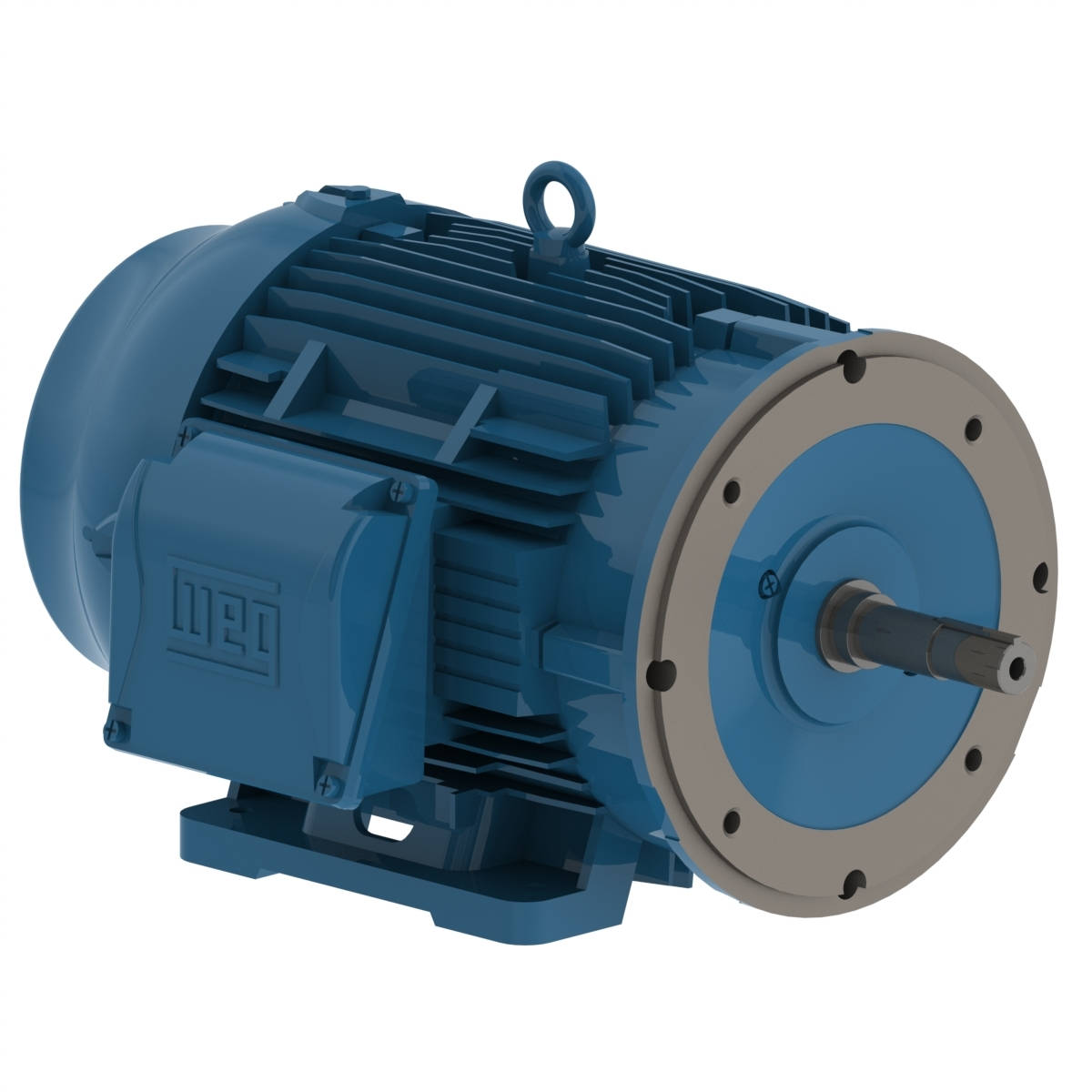

02536ET3E256JM-W22 WEG 25HP JM Close Coupled Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 02536ET3E256JM-W22

02536ET3E256JM-W22 WEG 25HP JM Close Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 02536ET3E256JM-W22

Selected accessories will also be added to cart
$2,875.59 / Each
Quantity:
IC411 - TEFC, IP55, 254JM/256JM Frame, 208-230/460VAC 60Hz 3 Phase, 13523068, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Electric Motors

Frame254/6JM
Output25 HP (18.5 kW)
Number of Poles2
Frequency60 Hz
Rated speed3515 rpm
Slip2.36 %
Rated voltage208-230/460 V
Rated current62.2-56.3/28.1 A
L. R. Amperes398-360/180 A
LRC6.4x(Code G)
No load current11.6-13.5/6.75 A
Rated torque37.3 ft.lb
Locked rotor torque180 %
Breakdown torque229 %
Locked rotor time32s (cold) 18s (hot)
Moment of inertia (J)1.91 sq.ft.lb
DesignB
Insulation ClassF
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?72.0 dB(A)
Approx. weight?326 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.0  91.7  91.7

Power factor

50%75%100%
0.83  0.88  0.90

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Pump SealMechanical Seal
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Application
Close Coupled Pump
Horsepower
25HP
Enclosure
TEFC
Enclosure
TEFC
Input Voltage
208VAC
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
230VAC
Input Voltage
460VAC
Input Voltage
460VAC
Frame
254JM/256JM
