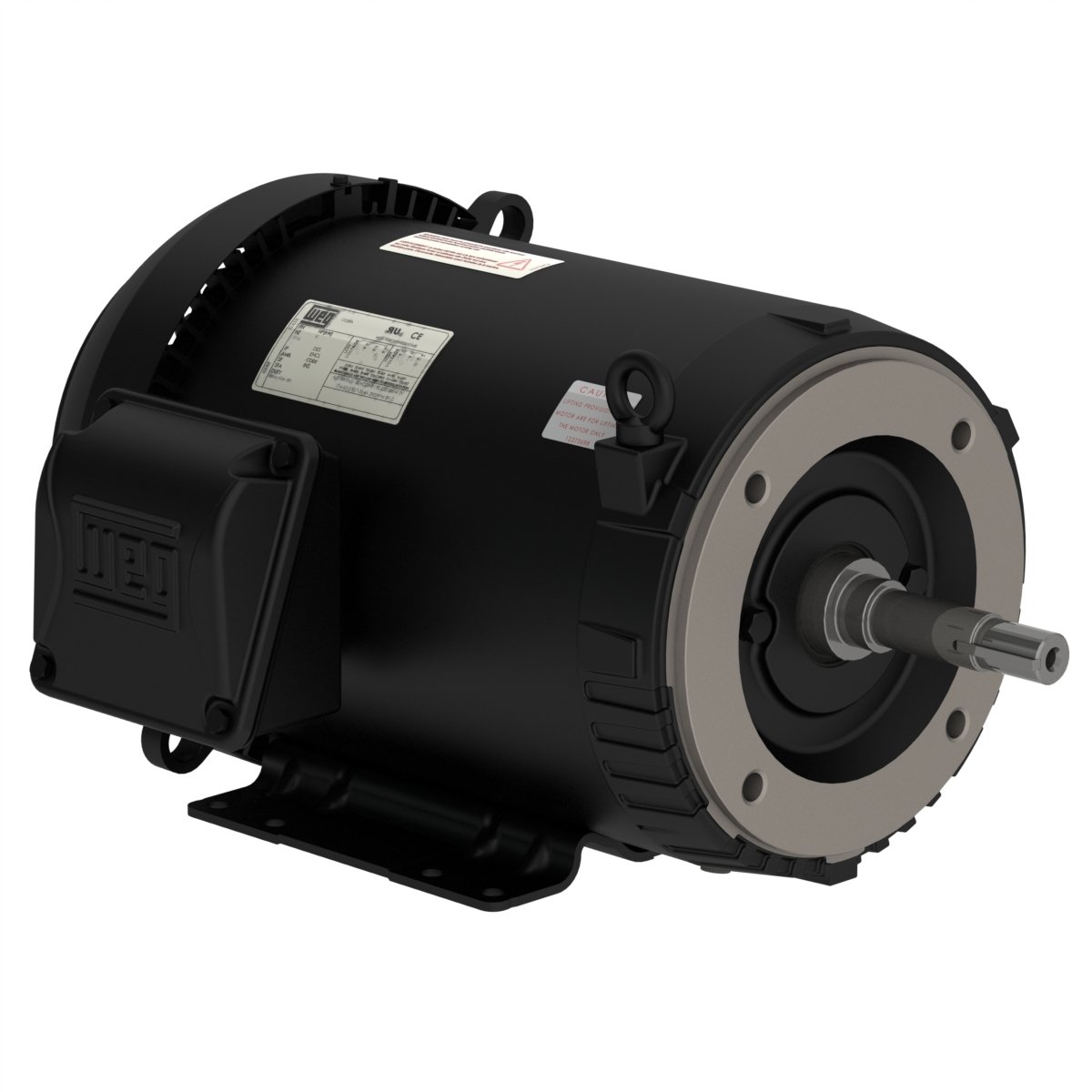

02536ET3V256JM-S WEG 25HP JM Close Coupled Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 02536ET3V256JM-S

02536ET3V256JM-S WEG 25HP JM Close Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 02536ET3V256JM-S

Selected accessories will also be added to cart
$2,875.59 / Each
Quantity:
IC411 - TEFC, IP55, 254JM/256JM Frame, 200/400VAC 3-Phase 60Hz, 14478902, Foot Mount, Rolled Steel, NEMA Premium Efficiency

Electric Motors

Frame254/6JM
Output25 HP (18.5 kW)
Number of Poles2
Frequency60 Hz
Rated speed3530 rpm
Slip1.94 %
Rated voltage200/400 V
Rated current65.5/32.8 A
L. R. Amperes544/272 A
LRC8.3x(Code J)
No load current23.1/11.6 A
Rated torque36.7 ft.lb
Locked rotor torque240 %
Breakdown torque340 %
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)1.31 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?75.0 dB(A)
Approx. weight?220 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.0  91.7  91.7

Power factor

50%75%100%
0.77  0.85  0.89

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box hole1.732"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSuperior
Fan Cover materialRolled Steel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Application
Close Coupled Pump
Horsepower
25HP
Enclosure
TEFC
Enclosure
TEFC
Frame
254JM/256JM
Input Voltage
200VAC
Input Voltage
400VAC
